Sway-A-Way Swing Axle Spring Plate Set | VW Beetle & Karmann Ghia 1961–1968, 21-3/4" Torsion Bars | 1/4" Spring Steel, 2.93" Collar, Pair (SAW-4101)

Sway-A-Way Swing Axle Spring Plate Set — 2.93" Collar for 21-3/4" Torsion Bars (SAW-4101)

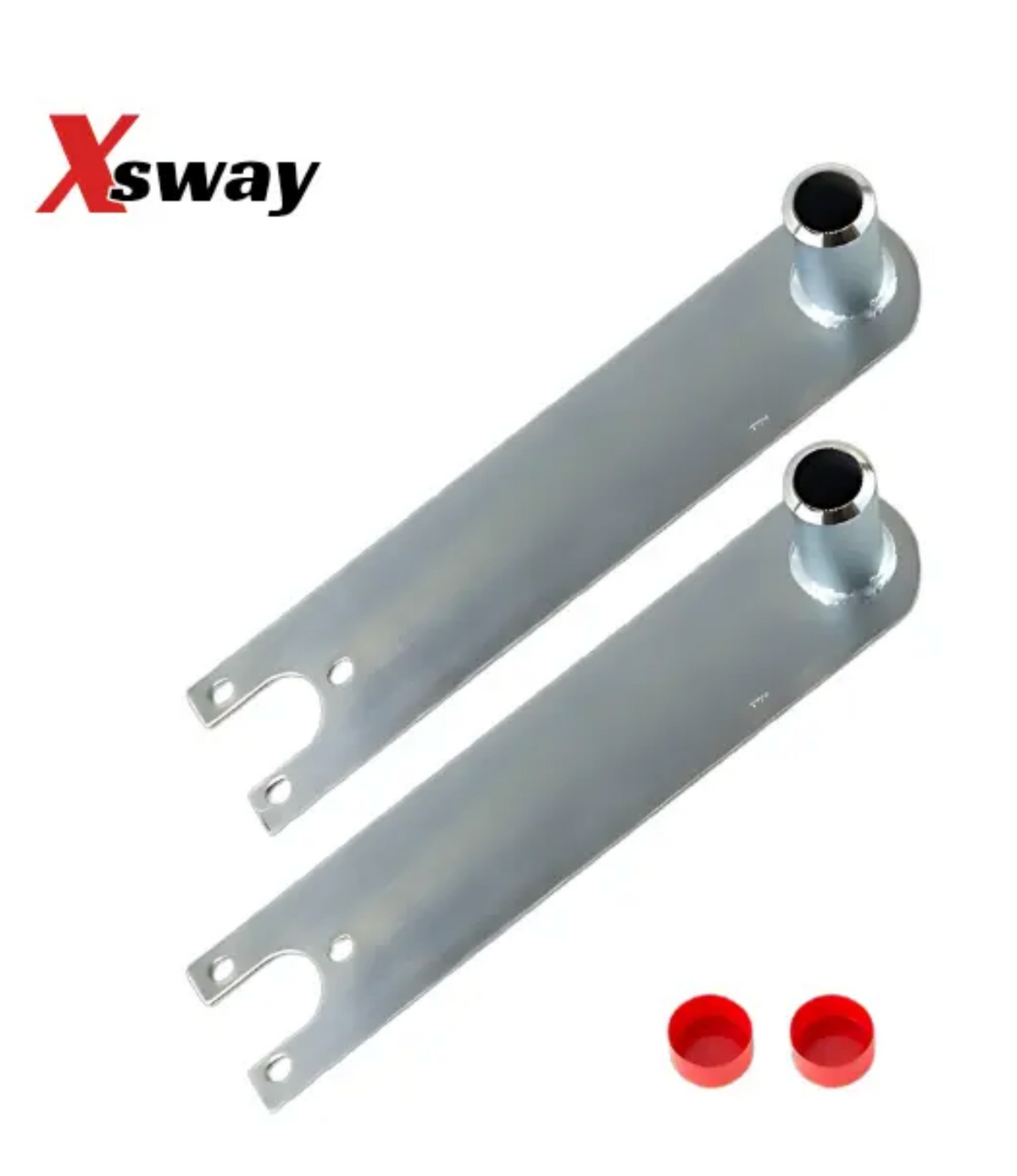

A factory swing-axle spring plate is stamped sheet steel. After fifty-plus years of carrying the back of the car, the plates flex, the bushings go soft, and the rear end starts to sag and wander. These Sway-A-Way standard swing axle spring plates replace them with 1/4" spring steel and a precision-welded splined collar, zinc plated for corrosion resistance and sold as a pair. This is the short 2.93" collar version — the one that matches the 21-3/4" rear torsion bars used under most 1961–1968 swing-axle Beetles and Karmann Ghias.

This is the "Short Non-Adjustable (4101 Standard)" spring plate set that King Performance sells, and it is made by Sway-A-Way in the USA.

Vehicle Fitment

• VW Beetle, swing axle — cars with 21-3/4" rear torsion bars (most 1961–1968)
• VW Karmann Ghia, swing axle — cars with 21-3/4" rear torsion bars (most 1961–1968)
• Not for: IRS cars (1969-on Beetle, Super Beetle) — they take the SAW-5200 series IRS plates
• Not for: cars on 24-11/16" or 26-9/16" bars — those need a longer collar (see the table below)

Measure before you order. Collar length and torsion bar length are a matched pair; the wrong collar will not reach the bar's splines. Pull a bar and measure it end to end, or send us your chassis number and we will confirm before anything ships.

Choose the Right Collar Length

Key Features & Benefits

• 1/4" spring steel plate — far stiffer than a stamped factory plate, so ride height and camber stay where you set them under load.
• Precision-welded splined collar — welded into the plate, not clamped, so there is no slop between plate and bar.
• Zinc plated for corrosion resistance in the wheel well.
• Sold as a pair so both sides match.
• Made in USA by Sway-A-Way.

Technical Specifications

You May Also Need

• Torsion bars: upgrade while the plates are off — Sway-A-Way 21-3/4" torsion bar set in 24, 26, 28 or 30mm, or 21mm / 22mm.
• Spring plate grommets: SAW-3011 knobby or SAW-3013 round, 1-7/8" ID.
• Spring plate caps: EMPI x Foose billet caps for 1960–1968 swing axle.

Installation Notes

• Support the car on jack stands under the frame horns with the wheels chocked. Never work under a car held up only by a jack.
• Respect the stored energy. A spring plate resting on its stop holds the full preload of the torsion bar. Keep hands and head out of its swing arc when you pry it off the stop.
• Torsion bars are side-specific (marked L and R). Keep them on their original sides.
• Set ride height with the car loaded. Index the splines, put the car's weight back on the wheels, then measure. Expect to do it twice.
• On a swing axle, ride height and rear camber move together — check camber as you lower.

Frequently Asked Questions

• What torsion bars do these plates fit? 21-3/4" long rear torsion bars, the length used under most 1961–1968 swing-axle Beetles and Ghias.
• Are these adjustable? No. These are the standard fixed plates; ride height is set by indexing the splines. The adjustable version for 21-3/4" bars is SAW-5101.
• What is the collar length? 2.93".
• How thick is the plate? 1/4" spring steel.
• Will they fit my 1969 or later Beetle? No. 1969-on Beetles and Super Beetles are IRS and use IRS spring plates.
• Do they come as a pair? Yes, one left and one right.
• Who makes them? Sway-A-Way, in the USA. This is the same 4101 set King Performance sells.
