King Performance Billet Shift Coupler — Early or Late, 7075-T651 Anodized | Air-Cooled VW Beetle, Ghia, Bus, Type 3 & Thing 1950–1979 (CH16 / CH15)
Couldn't load pickup availability
King Performance Billet Shift Coupler — Early & Late Style Air-Cooled VW (7075-T651 Aluminum)
Short answer: Beetles through 1964 (chassis 5 911 560), Ghias through 1965, Buses 1955–1967 and Type 3 through 1964 (chassis 221 974) take the Early (CH16) coupler. Beetles 1965–1979, Ghias 1965–1974, Buses 1968–1979, Type 3 1965–1973 and the 1973–1974 Thing take the Late (CH15) coupler.
A worn rubber or plastic factory coupler is the number-one cause of a sloppy, vague shifter. King Performance machines these couplers from aircraft-grade 7075-T651 billet aluminum and black hard anodizes them for a crisp, direct shift feel with nothing to wear out. Made in the USA.
Which year do I need?
| Year option | Part # | Notes |
|---|---|---|

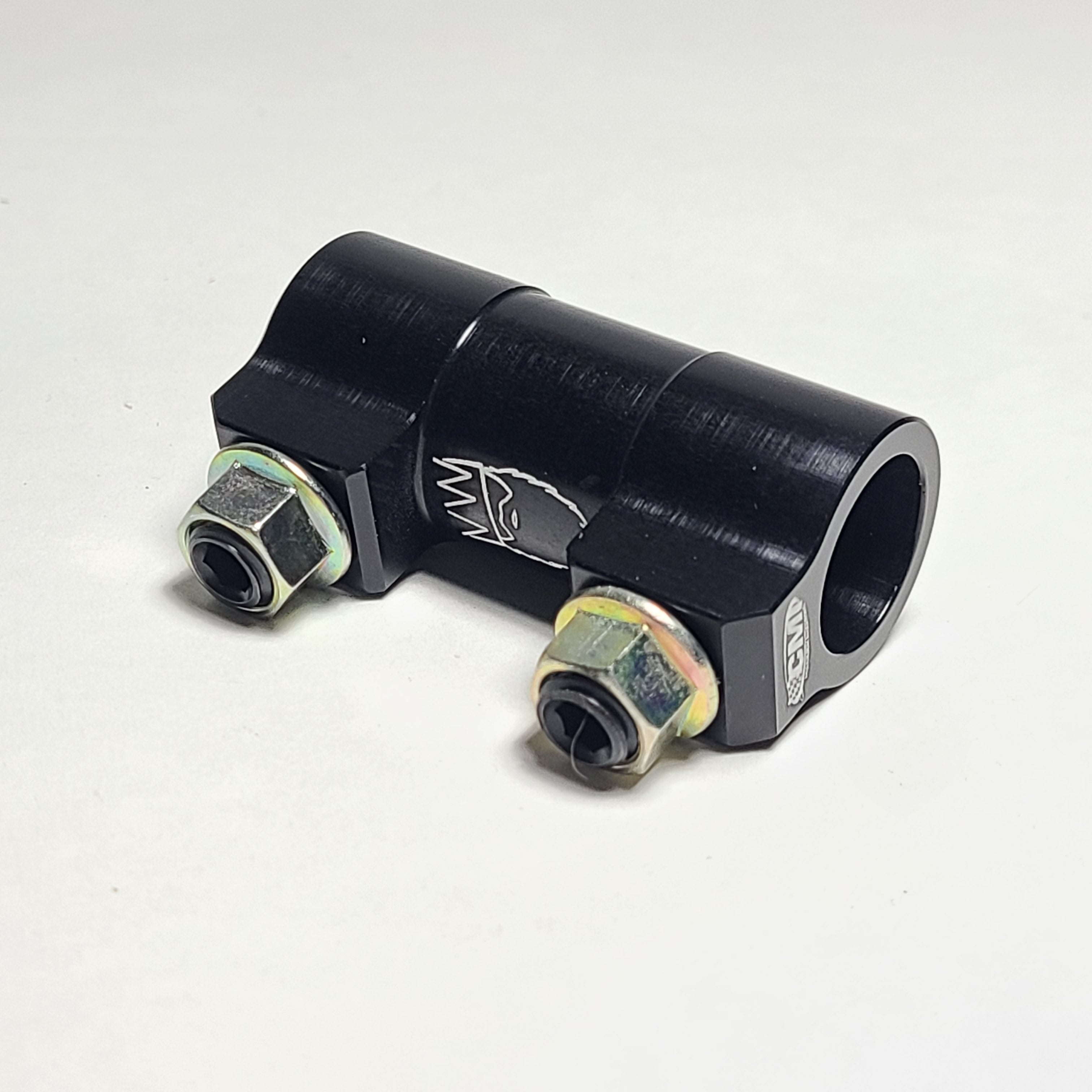

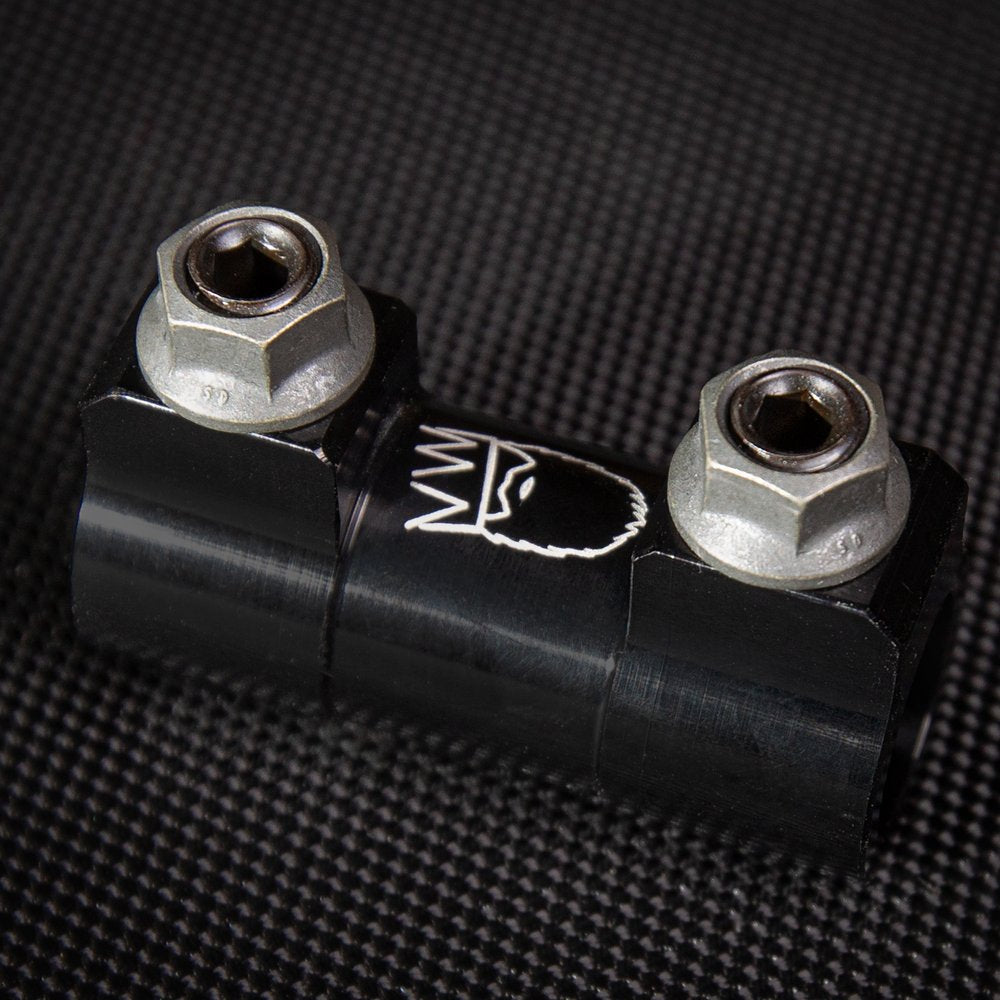

| 1950–1967 (Early, CH16) | CH16 | Beetle 1950–1964, Ghia 1956–1965, Bus 1955–1967, Type 3 1961–1964. Cone set screw + 8mm locking jet nuts. |

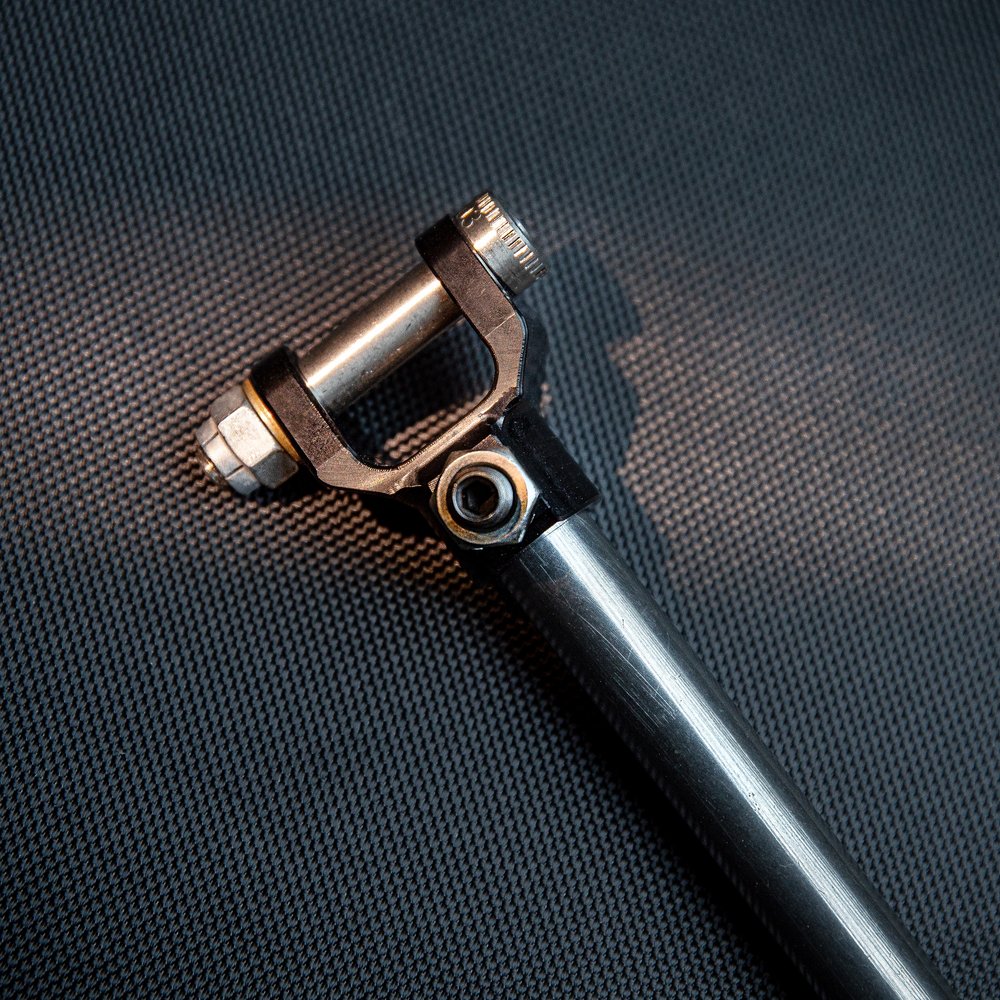

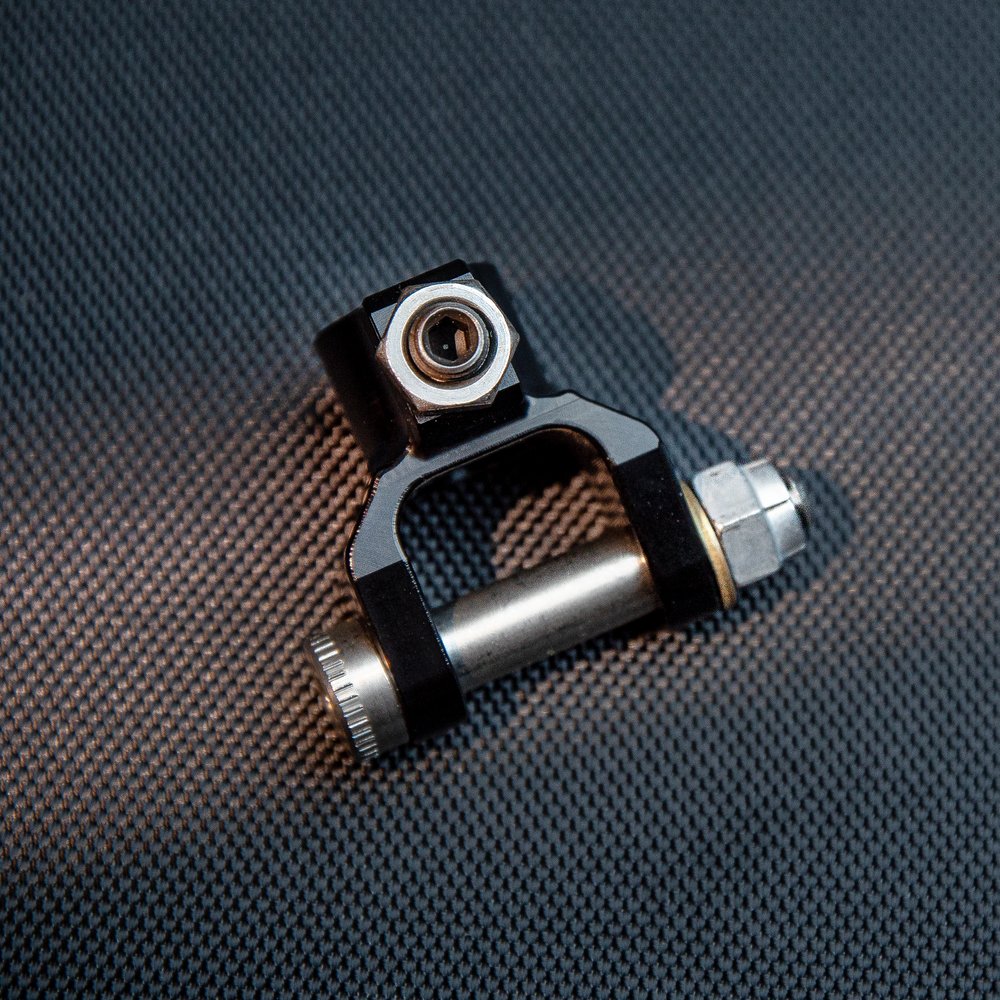

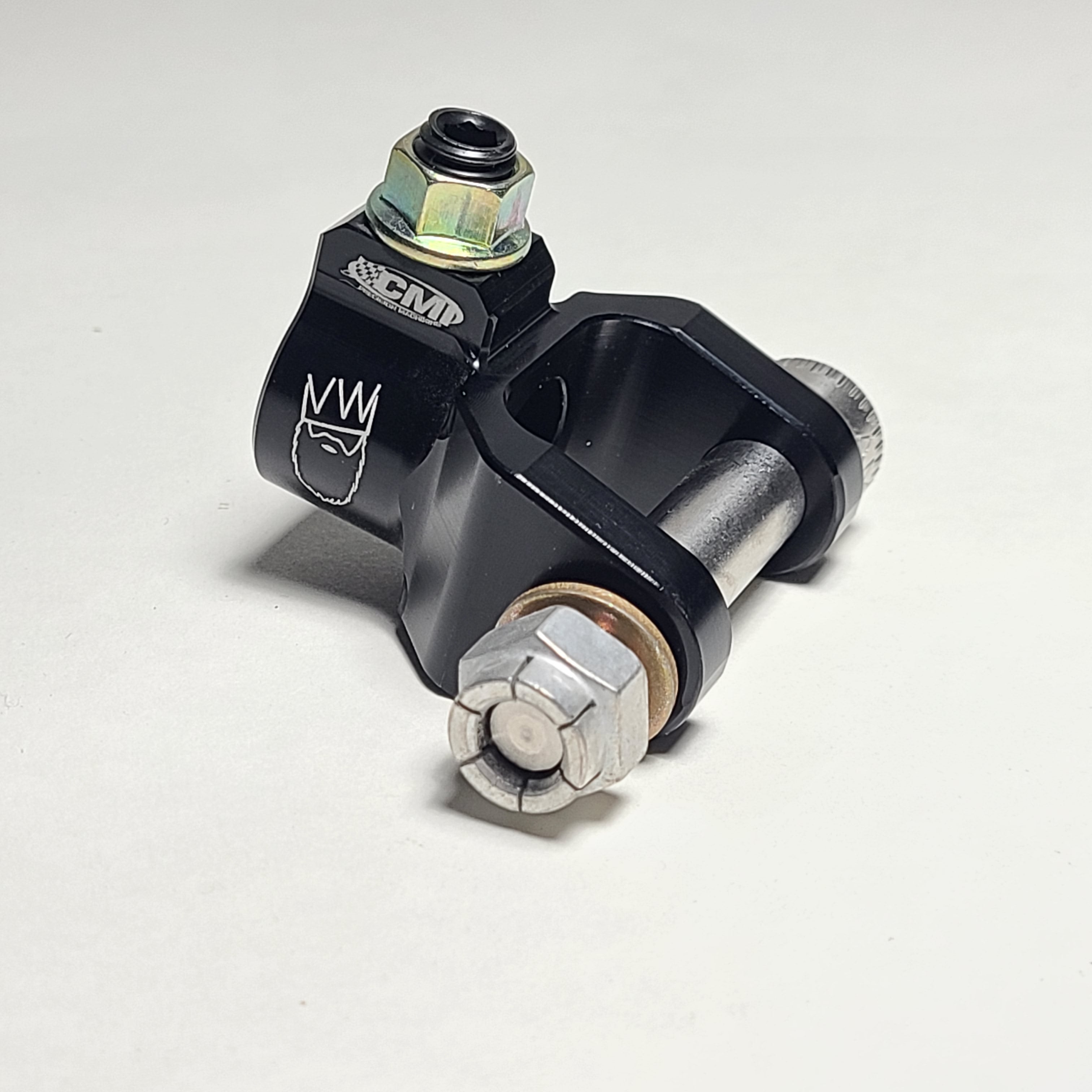

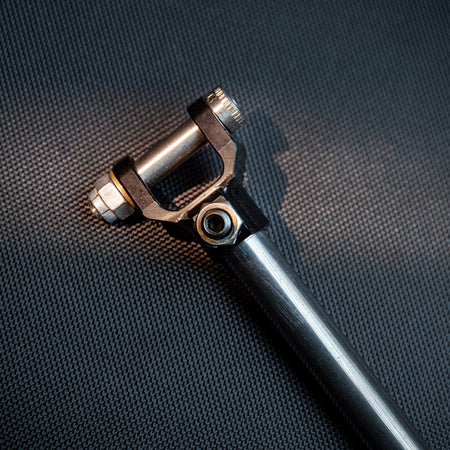

| 1965–1979 (Late, CH15) | CH15 | Beetle 1965–1979, Ghia 1965–1974, Bus 1968–1979, Type 3 1965–1973, Thing 1973–1974. Shoulder bolt hardware; lifetime breakage guarantee. |
Key Features & Benefits
- 7075-T651 aluminum: High-strength billet construction, lighter and stronger than OEM.
- Black hard anodized: Durable, corrosion-resistant finish.
- Precision shifting: Eliminates the slop of worn stock couplers.
- Hardware included for each style.
- Made in the USA by King Performance; the late coupler is guaranteed for life against breakage.
Fitment
- VW Beetle: 1950–1964 through chassis 5 911 560 (Early CH16); 1965–1979 (Late CH15)
- VW Karmann Ghia: 1956–1965 (Early CH16); 1965–1974 (Late CH15)
- VW Type 2 Bus: 1955–1967 (Early CH16); 1968–1979 (Late CH15)
- VW Type 3 Notchback/Squareback/Fastback: 1961–1964 through chassis 221 974 (Early CH16); 1965–1973 (Late CH15)
- VW Thing (Type 181): 1973–1974 (Late CH15)
Does not fit: Auto-Stick (semi-automatic) transaxles or Vanagon. 1965 Ghias straddle the change — match the coupler to your shift rod end.
What else you need
For the best shift feel, replace the shift rod bushing while the linkage is apart: our Washburn's Snap-Lock Delrin Shift Bushing (CH01) — see the Tech Bench install guide. Browse Transaxle Components and Drivetrain & Transmission.
Technical Specifications
- Material: 7075-T651 aluminum, black hard anodized
- Early (CH16) hardware: Zinc-plated cone set screw and 8mm locking jet nuts, 10mm hex
- Late (CH15) hardware: Type 2 stainless shoulder bolt, Grade 8 AN washer and flex-top lock nut, cone point set screw with thin jam nut
- Part Numbers: CH16 (early), CH15 (late)
Frequently asked questions
- Which one fits my 1966 Beetle? The 1965–1979 (Late, CH15) coupler. A 1962 Beetle takes the 1950–1967 (Early, CH16).
- Which one fits my 1967 Bus? The Early (CH16) — Buses changed to the late style for 1968.
- What material is it made from? Aircraft-grade 7075-T651 billet aluminum, black hard anodized.
- Is there a warranty? The late coupler (CH15) is guaranteed for life against breakage.
- What hardware is included? Early: cone set screw and 8mm locking jet nuts. Late: stainless shoulder bolt, Grade 8 AN washer, flex-top lock nut and cone point set screw with jam nut.
- Where is it made? In the USA by King Performance.
- What is the part number? Early style is CH16; late style is CH15 (King Performance late coupler KP-798211).
