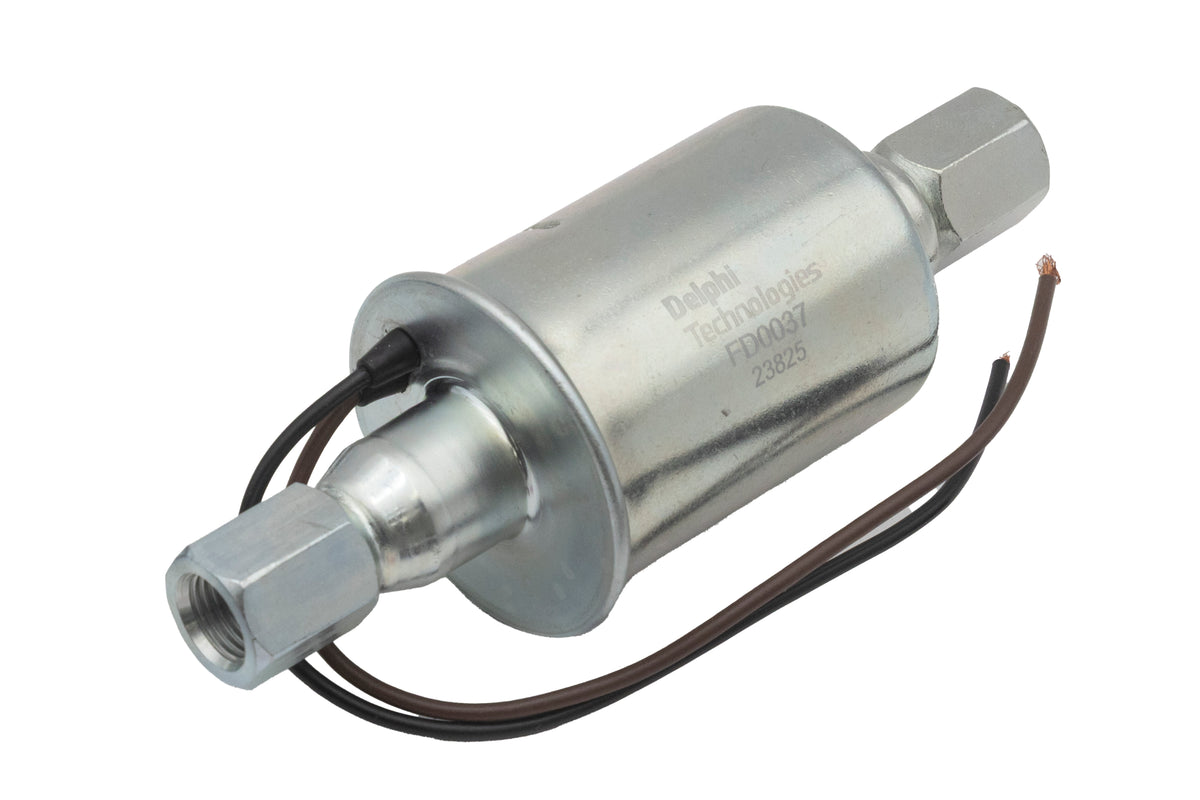

EMPI 12V Inline Electric Fuel Pump with Filter — 15 GPH, 2–4 PSI, No Regulator Needed | Carbureted VW Beetle, Bus & Buggy (41-2604-7)

EMPI 12V Inline Electric Fuel Pump with Filter — 15 GPH, 2–4 PSI (41-2604-7)

A worn mechanical pump, vapor lock on a hot day, or a buggy with the tank nowhere near the engine all lead to the same fix: a low-pressure electric pump that pushes fuel from the tank. EMPI 41-2604-7 is a 12V inline pump with a filter that delivers 15 GPH at 2.0–4.0 PSI.

The pressure is what makes it suit a carburetor. At 2–4 PSI it won't push fuel past the float needle, so you don't need a regulator on a stock-style carburetor. It has 5/16 in. ports for standard VW fuel hose and comes with the filter and mounting hardware.

Key Features & Benefits

• 15 GPH at 2–4 PSI: carburetor pressure with no regulator needed.
• Inline filter included: protects the pump and the carburetor from tank debris.
• 5/16 in. inlet/outlet: takes standard VW fuel hose.
• 12V, 6V compatible: works on converted or original 6-volt cars, per EMPI.
• Made in USA: per the EMPI price file (COO US).
• Genuine EMPI: sold by Washburn's Metal.

Fitment

• Application (EMPI price-file data for the identical-spec 41-2604-0): VW Type 1 Beetle 12/1947–12/1986; VW Bus (T1) 01/1950–07/1967; VW Bus (T2) 08/1967–07/1979; VW Buggy 08/1963–07/1971; VW Baja 08/1968–12/1986. Carbureted engines only.
• CONFIRMED spec (EMPI, 41-2604-7 description): 12V inline pump with filter, 15 GPH at 2.0–4.0 PSI.
• NOT CONFIRMED: Fuel-injected engines (1975-and-later US Beetle and Bus, Type 3 and Type 4 FI), and high-flow race carburetors that need more than 15 GPH. The price file has no fitment text for the -7 SKU itself.

Technical Specifications

• Part Number: EMPI 41-2604-7
• Voltage: 12V (EMPI: 6V compatible)
• Flow: 15 GPH
• Pressure: 2.0–4.0 PSI (no regulator required)
• Inlet / Outlet: 5/16 in.

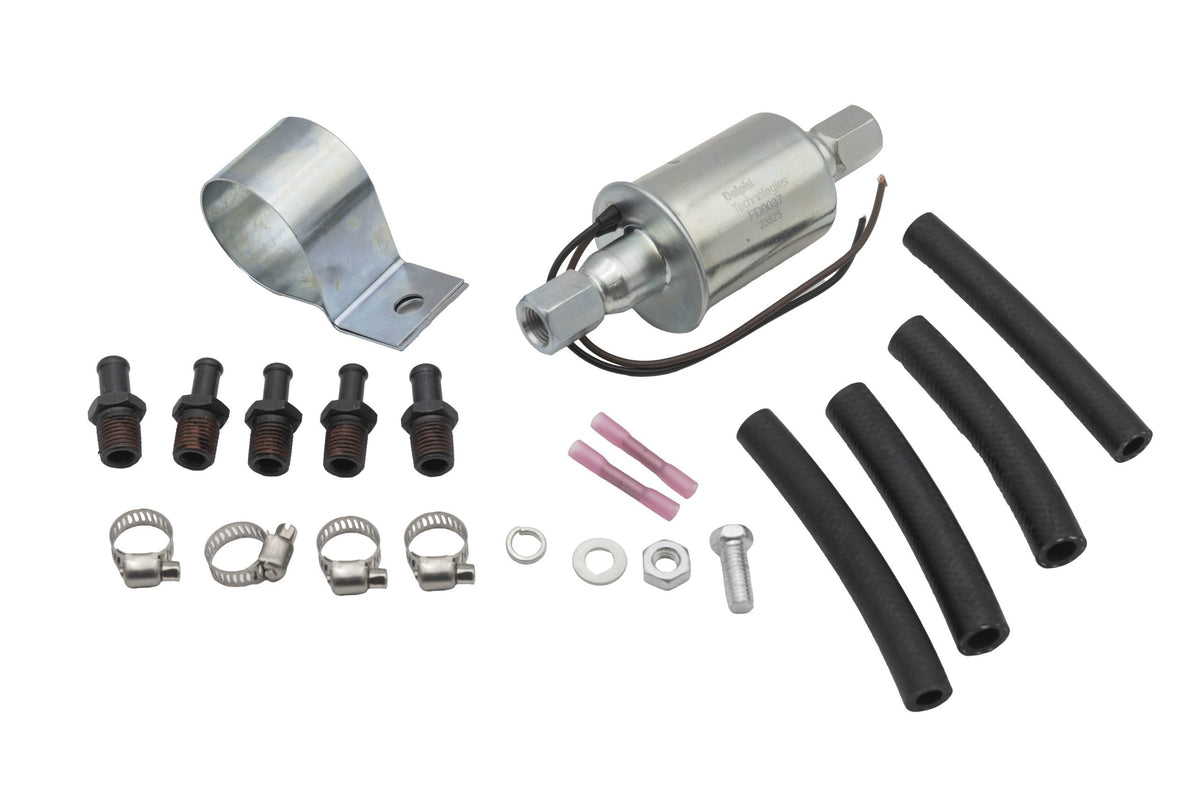

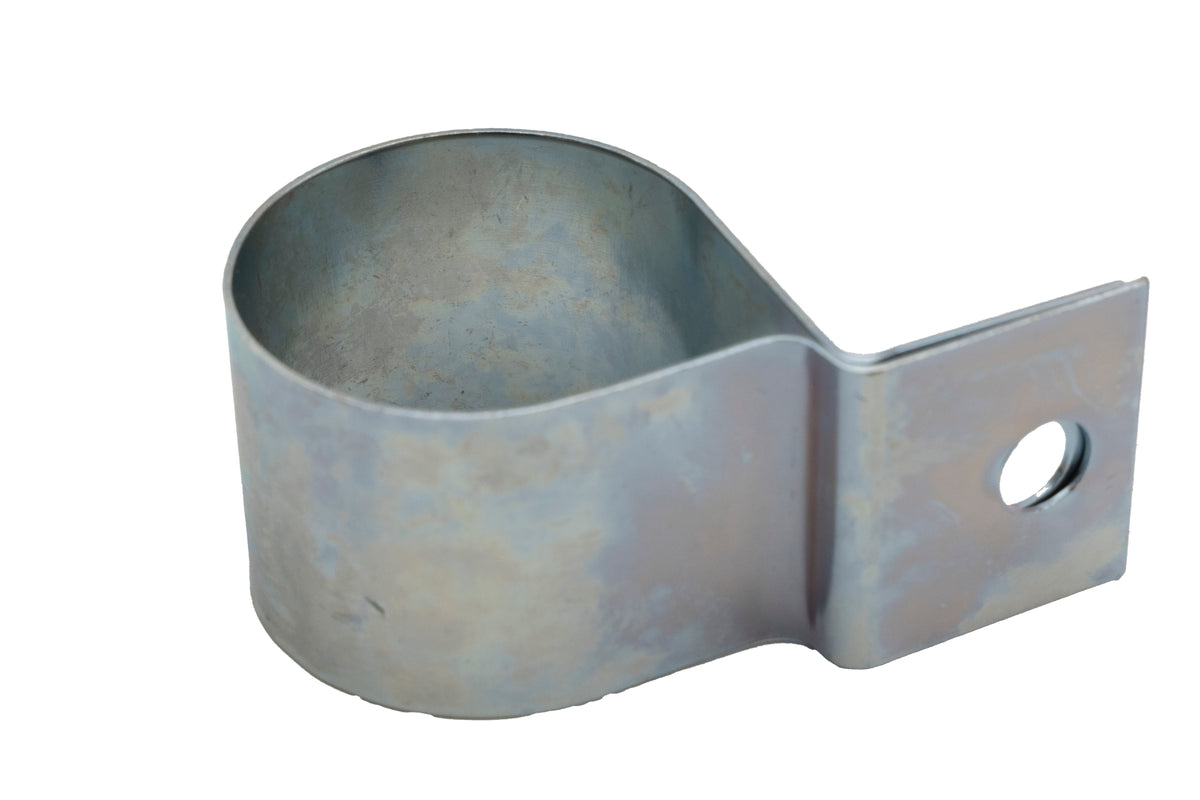

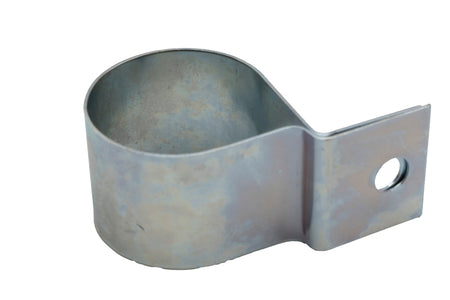

• Includes: Inline filter and mounting hardware
• UPC: 707924316278
• Country of Origin: USA
• Shipping Weight: 1.58 lb
• Package Dimensions: 10.25 x 4.5 x 4.5 in

Installation Notes

• Mount the pump low and close to the tank, on the chassis and not the engine, so it pushes fuel instead of pulling it. Mount it away from exhaust heat.
• Put the filter before the pump inlet, so debris from an old tank doesn't reach the pump.
• Fuse it and wire it through an oil-pressure safety switch or an inertia switch, so the pump stops if the engine stalls or you crash.
• Use fuel-rated 5/16 in. hose and real fuel-injection clamps. Don't use worm clamps on old, hard hose.
• If you are removing the mechanical pump, fit a block-off plate on the case.

Frequently Asked Questions

• Does this fit a 1967 VW Beetle? Yes, on a carbureted engine. EMPI's application data for the identical-spec 41-2604-0 covers the Type 1 Beetle 1947–1986, and the -7 shares that spec. It delivers 2–4 PSI, which is right for a carburetor with no regulator.
• What is the part number? EMPI 41-2604-7. UPC 707924316278. EMPI's boxed version is 41-2604-0 and has the same pump specs.
• Do I need a fuel pressure regulator? No. It puts out 2–4 PSI, which a stock-style carburetor can take, so no regulator is required.
• What size fuel line does it take? 5/16 in. inlet and outlet.
• Can I use it on fuel injection? No. 2–4 PSI is far too low for VW fuel injection, which needs about 28–36 PSI. It is for carburetors only.
• Will it run on 6 volts? EMPI rates it 12V and says it is compatible with 6-volt systems. Expect less flow on 6V.
• How does it ship? As a normal parcel (1.58 lb, 10.25 x 4.5 x 4.5 in box). It is not hazmat and has no ground-only restriction. If EMPI is out of stock it can still be ordered and ships when EMPI restocks.
