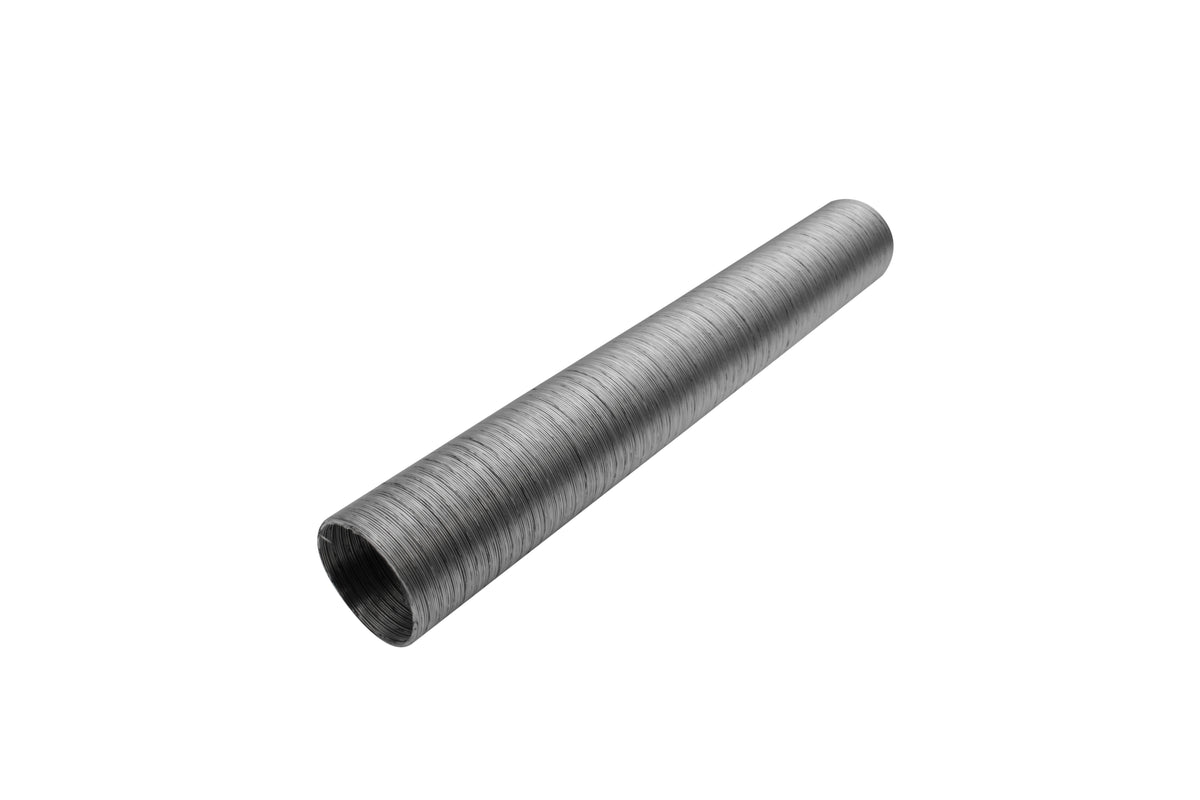

EMPI Aluminum Heater Hose — 60mm x 1000mm, VW Type 3 (00-3495-0)
The EMPI 00-3495-0 is a 60mm diameter, 1000mm (about 39 in) long flexible aluminum heater hose for the VW Type 3 heating system — Squareback, Notchback and Fastback, 1962–1973 US model years (EMPI: 04/1961–07/1973 production). It is the Type 3 size, not the smaller Type 1 hose. Cut it to length and clamp it in place of the old hose. Sold each, poly bagged.
Part numbers: EMPI 00-3495-0 · EMPI 3495 · OE reference 616 211 29501 (as listed by EMPI) · UPC 707924322361
Fitment
| Years | Vehicle | Notes |
|---|---|---|
| 1962–1973 | VW Type 3 Squareback, Notchback, Fastback | EMPI application: 04/1961–07/1973 production |
| Does not fit | VW Type 1 Beetle, Super Beetle, Karmann Ghia | These use a smaller hose (EMPI 00-3494-0) |
| Not confirmed | VW Type 2 Bus; Type 4 / 411 / 412 | Measure your outlet if the car has been modified |
Specifications
| Spec | Detail |
|---|---|
| Part number | EMPI 00-3495-0 |
| Diameter | 60mm |
| Length | 1000mm (approx. 39 in) |
| Material | Flexible aluminum |
| Heat rating | Dealers list it as flame-resistant to 450°F and paper-free |
| Sold as | Each (poly bagged) |
| OE reference | 616 211 29501 (as listed by EMPI) |
| UPC | 707924322361 |
| Country of origin | USA |
| Shipping weight | 0.35 lb |
| Package dimensions | 20 x 4 x 3 in |
What's Included
- One 60mm x 1000mm aluminum heater hose (cut to length)
Why It Matters
If your Type 3 blows cold, smells like the engine bay, or fogs the windshield, start with the heater hoses. Old ducting splits, rots or gets crushed, and then the heat from the exchangers leaks into the engine compartment and never reaches the cabin. One meter in one piece lets you cut more than one run.
Installation Notes
Measure each run with the old hose, then add about an inch for overlap on each end before you cut.
Cut with sharp snips or a fine-tooth blade and dress the edge so it doesn't snag or tear as you slide it on.
Use proper hose clamps at both ends. A loose end loses heat and lets engine-bay air into the cabin.
Keep the hose clear of the exhaust and moving linkage, and don't crush it flat behind the tin.
Frequently Asked Questions
Does this heater hose fit a 1968 VW Type 3 Squareback?
Yes. EMPI lists this hose for the VW Type 3 from 04/1961 to 07/1973 production, which covers every US-market Squareback, Notchback and Fastback (1962–1973 model years).
What is the part number for the Type 3 heater hose?
EMPI 00-3495-0 (often listed as EMPI 3495). EMPI's OE reference is 616 211 29501. UPC 707924322361.
What size is the EMPI 00-3495-0 heater hose?
60mm diameter and 1000mm (about 39 in) long, sold as one piece. Cut it to the length you need.
Will it fit my Type 1 Beetle?
No. The Beetle uses a smaller hose. This 60mm hose is the Type 3 size, so check the outlet you are connecting before you order.
How does it ship?
As a normal small parcel (0.35 lb, 20 x 4 x 3 in bag). It is not hazmat and has no ground-only restriction.
