EMPI Brass Intake & Exhaust Nuts — M8 x 1.25, 11mm Hex, Set of 8 | Air-Cooled VW Type 1 & Type 3 Engines 1954–1979 (43-6051-0)

EMPI Brass Intake & Exhaust Nuts — M8 x 1.25, 11mm Hex, Set of 8 (43-6051-0)

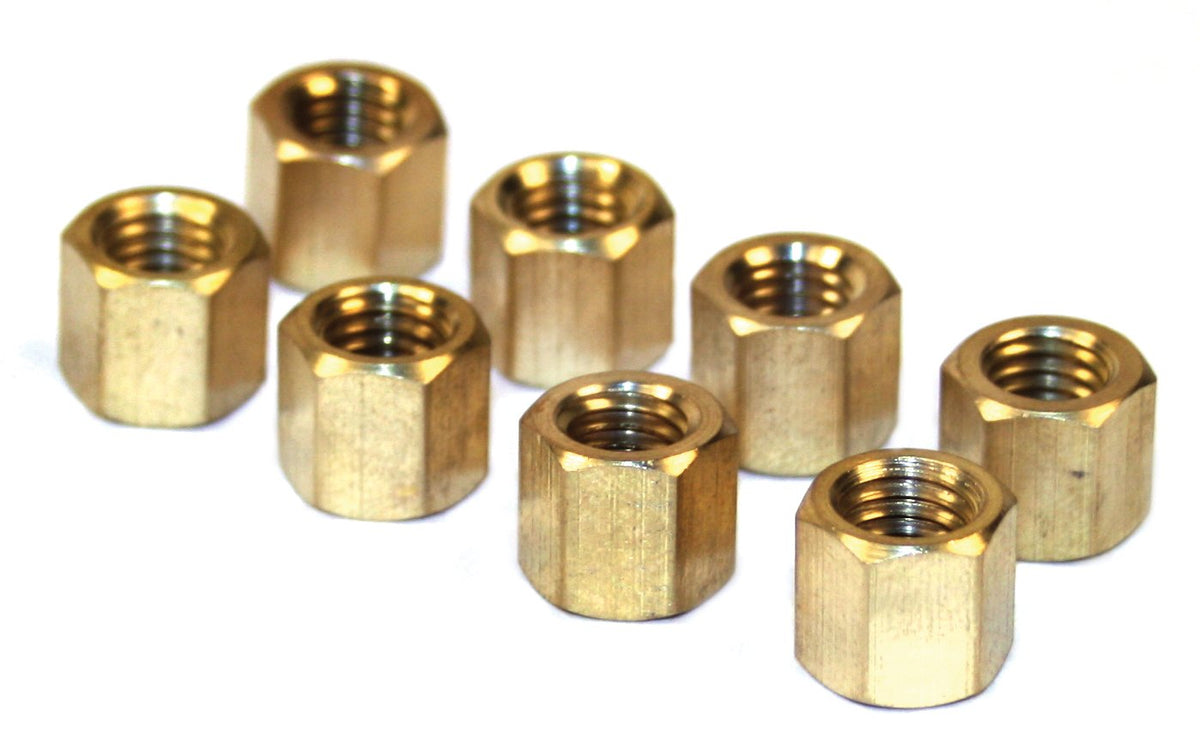

Every air-cooled VW owner has snapped an exhaust stud, or will. A plated steel nut rusts onto a steel stud sitting on a 400-degree head, and the next time the exhaust comes off, the stud comes with it. EMPI 43-6051-0 is a set of eight brass M8 x 1.25 nuts with a compact 11mm hex. Brass will not rust-weld to the stud, and the small hex clears large-diameter header tubes where a stock 13mm nut and socket will not go.

Key Features & Benefits

• Brass construction: it resists rust and thread seizing, so exhaust and manifold jobs come apart cleanly years later.
• Compact 11mm hex: about 2mm smaller than the stock nut, for clearance on big-tube headers and tight dual-carb manifold flanges.
• Stock M8 x 1.25 thread: the same thread as the factory exhaust-port and intake studs.
• Set of 8: one full set of exhaust-port nuts for a Type 1 engine (two per port).
• Genuine EMPI: sold by an authorized EMPI dealer.

Fitment

These nuts fit the M8 x 1.25 exhaust-port and intake-manifold studs of air-cooled VW upright (Type 1) and Type 3 engines. EMPI publishes no vehicle list for this part, so the fitment is based on the thread size plus dealer listings.

• CONFIRMED (thread size, dealer-listed): Type 1 engines in the VW Beetle, Super Beetle, Karmann Ghia, Thing, and Type 2 Bus through 1971. This includes stock heads and aftermarket heads that use M8 x 1.25 exhaust studs.
• CONFIRMED (thread size): Type 3 (pancake) engines with M8 x 1.25 exhaust studs, and dune buggies, Baja Bugs and sand rails running a Type 1 engine.
• NOT CONFIRMED: Type 4 engines (1972–1979 Bus, 914). Check your stud thread before you order. Also not confirmed: Porsche 356 and 912, and heads converted to 10mm or 3/8 in studs.

Technical Specifications

• Part Number: EMPI 43-6051-0
• Thread: M8 x 1.25
• Hex (wrench) Size: 11mm
• Material: Brass
• Quantity: Set of 8 (bag of 100: EMPI 43-6051-B; single nut: 43-6051-6)
• UPC: 707924364743
• Country of Origin: China
• Shipping Weight: 0.13 lb
• Package Dimensions: 6 x 5 x 1 in

Installation Notes

• Chase the stud threads with an M8 x 1.25 die or thread file first. A rough stud will gall a brass nut.
• Brass is softer than steel. Snug the nuts evenly in a crisscross pattern to the factory torque for your engine, and don't lean on a long ratchet.
• Use new exhaust port gaskets every time the exhaust comes off, and re-check the nuts after the first few heat cycles.
• If a stud is already pulled or damaged, fix the stud before you fit new nuts.

Frequently Asked Questions

• Will these fit my 1970 VW Beetle exhaust? Yes, if your exhaust and intake studs are the standard M8 x 1.25 thread used on air-cooled VW Type 1 heads and manifolds. The nut is the same thread as stock, with a smaller 11mm hex.
• Why brass instead of the stock nuts? Brass does not rust onto a steel stud, so the nut comes off next time instead of snapping the stud out of the head. The smaller 11mm hex also clears the tubes on large-diameter headers where a 13mm stock nut and socket will not fit.
• What wrench size do I need? An 11mm socket or wrench. A thin-wall or 1/4-inch-drive 11mm socket works best in tight header flanges.
• Can I use them on the intake manifold too? Yes. EMPI sells them as intake/exhaust nuts. They are commonly used to hold dual-carb intake manifolds down where clearance is tight.
• How many do I need? A Type 1 engine has 8 exhaust-port studs (2 per port), so one set does a complete exhaust. Intake manifolds need their own set.
• What is the part number? EMPI 43-6051-0 (often listed as EMPI 43-6051). The bag of 100 is 43-6051-B. UPC 707924364743.
• How does it ship? As a normal parcel, about 0.13 lb in a 6 x 5 x 1 in package. It is not hazmat and has no ground-only restriction. It is set up as backorder-OK: if it is not on our shelf, we order it from EMPI and ship when it arrives.
• Are you an authorized EMPI dealer? Yes. Washburn's Metal is an authorized EMPI dealer (account on file), and this is a genuine EMPI-catalog part shipped in the manufacturer's packaging.
