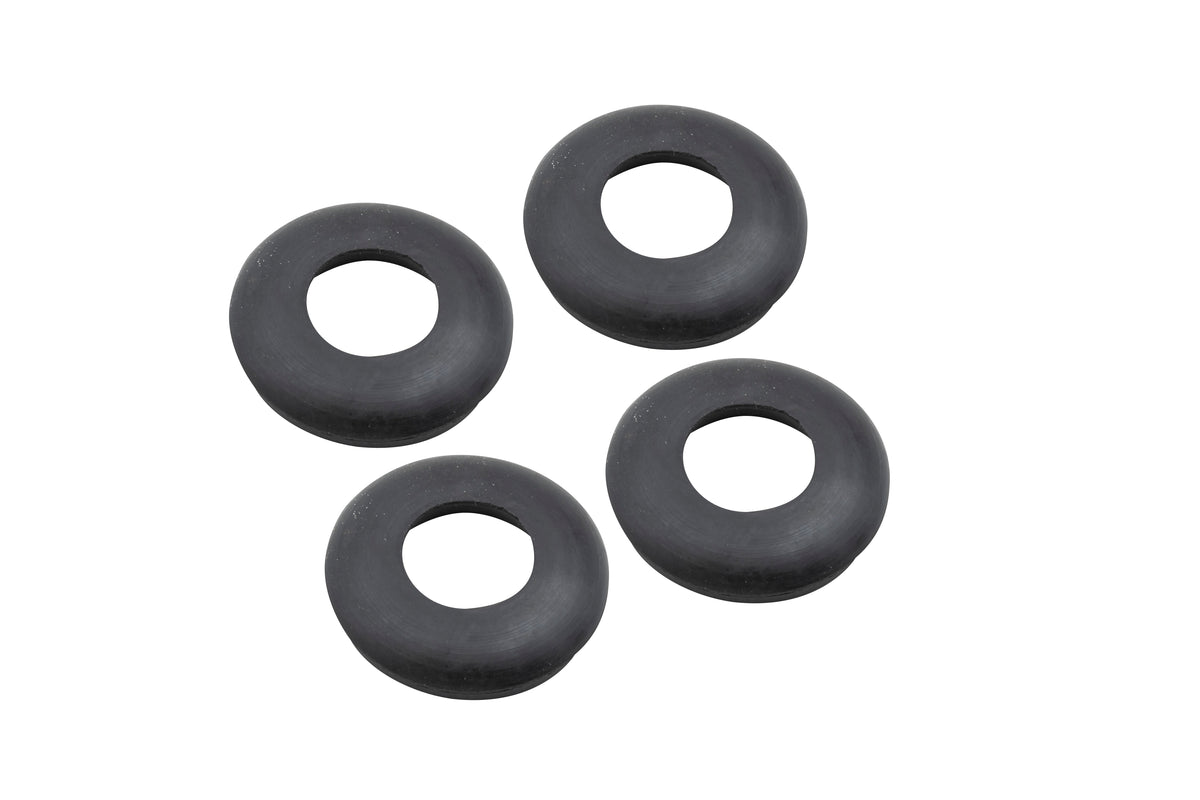

EMPI Bumper Bracket Over-Rider Grommet Seals — Set of 4 (98-1015-0)
Short answer: EMPI 98-1015-0 is a set of four bumper bracket grommet seals (OE 111 707 199A) for the 1955–1967 VW Beetle, one for each bracket where it passes through the body, so a single set seals both bumpers front and rear. They keep water and road grit out of the body. 1968-and-later Beetles use a different seal. Made in Mexico.
Part numbers: EMPI 98-1015-0 (short 98-1015; loose: 98-1015-B). OE reference 111 707 199A / 111707199A / 111-707-199A. UPC 707924368437.
Vehicle Fitment
| Years | Vehicle | Notes |
|---|---|---|
| 1955–1967 | VW Beetle (Type 1) | Front and rear, left and right (EMPI price file and product page) |
| Not confirmed | 1953–1954 Beetle, Karmann Ghia | Some dealers list from 1953; EMPI starts at 1955 |
| Does not fit | 1968-and-later Beetle and Super Beetle | They use OE 111 707 197B |
| Does not fit | Bus, Type 3 |
Ships as a small parcel (6 x 5 x 5 in box, 0.1 lb); not hazmat, no ground-only restriction.
Specifications
| Specification | Detail |
|---|---|
| Part number | EMPI 98-1015-0 |
| Quantity | 4 grommets per set |
| Position | Bumper bracket to body, front and rear, left and right |
| Material | Rubber (dealer-listed) |
| OE reference | 111 707 199A |
| UPC | 707924368437 |
| Country of origin | Mexico |
| Shipping weight | 0.1 lb |
| Package dimensions | 6 x 5 x 5 in |
What's Included
Included:
- 4 bumper bracket over-rider grommet seals
Why It Matters
On a 1955–1967 Beetle the bumper brackets pass straight through the body, and once the seal around each one cracks, the fender well feeds water and road grit into the body. Fit new grommets while the brackets are out for paint or bumper replacement.
Installation Notes
- Unbolt the bumper and pull the brackets out of the body.
- Clean the old rubber and dirt out of the body opening, and touch up any bare metal before the new grommet goes on.
- Slide the grommet onto the bracket, feed the bracket back through the body and seat the grommet lip all the way around. A little rubber lube or soapy water helps.
Frequently Asked Questions
- Does the EMPI 98-1015-0 fit a 1963 VW Beetle? Yes. EMPI lists 98-1015-0 for the Type 1 Beetle, 1955–1967. The grommets seal where the bumper brackets pass through the body.
- Will these bumper bracket seals fit my 1969 Beetle? No. 1968-and-later Beetles use a different bumper bracket seal (OE 111 707 197B).
- What is the OE number for VW Beetle bumper bracket seals? EMPI 98-1015-0, a set of 4, replaces OE 111 707 199A. UPC 707924368437. EMPI also sells them loose as 98-1015-B.
- How many bumper bracket grommets do I need? Four, one per bumper bracket, front and rear, left and right. This set does the whole car.
- Do I have to remove the bumper? Yes. The bracket has to come out of the body to slip the new grommet over it.
