EMPI CV Joint Boot Kit — Neoprene Boot, Moly Grease & Hardware | VW Bus 1968–1979, Vanagon & Thing (86-1086-D)

EMPI CV Joint Boot Kit, Type 2 — Boot, Moly Grease & Hardware (86-1086-D)

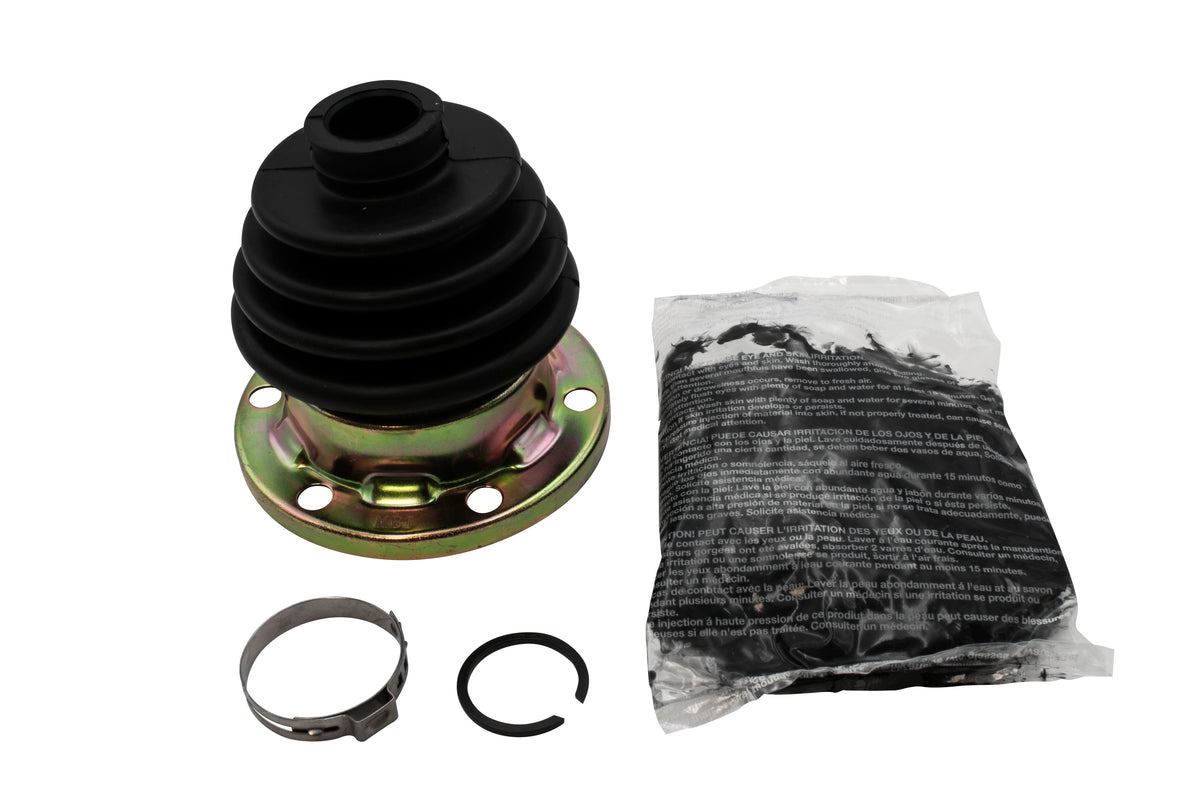

A torn CV boot on a Bus throws grease across the back of the transaxle and lets grit into the joint. Replace it before the joint starts clicking and you save the joint. EMPI 86-1086-D is the complete boot kit for one Type 2 CV joint: a neoprene boot, a pack of moly grease and the boot hardware.

It is the kit for the 1968–1979 Bus, the Vanagon and the Thing, and it comes in EMPI's retail box with everything but the CV bolts.

Key Features & Benefits

• Neoprene boot: EMPI's neoprene CV boot for the Type 2 joint.
• Moly grease included: enough to repack the joint you are resealing.
• Hardware included: the boot hardware comes in the box; reuse or replace your CV bolts.
• One joint per kit: order four for a full Bus or Vanagon reseal.
• OE reference 251 498 201 A: matches the factory boot kit number.
• Genuine EMPI: sold by an authorized EMPI dealer.

Fitment

• CONFIRMED (EMPI price file): VW Transporter T2 (Bus) 08/67–07/79, i.e. 1968–1979 model years; VW Transporter T3 (Vanagon) 05/79–07/92; VW 181 (Thing) 09/69–02/79, which covers the 1973–1974 US Thing.
• Dealer-listed (NOT CONFIRMED by EMPI): Other dealers list the equivalent 251 598 201 kit for Type 4 (411/412) 1971–1974 and Vanagon air-cooled, 2.1L, Syncro, Diesel and 1.9L.
• NOT CONFIRMED: Vanagon Syncro and any axle with non-stock CV joints; dune buggies and sand rails with Type 2 CV conversions (fits only if the joints are stock-size Type 2). Type 1 IRS Beetles use a smaller boot: see EMPI 86-1084-D.

Technical Specifications

• Part Number: EMPI 86-1086-D
• Kit Contents: Neoprene CV boot, moly grease pack, boot hardware (per EMPI; CV bolts not included)
• Joint: Type 2 CV joint (one joint per kit)
• OE Reference #: 251 498 201 A
• Related EMPI numbers: 86-1086-1 deluxe kit with 6 CV bolts; 86-1086-0 boot with flange, bulk
• Packaging: EMPI 3-color trilingual retail box
• UPC: 707924099539
• Country of Origin: China
• Shipping Weight: 0.8 lb
• Package Dimensions: 5 x 5 x 5 in

Installation Notes

• Support the Bus safely, pull the six CV bolts on each end and drop the axle. Mark the joints so they go back the way they came off.
• Clean the joint completely and check it. If the balls are pitted or the grease is full of grit, replace the joint, not just the boot.
• Work the moly grease into the joint from both sides until it is full, then fit the new boot and its hardware.
• Clean the CV bolt threads and the flange faces. Use new lock washers or bolts where your manual calls for them, and torque the bolts to spec in a cross pattern.
• A full reseal is four joints and four kits. Do them all at once while the axles are out.

Frequently Asked Questions

• Does this fit a 1972 VW Bus? Yes. EMPI lists it for the VW Transporter T2 from 08/67 to 07/79, which covers every 1968–1979 Bus with IRS CV joints.
• Does it fit a Vanagon? Yes for the standard Vanagon: EMPI lists the VW Transporter T3 from 05/79 to 07/92. Syncro and aftermarket-axle Vanagons are not confirmed, so check your joints first.
• What is the part number? EMPI 86-1086-D. UPC 707924099539. OE reference 251 498 201 A. The version with six CV bolts is EMPI 86-1086-1.
• How many do I need? One kit does one CV joint. A Bus or Vanagon has four joints, so a full reseal takes four kits.
• What is in the kit? One neoprene CV boot, a moly grease pack and the boot hardware, in EMPI's retail box. CV bolts are not included.
• Will it fit my buggy's Type 2 CVs? EMPI doesn't list buggies. If your axles use the stock-size Type 2 (100mm) CV joints, this boot matches that joint, but compare it with your old boot first.
• How does it ship? As a normal parcel (0.8 lb, 5 x 5 x 5 in box). It is not hazmat and has no ground-only restriction. If EMPI is out of stock it can still be ordered and ships when EMPI restocks.
• Are you an authorized EMPI dealer? Yes. Washburn's Metal is an authorized EMPI dealer, and this is a genuine EMPI part shipped in EMPI packaging.
