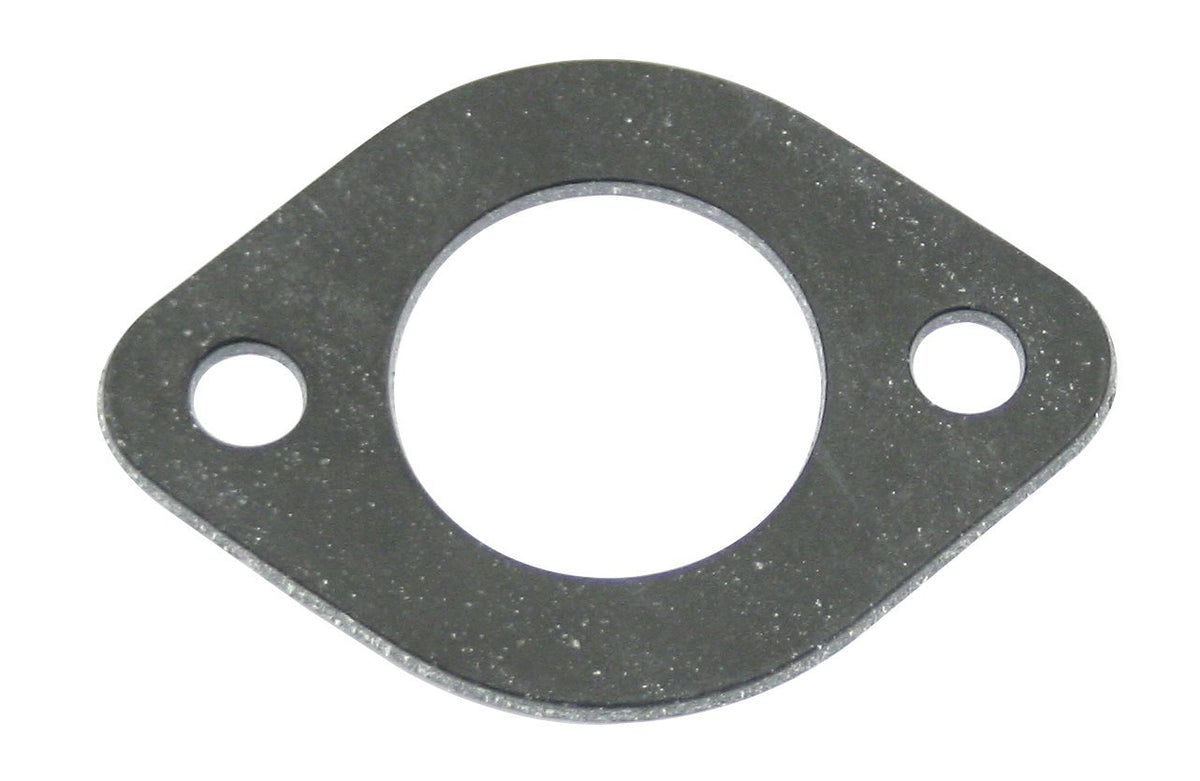

EMPI Exhaust Port Gaskets — 1-1/2" I.D., Pack of 4 (00-3391-0)
Short answer: EMPI 00-3391-0 is a pack of four 1-1/2 in. I.D. exhaust port gaskets for air-cooled VW 1200–1600cc upright (Type 1) engines: one per port, sealing the head to the heat exchanger or header. It fits the Beetle, Super Beetle, Karmann Ghia, Type 1-engine Bus (1950–1971), Thing and buggies. Not for 1-5/8 in. headers or Type 4 engines. Made in USA.
Part numbers: EMPI 00-3391-0 (short 3391). Single gasket: 00-3391-7. UPC 707924321531.
Vehicle Fitment
| Years | Vehicle | Notes |
|---|---|---|
| 1948–1979 | VW Beetle | Type 1 engine, 1-1/2 in. flange |
| 1971–1979 | VW Super Beetle | Dealer-listed, same Type 1 engine |
| 1956–1974 | VW Karmann Ghia | |
| 1950–1971 | VW Bus | Type 1 engine only (Split Bus 1950–1967; Bay Window with Type 1 engine 1968–1971) |
| 1962–1973 | VW Type 3 | Dealer-listed by two dealers |
| 1973–1974 | VW Thing | Dealer-listed, same Type 1 engine |
| 1963–1971 / 1968–1979 | Dune buggy / Baja Bug | From 08/1963 and 08/1968 |
| Not confirmed | 1972–1979 Bus with Type 4 engine | The Type 4 uses a different gasket |
| Not confirmed | 1-5/8 in. headers, 36hp engines | Use a 1-5/8 in. gasket for 1-5/8 in. headers |
Specifications
| Specification | Detail |
|---|---|
| Part number | EMPI 00-3391-0 (single gasket: 00-3391-7) |
| Inside diameter | 1-1/2 in. (dealer-listed) |
| Quantity | Pack of 4 |
| Engine | 1200–1600cc air-cooled VW Type 1 |
| UPC | 707924321531 |
| Country of origin | USA |
| Shipping weight | 0.1 lb |
| Package dimensions | 6 x 5 x 1 in |
What's Included
Included:
- 4 exhaust port gaskets, 1-1/2 in. I.D.
Why It Matters
A ticking exhaust at cold start, soot streaks around the head flange, and a heater that smells like exhaust all point to a blown port gasket. Never reuse the old ones: a fresh gasket keeps exhaust out of the heater and the engine bay.
Installation Notes
- Scrape the head's port face and the flange clean and flat. A step or old gasket residue is what makes a new gasket blow out.
- Check the exhaust studs. Replace any stripped or necked stud now, because it will not hold torque.
- Snug the nuts evenly in stages so the flange pulls down square, then retighten after the first heat cycle.
- Brass exhaust nuts come off far easier next time than plated steel nuts.
Frequently Asked Questions
- Will the EMPI 00-3391-0 exhaust gaskets fit my 1970 VW Beetle? Yes. They fit the exhaust ports of 1200–1600cc upright Type 1 engines with a 1-1/2 in. header or heat exchanger flange, which covers a stock 1970 Beetle.
- Do 1-1/2 in. exhaust port gaskets fit a 1-5/8 in. performance header? No. These are 1-1/2 in. I.D. For 1-5/8 in. headers use a 1-5/8 in. gasket such as EMPI 00-3632-0 (steel) or 17-2821-0 (copper).
- How many exhaust port gaskets does a VW Type 1 engine need? One pack of 4 does a complete Type 1 engine: one gasket per exhaust port.
- Paper, steel or copper exhaust gaskets? This is EMPI's standard die-cut port gasket. EMPI also makes steel (00-3631-0) and copper (17-2820-0) versions, which some builders prefer on hot-running or high-performance engines.
- Do they fit a Type 4 engine or a 1972-79 Bus? NOT CONFIRMED. Buses with the Type 4 engine (1.7-2.0L) use a different port gasket. Check before you order.
- What is the part number? EMPI 00-3391-0 (short number 3391). The single gasket is 00-3391-7. UPC 707924321531.
