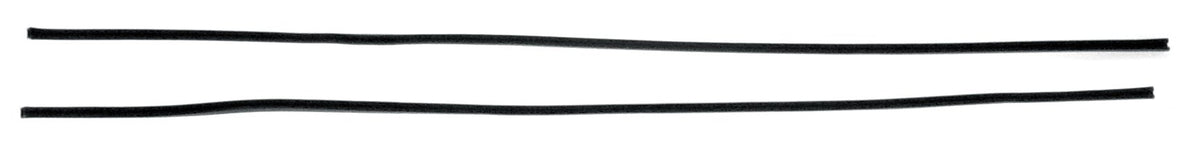

EMPI Felt Window Channel Set — Top/Rear, 72 Inch, Pair | VW Beetle & Super Beetle Sedan 1965–1977 (00-9771-B)

EMPI Felt Window Channel Set — Top/Rear, 72 Inch, Pair (00-9771-B)

If your Beetle window squeaks, rattles or chatters in its frame, or the glass shows fine scratches, the felt channel is worn down to its steel backbone. EMPI 00-9771-B is a boxed pair of 72 in felt-lined U-channels for the top and rear of the door glass, one per door. Each piece is long enough to cut to fit.

Key Features & Benefits

• Pair, one per door: each 72 in piece does the top and rear run of one door.
• Cut to fit: the extra length lets you trim each piece to your door frame, stock or 1-piece window.
• Quiet, smooth glass: new felt stops the rattle and lets the window roll up without binding.
• Protects the glass: fresh felt instead of bare steel means no more scratches on the glass.
• Genuine EMPI: sold by an authorized EMPI dealer.

Fitment

This pair fits the door window top/rear channel of VW Beetle and Super Beetle sedans. The EMPI price file gives no fitment for this pair, so the years below come from EMPI's data for the matching single piece.

• CONFIRMED (EMPI): Type 1 Beetle sedan, 1965 model year on (EMPI price file fitment for the single 72 in channel 00-9771-6: Type 1 08/64 on). The pair is described as "Top/Rear Channel, All Sedans."
• CONFIRMED (dealer-listed): Super Beetle sedan 1971–1977 (Appletree, JBugs).
• NOT CONFIRMED for this pair: Bus 1968–1979 and Type 3 1961–1973 (EMPI lists them for the single 00-9771-6 only), 1958–1964 Beetles (JBugs lists its own-brand channel from 1958), convertibles and Karmann Ghia.

Technical Specifications

• Part Number: EMPI 00-9771-B
• Quantity: Pair (2 pieces)
• Length: 72 in each, cut to fit
• Type: Felt-lined U-channel (glass run), top and rear of door glass
• Reference #: 111 837 439D (dealer-listed); 8186003000 (EMPI price file)
• Country of Origin: Brazil
• Shipping Weight: 2.63 lb
• Package Dimensions: 44.875 x 16.5 x 3.125 in

Installation Notes

• Drop the glass and pull the old channel out of the frame. Clean out the rust and old glue.
• Dry-fit the new channel and mark it, then cut it to length with sharp snips or a fine hacksaw. Leave it a hair long, since you can always take more off.
• Press it into the frame, tapping it home with a rubber mallet, and use a dab of weatherstrip adhesive where the old channel was glued.
• Roll the glass up slowly the first few times so the felt beds in.

Frequently Asked Questions

• Does this fit a 1968 VW Beetle sedan? Yes. EMPI lists the 72 in felt channel for Type 1 from the 1965 model year on, and describes this pair as the top/rear channel for all sedans.
• Is it for the door glass? Yes. It is the felt-lined U-channel that runs across the top and down the back of the door window glass, where the glass rides when you roll it up.
• What is the part number? EMPI 00-9771-B, a boxed pair. Reference 111 837 439D (dealer-listed) and 8186003000 (EMPI price file). EMPI sells a single 72 in piece as 00-9771-6.
• Why is it 72 inches long? It comes long so you can cut it to the exact top and rear run of your door frame. That also suits 1-piece (no vent wing) window conversions.
• Does it fit a convertible or a Bus? This pair is sold for sedans. EMPI lists the single-piece 72 in channel for Bus and Type 3 too, but that is not confirmed for this pair, so check your old channel first.
• How does it ship? In a long box, 44.9 x 16.5 x 3.1 in, 2.63 lb. It is not hazmat and has no ground-only restriction, but the box length can raise the shipping rate.
• Are you an authorized EMPI dealer? Yes. Washburn's Metal is an authorized EMPI dealer, and this is a genuine EMPI part.
