EMPI Forged 2.5" Drop Spindle Set — Ball Joint, Drum Brake | VW Beetle 1966–1977 & Karmann Ghia 1966 (22-3975-0)

EMPI Forged 2.5" Drop Spindle Set — Ball Joint, Drum Brake (22-3975-0)

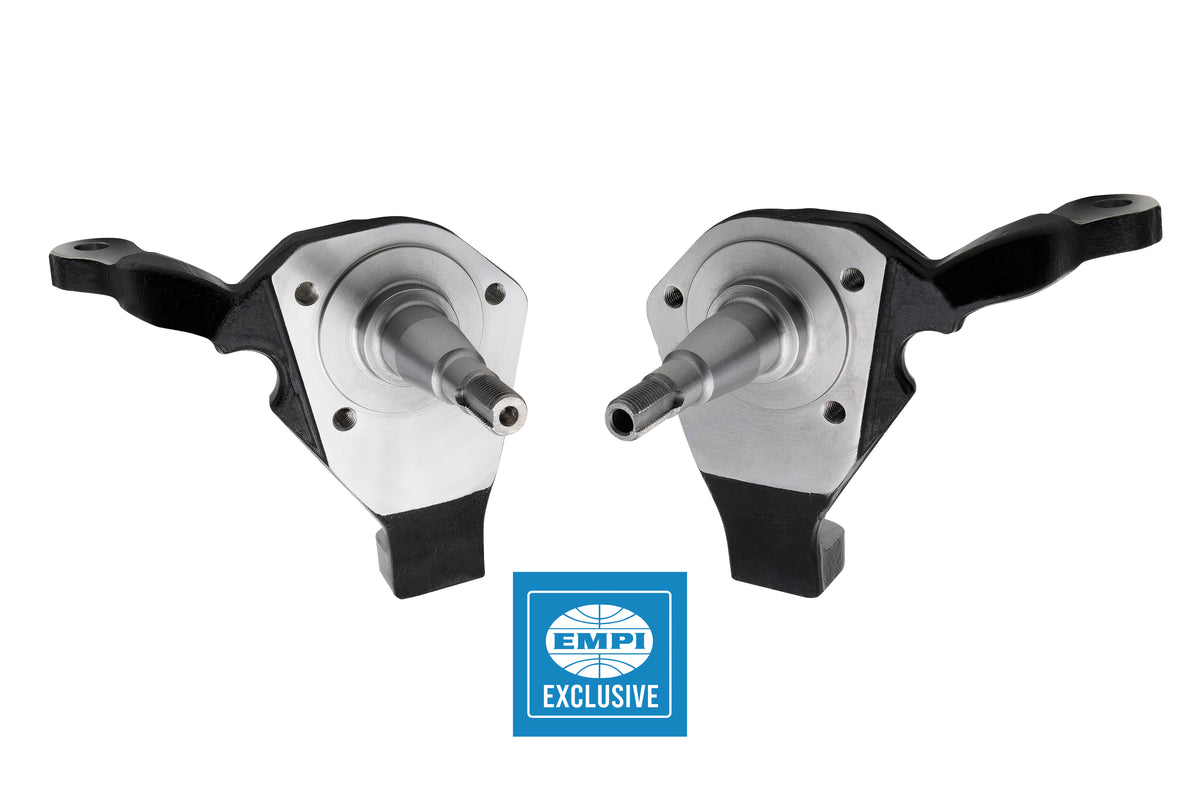

Lowering a ball-joint Beetle by cutting or adjusting the beam trades ride quality and steering geometry for stance. A drop spindle keeps the beam, the torsion leaves and the shock travel stock, and moves the wheel stub up 2.5 inches instead. EMPI 22-3975-0 is a forged left-and-right pair made for cars that still run front drum brakes, so you can lower the front without converting to discs first.

Key Features & Benefits

• 2.5" drop at the spindle: the beam, torsion leaves and shock mounts stay stock, so suspension travel and ride quality stay close to factory.
• Forged, not cast or welded: EMPI forges these like the original equipment for strength and dimensional accuracy.
• Zero offset: keeps the factory front track width and steering geometry, which is what heads off the alignment and bump-steer problems of cheaper lowering methods.
• Drum-brake mounting: machined to take the stock drum backing plate and drum, so you reuse your front brakes.

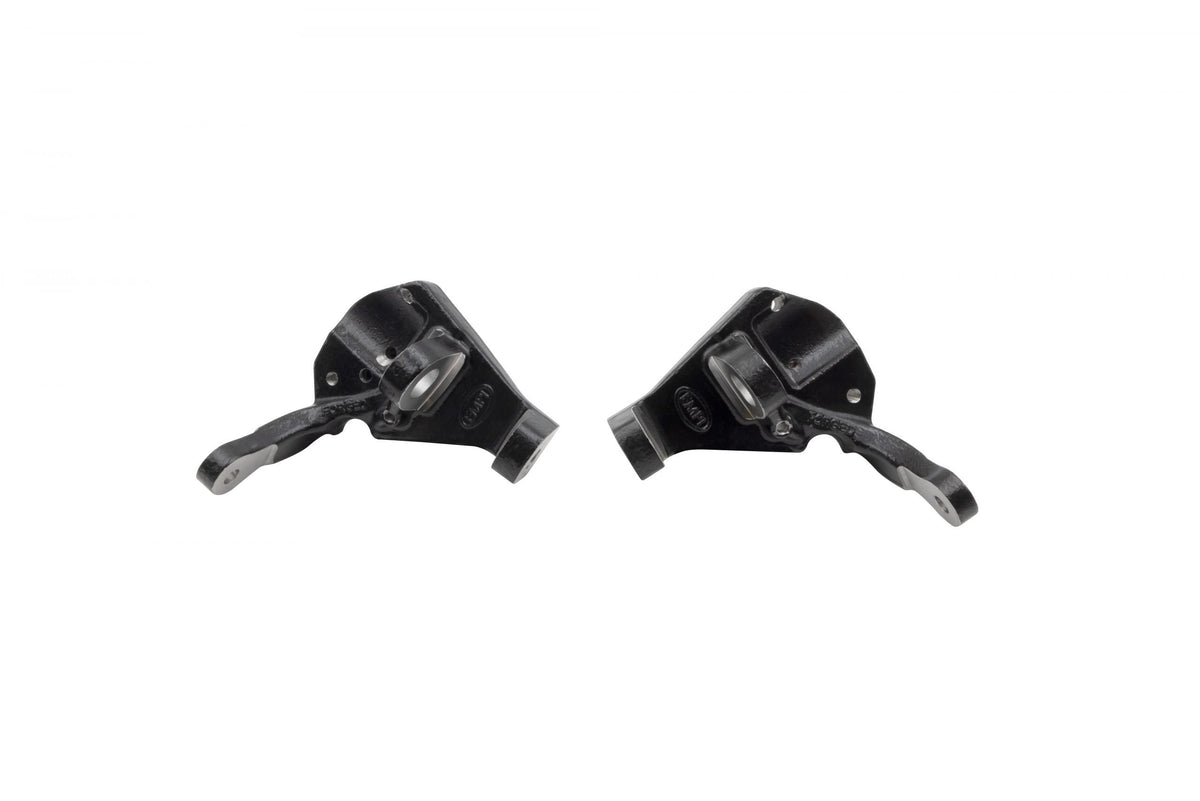

• Sold as a pair: left and right spindles in one box.

Fitment

This set fits standard ball-joint VW Beetles, 1966–1977, with front drum brakes.

• CONFIRMED (EMPI): 1966–1977 VW Beetle (Type 1) with ball-joint front suspension and front drum brakes, left and right.
• CONFIRMED (dealer-listed): 1966 VW Karmann Ghia with ball-joint front suspension and front drum brakes. From 1967 on, the Ghia came with front disc brakes from the factory, so a 1967–1974 Ghia needs a disc-brake drop spindle instead.
• REQUIRES: on 1966 to about May 1968 cars, the later (1968½-on) outer tie rod ends, wheel bearings and seals.
• DOES NOT FIT: Super Beetle (1971–1979 MacPherson strut), link-pin/king-pin cars (1965 and earlier), or cars with front disc brakes, including 1967–1974 Karmann Ghias with factory discs (see 22-3955-0).
• NOT CONFIRMED: Thing (Type 181), dune buggies and Baja Bugs on ball-joint beams, and narrowed or aftermarket beams. Check with us before ordering.

Technical Specifications

• Part Number: EMPI 22-3975-0 (supersedes 22-2859)
• Type: Forged 2.5" drop spindles, ball-joint, drum brake, zero offset
• Bearing Collars: 29 mm inner, 17.5 mm outer (1968½-on size, dealer-published)
• Sold As: Pair (left and right). Singles: 22-3975-1 (L), 22-3975-2 (R)
• Brakes: Not included. Reuses the stock drum brake
• UPC: 707924542479
• Country of Origin: Mexico
• Shipping Weight: 14.85 lb
• Package Dimensions: 11 x 7 x 9 in

Installation Notes

• Support the car on stands under the frame head or pan, never on the jack alone.
• Pull the drum and backing plate, separate the tie rod end and both ball joints with the correct tool rather than a pickle fork, and transfer the backing plate to the new spindle.
• Fit new bearings and seals, pack them with fresh wheel-bearing grease and set bearing play per the factory manual.
• Get a front-end alignment afterward and check tire clearance at full lock in both directions before driving.

Frequently Asked Questions

• Does this fit a 1970 VW Beetle? Yes, if it is a standard (torsion-bar, ball-joint) Beetle that still has front drum brakes. EMPI lists it for 1966–1977 Beetles. It does not fit the Super Beetle.
• Will these work with front disc brakes? No. This set is machined for the drum-brake backing plate. For 2-piston disc brakes, the matching EMPI set is 22-3955-0.
• What else do I need on a 1966 to mid-1968 car? Early ball-joint cars (before about May 1968) also need the later-style outer tie rod ends, wheel bearings and seals, because these spindles use the 1968½-and-later sizes (29 mm inner and 17.5 mm outer bearing collar, dealer-published).
• Do I need different shocks or tires? Stock-length shocks work, because the drop comes from the spindle, not the beam. Plan on a smaller-diameter front tire, as dealers warn that stock-size tires can rub at full lock and over bumps once the car sits 2.5 inches lower.
• What is the part number? EMPI 22-3975-0 (short number 3975). It is a left and right pair; the singles are 22-3975-1 (left) and 22-3975-2 (right). It supersedes the old EMPI 22-2859. UPC 707924542479.
• How does it ship? As a normal parcel, about 14.85 lb in a 11 x 7 x 9 in package. It is not hazmat and has no ground-only restriction. It is set up as backorder-OK: if it is not on our shelf, we order it from EMPI and ship when it arrives.
• Are you an authorized EMPI dealer? Yes. Washburn's Metal is an authorized EMPI dealer (account on file), and this is a genuine EMPI-catalog part shipped in the manufacturer's packaging.

Explore Related Categories

Lowering a Beetle with discs? See the EMPI 22-3955-0 disc-brake drop spindles. Also browse Suspension & Components, VW Beetle Parts, VW Karmann Ghia Parts and the full EMPI Parts catalog.
