EMPI Small 3-Bolt Exhaust Flange — 1-3/4" I.D. Steel (00-3695-0)

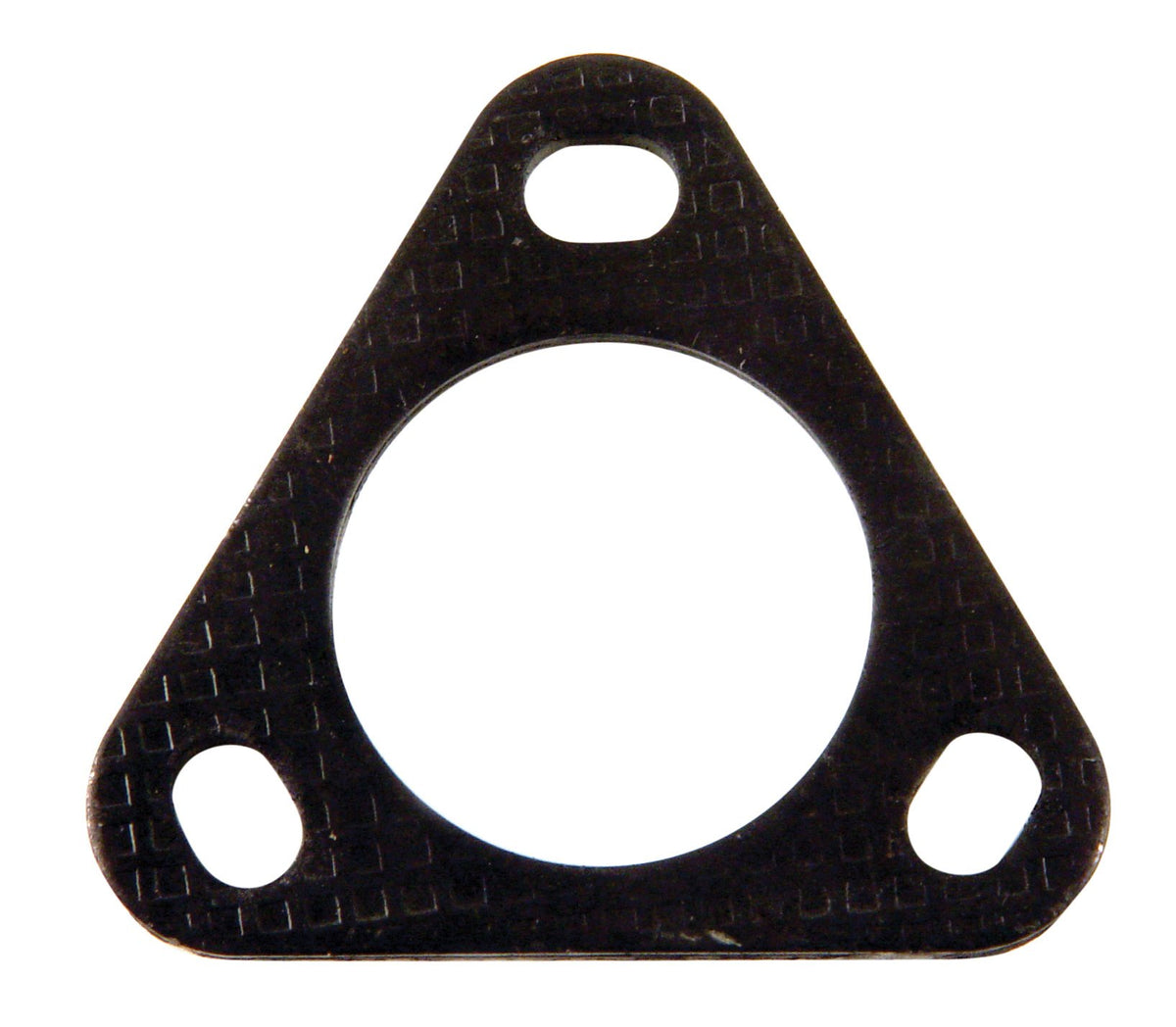

Every custom header, stinger or muffler swap ends in a joint that has to seal. Nothing beats a flat flange and a gasket. EMPI 00-3695-0 is a small 3-bolt steel exhaust flange with a 1-3/4" I.D. hole and slotted bolt holes. Weld it to the tube, bolt it up, and the slots let you pull the joint into line after welding.

Key Features & Benefits

• Small 3-bolt pattern: the compact triangle flange used on air-cooled VW muffler and collector joints.
• 1-3/4" I.D. hole: slips over 1-3/4" O.D. tubing, ready to weld.
• Slotted bolt holes: leave a little adjustment after welding so the joint lines up without stress.
• Stamped steel: flat, weldable and easy to drill if your build needs it.
• Sold each: genuine EMPI, sold by an authorized EMPI dealer.

Fitment

This is a weld-on fabrication flange for air-cooled VW exhaust work. It fits any system where you are joining 1-3/4" tube with a small 3-bolt pattern.

• CONFIRMED (EMPI application data): VW Type 1 Beetle 12/1947–12/1986 (including the 1971–1979 Super Beetle), Type 2 Bus (T1) 01/1950–07/1967, Type 2 Bus (T2) 08/1967–07/1979, Type 3 04/1961–07/1973, Karmann Ghia 08/1955–07/1974, VW 181 Thing 09/1969–02/1979.
• CONFIRMED (by design): custom headers, collectors, stingers and muffler connections on Type 1-engine dune buggies and sand rails.
• NOT CONFIRMED: bolt-on replacement for a specific factory joint (it is a weld-on part), non-EMPI 3-bolt patterns, and tubing other than 1-3/4" O.D. Check the pattern on the mating part before you weld.

Technical Specifications

• Part Number: EMPI 00-3695-0
• Type: small 3-bolt exhaust / muffler flange
• Hole: 1-3/4" I.D.
• Bolt Holes: slotted
• Material: stamped steel
• Sold As: Pack of 1
• UPC: 707924323856
• Country of Origin: China
• Shipping Weight: 0.28 lb
• Package Dimensions: 6 x 5 x 1 in

Installation Notes

• Clean mill scale and paint off the flange and the tube before you weld.
• Tack the flange square to the tube, check it against the mating flange, then finish the weld. Keep the sealing face flat.
• Use a fresh exhaust gasket on every joint, and snug the three bolts evenly.
• Re-torque after the first heat cycle. Exhaust joints settle.

Frequently Asked Questions

• Does this fit a 1972 VW Beetle? Yes, as a weld-on part. EMPI lists this flange for the Type 1 Beetle from 12/1947 to 12/1986, and it welds to a 1-3/4 in tube to make a small 3-bolt joint. Match the bolt pattern of the part you're mating it to before you weld.
• What is the part number? EMPI 00-3695-0 (often listed as EMPI 3695). UPC 707924323856.
• Is it one flange or a pack? One flange. EMPI sells it as a pack of 1. Order two if you're building both halves of a joint.
• Why are the bolt holes slotted? So you can shift the flange slightly after it's welded and pull the joint into line without re-cutting the tube.
• How does it ship? As a normal small parcel (0.28 lb, 6 x 5 x 1 in). It is not hazmat and has no ground-only restriction.
• Are you an authorized EMPI dealer? Yes. Washburn's Metal is an authorized EMPI dealer, and this is a genuine EMPI part.
