EMPI Throw-Out Bearing Super Clips — Heavy-Duty, Pair | VW Beetle, Bus, Karmann Ghia & Type 3 1954–1970 (32-1208-0)

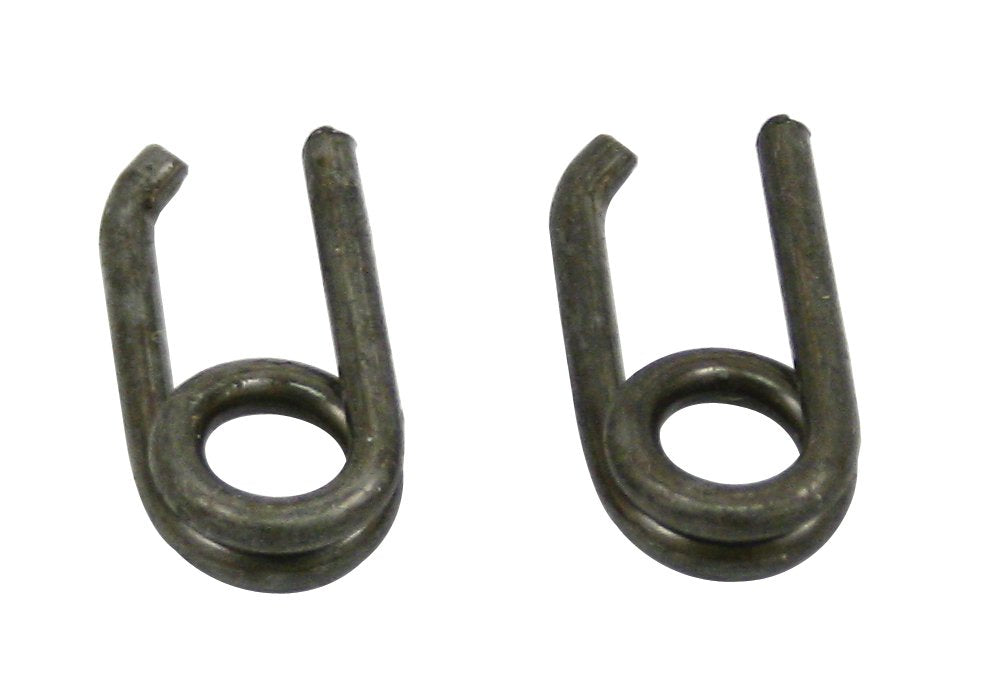

EMPI Throw-Out Bearing Super Clips — Heavy-Duty, Pair (32-1208-0)

On an early VW, two small spring clips are all that hold the throw-out bearing onto the clutch fork. When they weaken, the bearing rattles, walks off the fork and leaves you with a pedal that goes to the floor, usually far from home, and the engine has to come out to fix it. EMPI 32-1208-0 is a pair of heavy-duty Super Clips that grip harder than the stock clips. Fit them every time the engine is out for a clutch job.

Key Features & Benefits

• Heavy-duty spring clips: more clamping force than stock, so the bearing stays locked to the fork.
• Direct replacement: replaces the stock clips (OE 111-141-177AS) on early-style throw-out bearings.
• One pair per bearing: both clips for one clutch job.
• Engine-out insurance: it costs almost nothing now, compared with pulling the engine again later.
• Genuine EMPI: sold by Washburn's Metal.

Fitment

These clips fit the early-style (unguided) clutch throw-out bearing used in air-cooled VW swing-axle and early IRS transaxles through the 1970 model year.

• CONFIRMED (EMPI: "All 54-70"): VW Beetle 1954–1970, Karmann Ghia 1956–1970, Type 1 and Type 2 Bus 1954–1970, and Type 3 1962–1970.
• CONFIRMED by design: dune buggies, Baja Bugs and sand rails running a 1970-or-earlier transaxle with the early throw-out bearing.
• NOT CONFIRMED: 1949–1953 cars (some dealers list them, EMPI starts at 1954). Clips do NOT fit any 1971-on guided throw-out bearing (Beetle, Super Beetle, Bus, Type 3, Thing).

Technical Specifications

• Part Number: EMPI 32-1208-0 (single clip: 32-1208-B)
• Type: Throw-out (clutch release) bearing retaining clips, heavy duty
• OE Reference #: 111-141-177AS
• Quantity: Pair (2 clips)
• Fits: Early-style unguided throw-out bearing, 1954–1970
• UPC: 707924362947
• Country of Origin: Taiwan
• Shipping Weight: 0.1 lb
• Package Dimensions: 6 x 5 x 1 in

Installation Notes

• The engine has to be out. While it is out, check the clutch fork (cross-shaft) bushings for play and the fork fingers for wear.
• Hook each clip into the bearing's groove first, then spring it over the fork finger. They are stiff, so use pliers and eye protection.
• Rock the bearing on the fork by hand. It should pivot with no free play and no rattle.
• Set clutch free play at the pedal after the engine goes back in.

Frequently Asked Questions

• Will these fit my 1968 VW Beetle? Yes. They fit the early-style (unguided) throw-out bearing used on all air-cooled VWs through the 1970 model year, and a 1968 Beetle uses that bearing.
• Do they fit a 1971 or later VW? No. From 1971 VW used a guided throw-out bearing on a guide sleeve, which does not use these clips. See EMPI 32-1210-B.
• Why replace the clips? The clips hold the throw-out bearing onto the clutch fork. Worn stock clips let the bearing wobble or drop off the fork, which means a dead clutch pedal and pulling the engine. These spring clips hold noticeably tighter than stock.
• Do I need these if I buy a new bearing? Check the box. EMPI's 32-1205-B bearing ships with Super Clips. Many other bearings, including used and German OE ones, do not.
• How many come in the pack? A pair, which is one bearing's worth (two clips).
• What is the part number? EMPI 32-1208-0 (pair). The single clip is 32-1208-B (OE 111-141-177AS). UPC 707924362947.
• How does it ship? As a normal parcel, about 0.1 lb in a 6 x 5 x 1 in package. It is not hazmat and has no ground-only restriction. It is set up as backorder-OK: if it is not on our shelf, we order it from EMPI and ship when it arrives.
