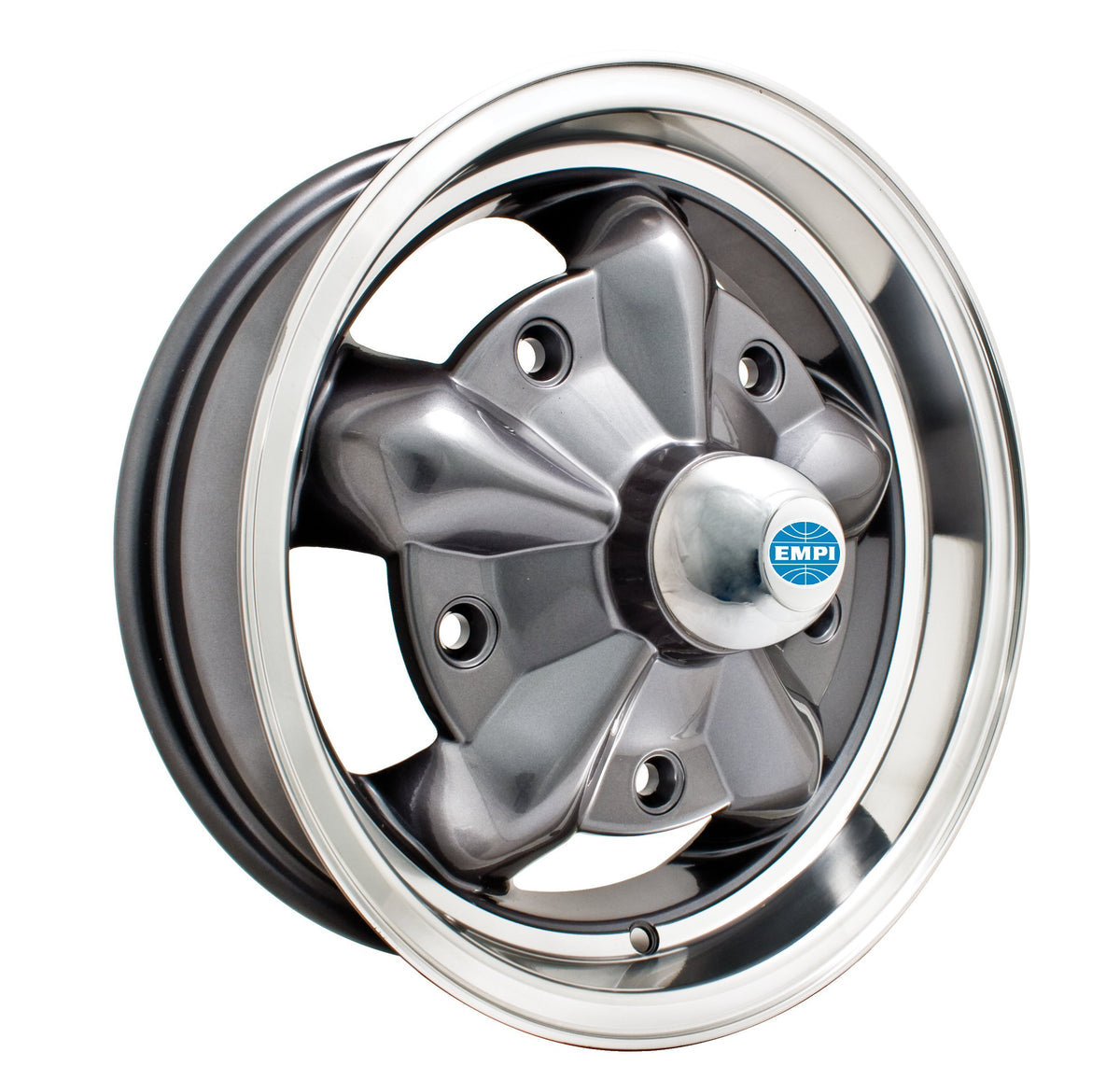

EMPI Torque Star Wheel 15x5 Anthracite & Polished Lip, 5x205 | VW Beetle 1950–1967, Ghia 1956–1966 & Type 3 (00-9754-0)
Couldn't load pickup availability
Short answer: EMPI 00-9754-0 is a single 15x5 Torque Star 5-spoke alloy wheel, anthracite with a polished lip, in the 5x205 wide-five pattern with a +16mm offset (3-1/2 in backspacing). It fits the 1950–1967 VW Beetle, 1956–1966 Karmann Ghia and 1961–1965 Type 3. It takes 60° cone-seat M12x1.5 lug bolts. It is not listed for the wide-five Bus. Sold each, with center cap and valve stem.
Part numbers: EMPI 00-9754-0 · 0097540 · UPC 707924414288
The Torque Star is EMPI's take on the classic American five-spoke mag, here with a dark anthracite center and a bright machined lip, sized 15x5 for the early wide-five Bug and Ghia. It is a different wheel from the 5x130 Torque Star II. Order four for a matched set, or one as a spare.
Vehicle Fitment
| Years | Vehicle | Notes |
|---|---|---|
| 1950–1967 | VW Beetle (sedan & convertible) | 5x205 wide-five drums |
| 1956–1966 | VW Karmann Ghia | 5x205 (the 1967 Ghia changed to 4x130) |
| 1961–1965 | VW Type 3 | 5x205 before the 1966 change to 4x130 |
| 1950–1967 / 1968–1970 | VW Split Bus / early Bay Bus | Does not fit — the wide-five Bus uses M14x1.5 bolts and needs load-rated wheels; ask us. This wheel is specified for M12x1.5 bolts and EMPI publishes no Bus fitment or load rating for it. |
| 1967–1974 | VW Karmann Ghia | Does not fit — 4x130. See 4x130 wheels |
| 1968–1979 | VW Beetle & Super Beetle (and 1966–73 Type 3) | Does not fit — 4x130. See 4x130 wheels |
| 1971–1979 | VW Bay Bus | Does not fit — 5x112. See Bay Bus 5x112 wheels |
| All | Porsche 911 / 912 and 5x130-converted VW | Does not fit — 5x130. For 5x130 see the Torque Star II (10-2051-0) |
Specifications
| Spec | Value |
|---|---|
| Part number | 00-9754-0 |
| Style / finish | EMPI Torque Star 5-spoke, anthracite with polished lip |
| Size | 15 x 5 in |
| Bolt pattern | 5x205mm (VW Wide-5) |
| Offset / backspacing | +16mm ET / 3-1/2 in (EMPI catalog data) |
| Center bore | Not published by EMPI |
| Lug seat & thread | 60° conical (tapered) seat, M12x1.5, 5 per wheel |
| Included | Center cap and valve stem (per EMPI) |
| Recommended tire | 155R15 or 165R15 (165/80R15 is the common modern size) |
| Shipping weight | 14.1 lb (EMPI data) |
| Boxed dimensions | 17 x 17 x 8 in (EMPI data) |
| Sold as | Each |
What's Included
- One EMPI Torque Star 15x5 wheel, 5x205, anthracite with polished lip
- Center cap and valve stem
Not included: tire and lug bolts. You need five M12x1.5 60° cone-seat lug bolts per wheel — EMPI 00-9711-0 is a set of five, on our EMPI chrome lug bolt listing. A replacement cap (EMPI 00-9720-0) is on our Dish & Torque Star cap listing.
Why It Matters
Stock wide-five VW steel wheels use ball-seat bolts. The Torque Star uses a 60° cone seat, and ball-seat bolts in a cone-seat hole only touch on a thin ring and can work loose. Buy the matching 60° bolts with the wheel. The wide-five Bus uses M14x1.5 lug bolts and carries more weight, and EMPI publishes no Bus fitment or load rating for this wheel, so we do not list it for the Bus.
Install Notes
- Confirm your hub is 5x205 before ordering (Beetle through 1967, Ghia through 1966, Type 3 through 1965).
- Test-fit before mounting a tire: check brake drum and fender clearance.
- Torque to your factory manual or the bolt maker's spec in a star pattern and re-check after the first 50 miles.
Frequently Asked Questions
- Will the EMPI Torque Star 15x5 fit my 1966 Beetle? Yes. The 1950–1967 Beetle and 1956–1966 Karmann Ghia use the 5x205 wide-five pattern this wheel is drilled for. The 1967 Karmann Ghia changed to 4x130, so it does not fit.
- Is this the same as the Torque Star II? No. The Torque Star II (10-2051-0 / 10-2050-0) is a 5x130 Porsche-pattern wheel. This 00-9754-0 is drilled 5x205 for early VWs.
- Does the Torque Star fit a VW Bus? We do not list it for any Bus. The 1950–1970 wide-five Bus uses M14x1.5 bolts (this wheel is specified for M12x1.5) and needs load-rated wheels; the 1971–1979 Bay Bus is 5x112.
- Do these come with lug bolts? No. Each wheel comes with a center cap and valve stem. You need five M12x1.5 60° cone-seat lug bolts per wheel, such as EMPI 00-9711-0 (set of five).
- What is the offset of the Torque Star 00-9754-0? +16mm, which is about 3-1/2 in of backspacing on this 15x5 wheel.
- Is it sold as a set? No, it is sold each. Order four for a full set.
