EMPI Upgraded Accelerator Pedal Kit — Sealed Roller Bearing (98-1093-0)

If your gas pedal sticks at the top, drops in steps, or feels gritty under your foot, the problem is usually the stock pedal arm and its roller. They wear, bind on the throttle cable, and chew up the cable end. EMPI 98-1093-0 replaces the pedal, pad and arm with a stock-looking assembly that rides on a sealed long-life roller bearing. You get a pedal that moves freely, returns cleanly and gives you smooth take-offs again.

Key Features & Benefits

• Sealed roller bearing: it replaces the plain stock roller, which is what binds and drags on the throttle cable.
• Easier on the cable: a free-turning roller stops the side load that frays and wears accelerator cables.
• Stock look, stock location: it mounts on the factory floor hinge plate, so the pedal sits where your foot expects it.

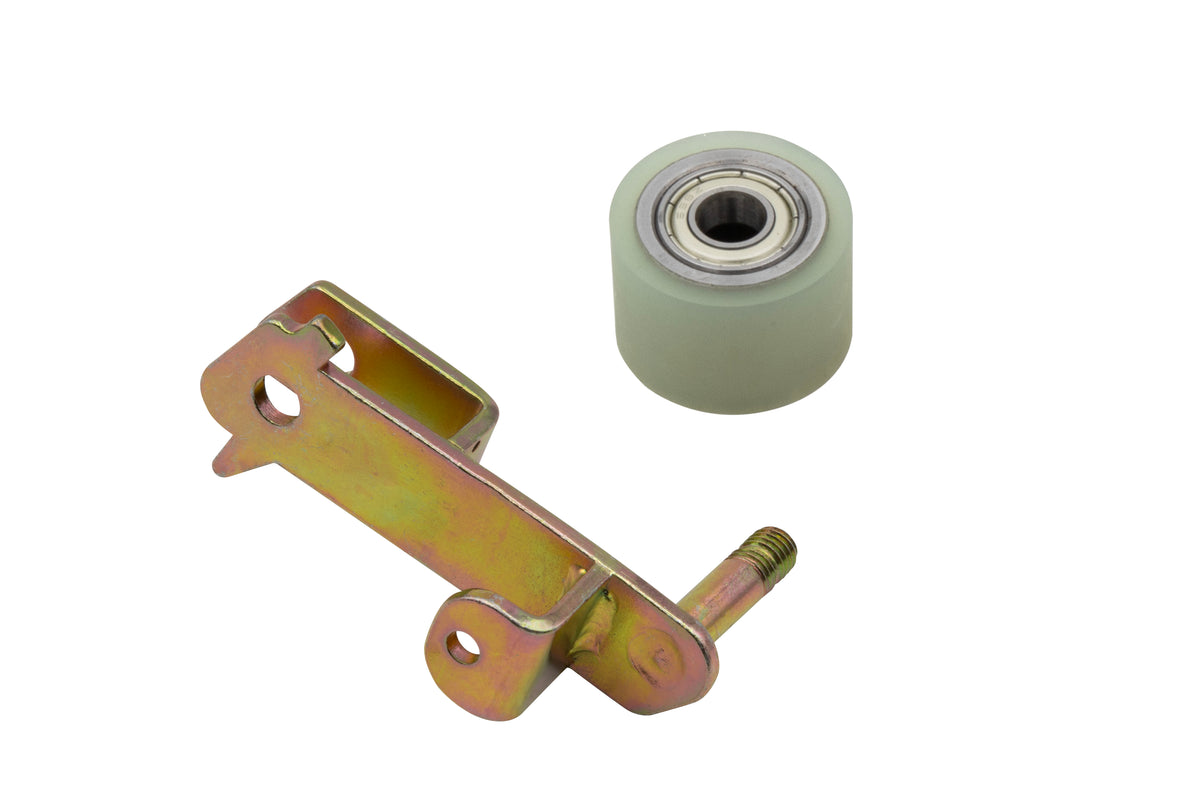

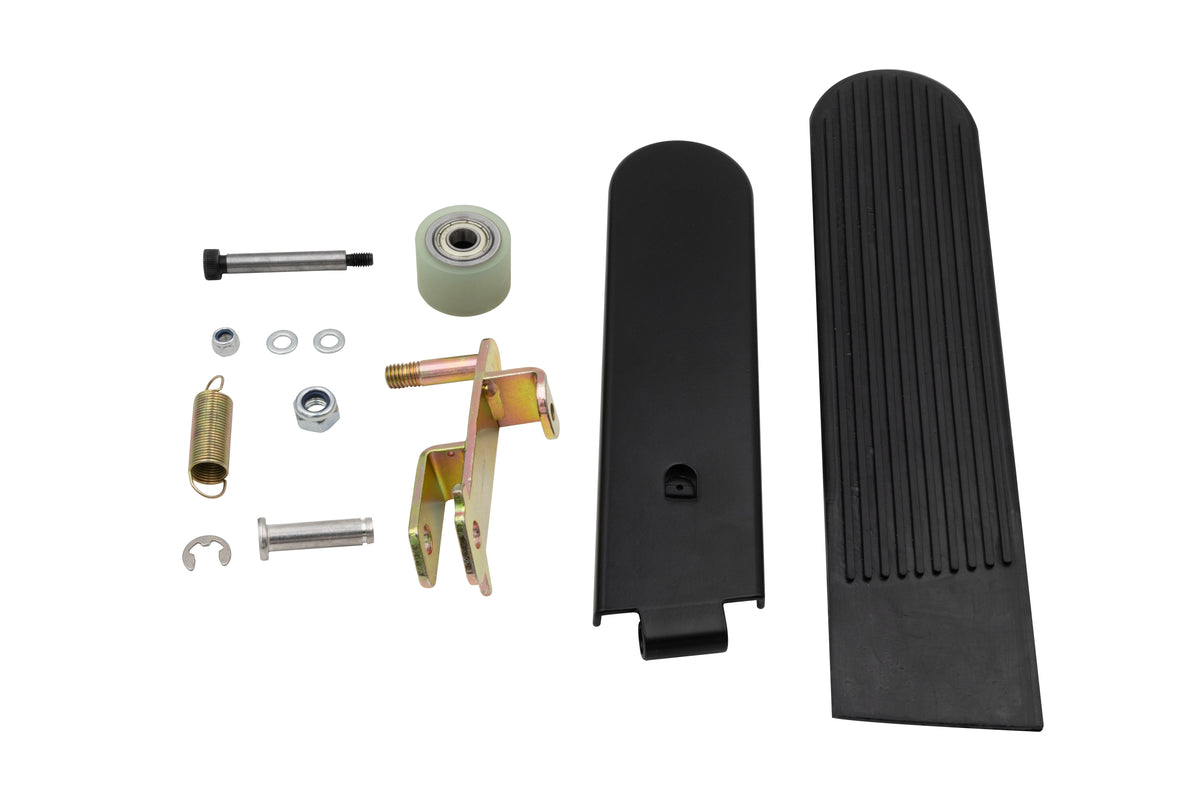

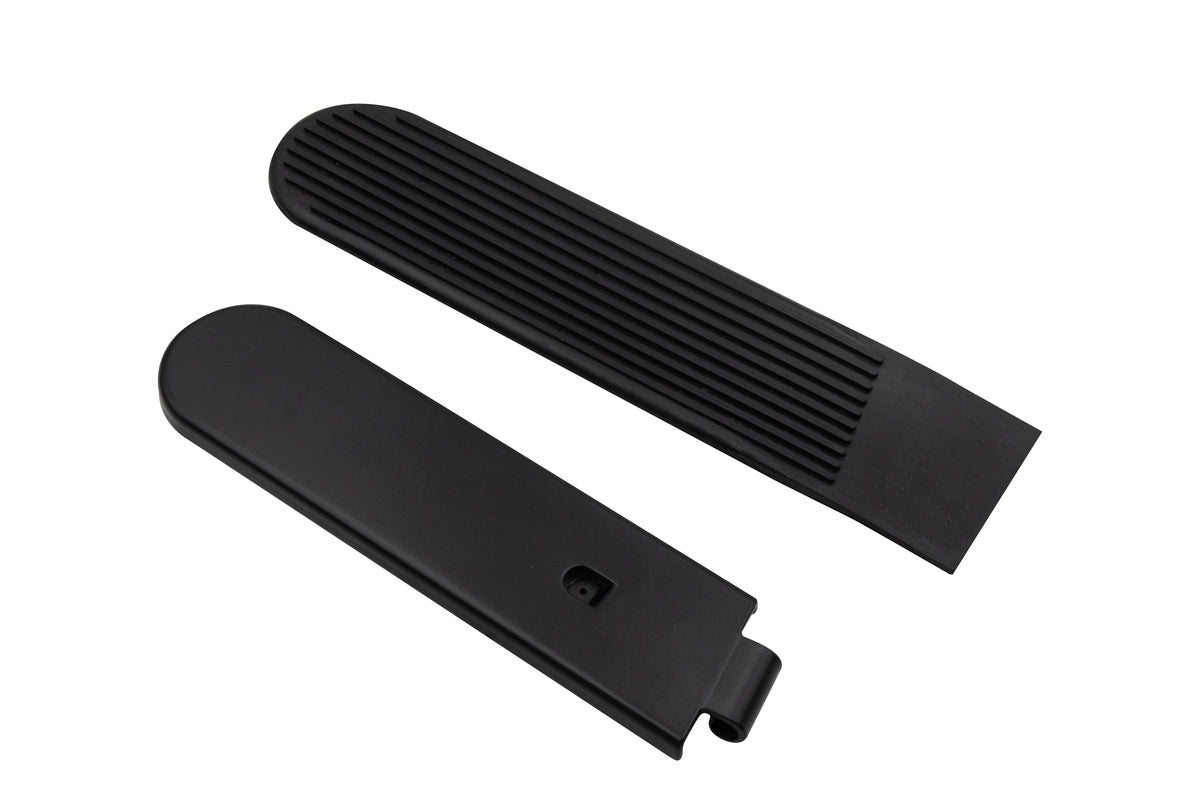

• Complete kit: pedal, pad, EMPI arm with the roller bearing, and hardware in one box.
• Works with EMPI's Deluxe pedal assembly (00-4526-B), per EMPI.
• Genuine EMPI: sold by an authorized EMPI dealer.

Fitment

This kit fits 1967–1979 air-cooled VW Type 1 cars with the floor-hinged accelerator pedal (the August 1967-on pedal cluster).

• CONFIRMED (EMPI): VW Beetle 1967–1979 and Super Beetle 1971–1979. EMPI's price file lists VW Type 1 from 08/1967.
• CONFIRMED (EMPI): dune buggies built on a 08/1967–07/1971 VW pan and Baja Bugs from 08/1968.
• CONFIRMED (dealer-listed, three dealers agree): Karmann Ghia 1967–1974 and Thing 1973–1974.
• NOT CONFIRMED: Type 3 (two dealers list it, EMPI does not), Type 2 Bus (it uses a different pedal), and any car built before August 1967.

Technical Specifications

• Part Number: EMPI 98-1093-0
• Type: Accelerator pedal kit with sealed-bearing roller
• Includes: Pedal, pedal pad, EMPI arm with roller bearing, hardware
• Installation: Pivot hole in the stock pedal hinge plate must be drilled slightly larger
• Dealer-cited OE references: 111-721-507F (accelerator pedal), 113-798-507 (pedal repair kit)
• UPC: 707924431490
• Country of Origin: Mexico
• Shipping Weight: 1.1 lb
• Package Dimensions: 17.62 x 7.75 x 1.5 in

Installation Notes

• Disconnect the accelerator cable at the pedal before you pull the old pedal off the hinge plate.
• Drill the hinge plate's pivot hole out to take the new pivot pin (dealers quote 6.2mm). Deburr it so the pin turns freely.
• Check the cable end where it rides on the roller. If it is frayed or kinked, replace the accelerator cable now.
• With the pedal on the floor, the carburetor throttle must reach wide open without the cable stretching. Adjust at the carburetor, then check that the pedal returns to idle on its own.

Frequently Asked Questions

• Does this fit a 1972 VW Beetle? Yes. EMPI lists it for all 1967–1979 Type 1 Beetles, including the Super Beetle, and 1972 falls in that range.
• Does it fit a 1965 Beetle? No. The kit starts at the August 1967 (1968 model year) floor pedal cluster. Earlier cars use a different pedal and hinge; see the EMPI 98-7088-B repair kit for 1958–1966.
• Is it a bolt-in? Almost. It mounts on the stock floor hinge plate, but the pivot hole in the hinge has to be drilled out slightly (dealers quote 6.2mm) to take the new pivot pin. Plan on a drill.
• What problem does it fix? A worn stock pedal arm binds and drags its roller against the throttle cable, which makes take-offs jerky and wears the cable. The sealed-bearing roller moves freely, so the pedal returns cleanly and the throttle feels smooth.
• What is in the kit? Pedal, pedal pad, EMPI arm with the sealed long-life roller bearing, and the mounting hardware.
• What is the part number? EMPI 98-1093-0 (short number 1093). UPC 707924431490.
• How does it ship? As a normal parcel, about 1.1 lb in a 17.6 x 7.75 x 1.5 in package. It is not hazmat and has no ground-only restriction. It is set up as backorder-OK: if it is not on our shelf, we order it from EMPI and ship when it arrives.
• Are you an authorized EMPI dealer? Yes. Washburn's Metal is an authorized EMPI dealer, and this is a genuine EMPI part shipped in EMPI's packaging.
