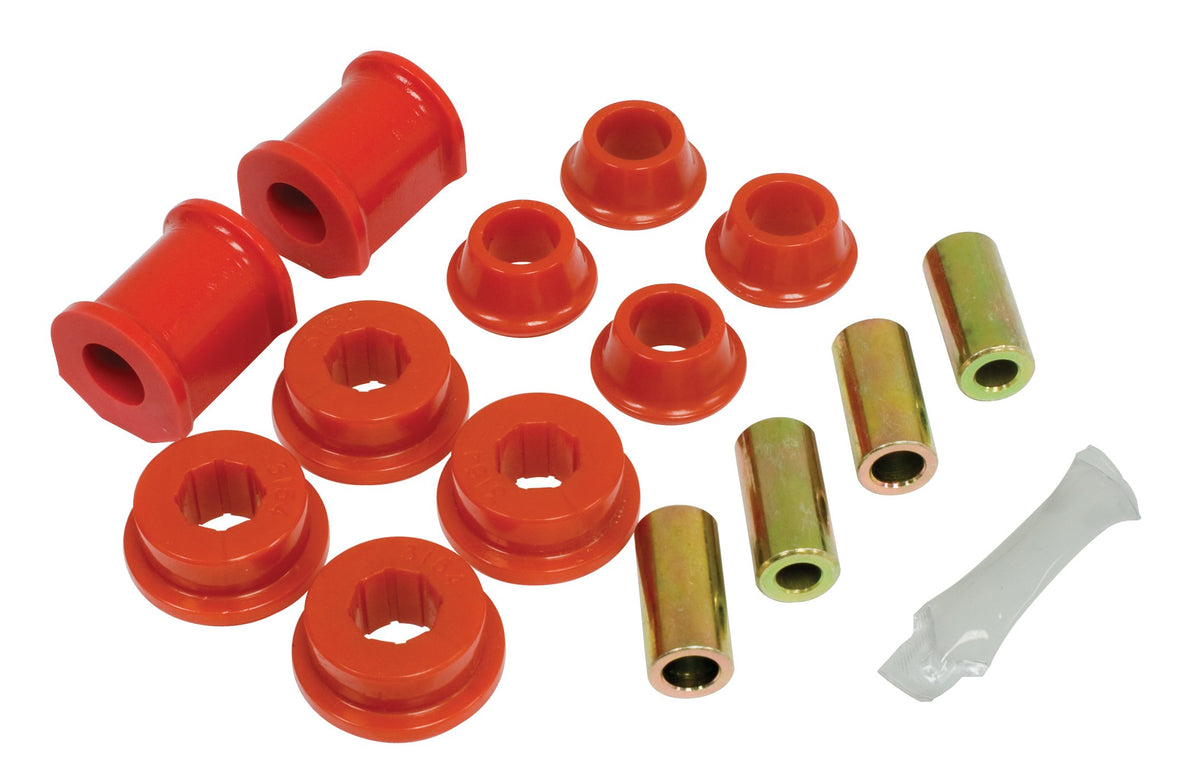

EMPI Urethane Front Control Arm Bushing Kit — 15-Piece with Grease | VW Super Beetle 1971–1973 (16-5107-0)

EMPI Urethane Front Control Arm Bushing Kit — Super Beetle 1971–1973 (16-5107-0)

A 1971–73 Super Beetle that wanders, clunks over bumps, or shimmies at speed very often has tired front control-arm and sway-bar bushings. The rubber squashes, the arm moves, and the alignment walks away. EMPI 16-5107-0 is a 15-piece urethane bushing kit with grease that replaces those soft rubber pieces. It firms up the front end and holds the alignment where you set it.

Key Features & Benefits

• Urethane, not rubber: less flex under braking and cornering, so steering is more precise and the alignment stays put.
• 15-piece kit: covers the front control-arm and sway (strut) bar bushing locations in one box.
• Grease included: urethane has to be greased at install, or it squeaks. The grease is in the kit.
• Shimmy fix: worn front bushings are a common cause of Super Beetle shimmy, so start here before chasing the steering box.
• Genuine EMPI: sold by an authorized EMPI dealer.

Fitment

This kit fits the VW Super Beetle (Type 1 1302/1303) strut front suspension, 1971–1973.

• CONFIRMED: VW Super Beetle sedan and convertible, US model years 1971–1973 (EMPI application data: Type 1 1302/03 to 07/1973; JBugs and SoCal Auto Parts list 1971–73).
• DEALER-LISTED: EMPI's data also lists VW Buggy 08/1969–07/1971 and VW Baja 08/1969–07/1973 on the matching Super Beetle front suspension.
• NOT CONFIRMED: 1974–1979 Super Beetle and convertible, standard torsion-beam Beetles, Karmann Ghia, and Bus. Check your control arm and sway bar mounts if the car is a 1974 or later.

Technical Specifications

• Part Number: EMPI 16-5107-0
• Material: urethane
• Contents: 15 pieces plus grease
• Location: front control arm and sway (strut) bar bushings
• Sold As: 15-Piece Kit
• UPC: 707924350791
• Country of Origin: China
• Shipping Weight: 1.16 lb
• Package Dimensions: 12 x 9 x 2 in

Installation Notes

• Support the car on stands under the body, not the control arms, and get the arm and sway bar out cleanly.
• Push or cut out the old rubber, and clean the bores and sleeves back to bare, rust-free metal.
• Grease every urethane contact surface with the supplied grease. Dry urethane squeaks.
• Tighten the pivot bolts with the car at ride height, then get a front-end alignment.

Frequently Asked Questions

• Does this fit a 1972 VW Super Beetle? Yes. EMPI lists this kit for the Type 1 1302 / 1303 Super Beetle to 07/1973, which covers US model years 1971–1973.
• Will it fit a 1974–1979 Super Beetle? We don't list it for those years. The 1974-and-later front control arm and sway bar mounting changed, so check your car first.
• Does it fit a standard (torsion-beam) Beetle? No. It is for the Super Beetle strut front suspension. Beam-front Beetles use different bushings.
• What is the part number? EMPI 16-5107-0 (often listed as EMPI 16-5107). UPC 707924350791.
• What's in the kit? 15 urethane pieces with grease. Dealers describe split bushings and sleeves for the inner control-arm mounts and for the sway (strut) bar, plus the strut-bar-to-chassis bushings.
• How does it ship? As a normal parcel (1.16 lb, 12 x 9 x 2 in). It is not hazmat and has no ground-only restriction.
• Are you an authorized EMPI dealer? Yes. Washburn's Metal is an authorized EMPI dealer, and this is a genuine EMPI part.
