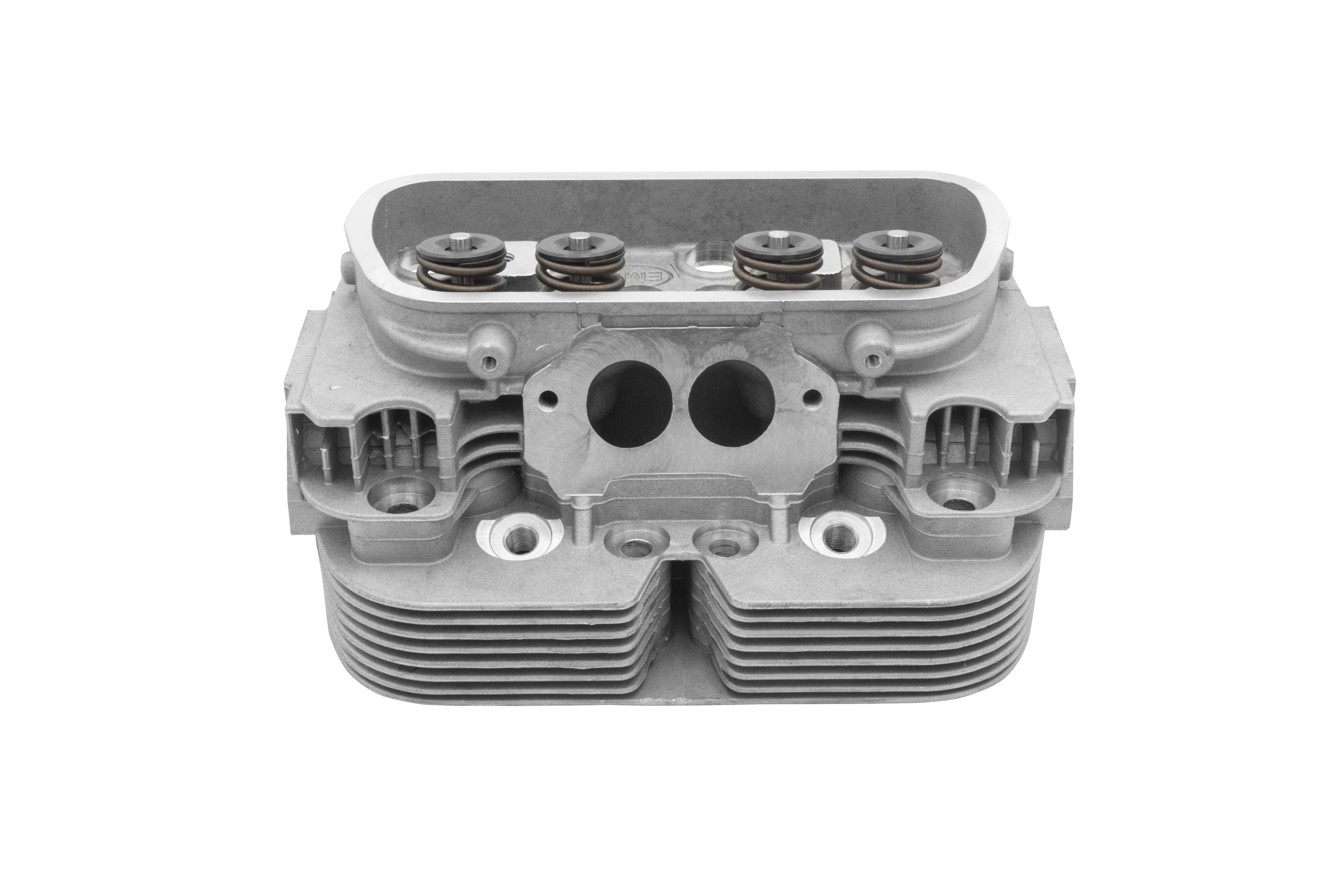

EMPI GTV-2 Dual Port 90.5/92mm Single Spring 98-1333-B

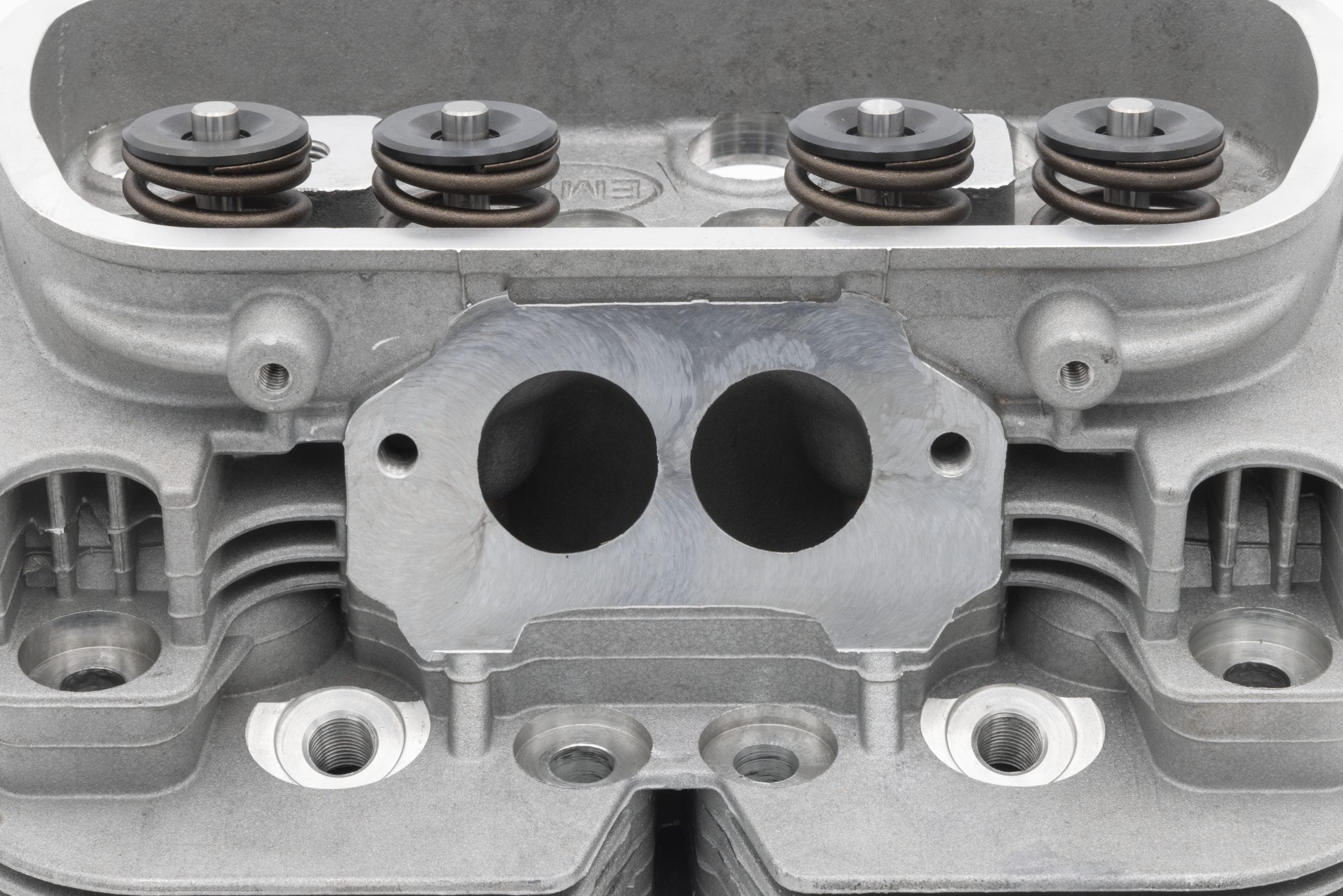

EMPI 98-1333-B - Combustion Chamber

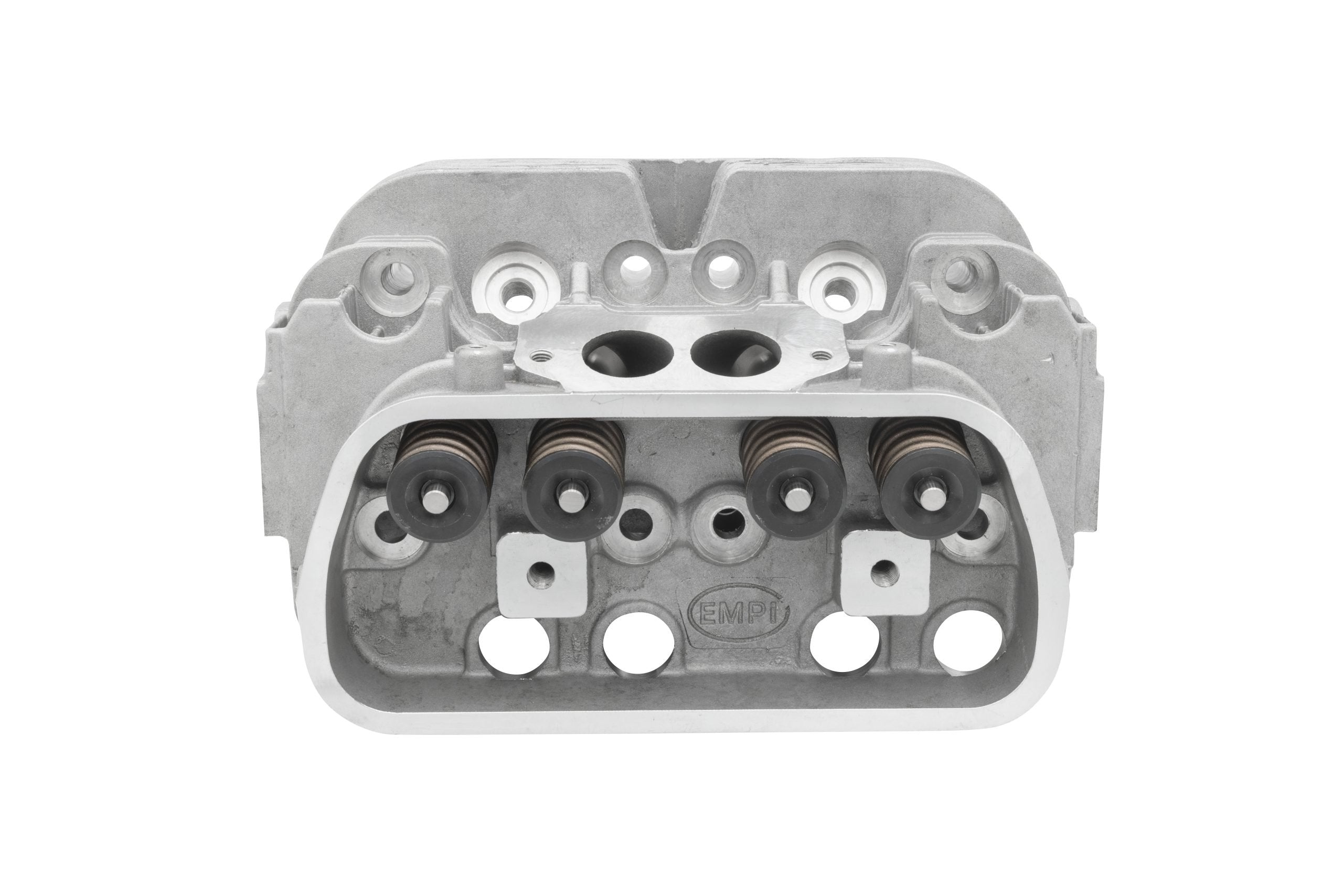

EMPI 98-1333-B - Intake Port

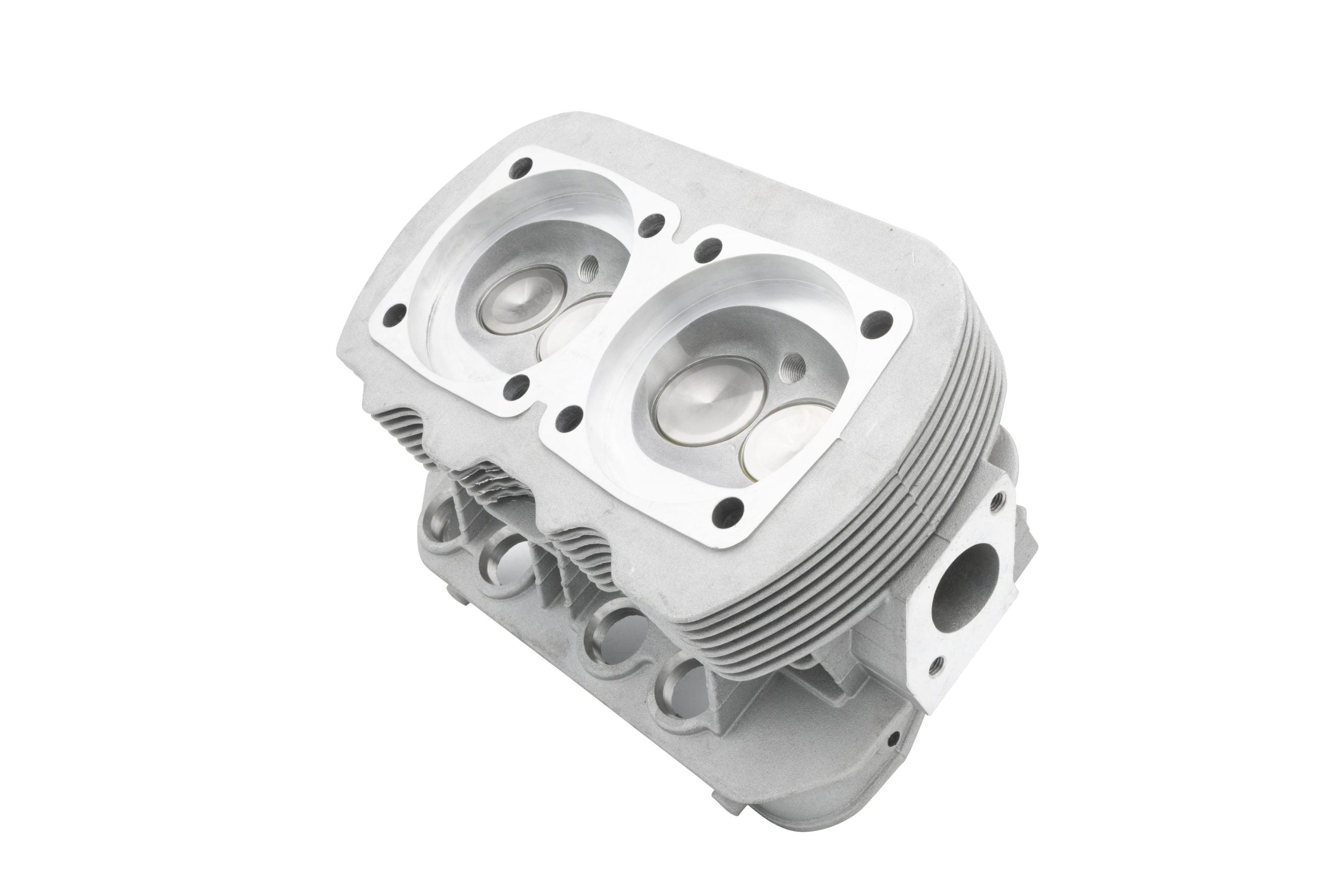

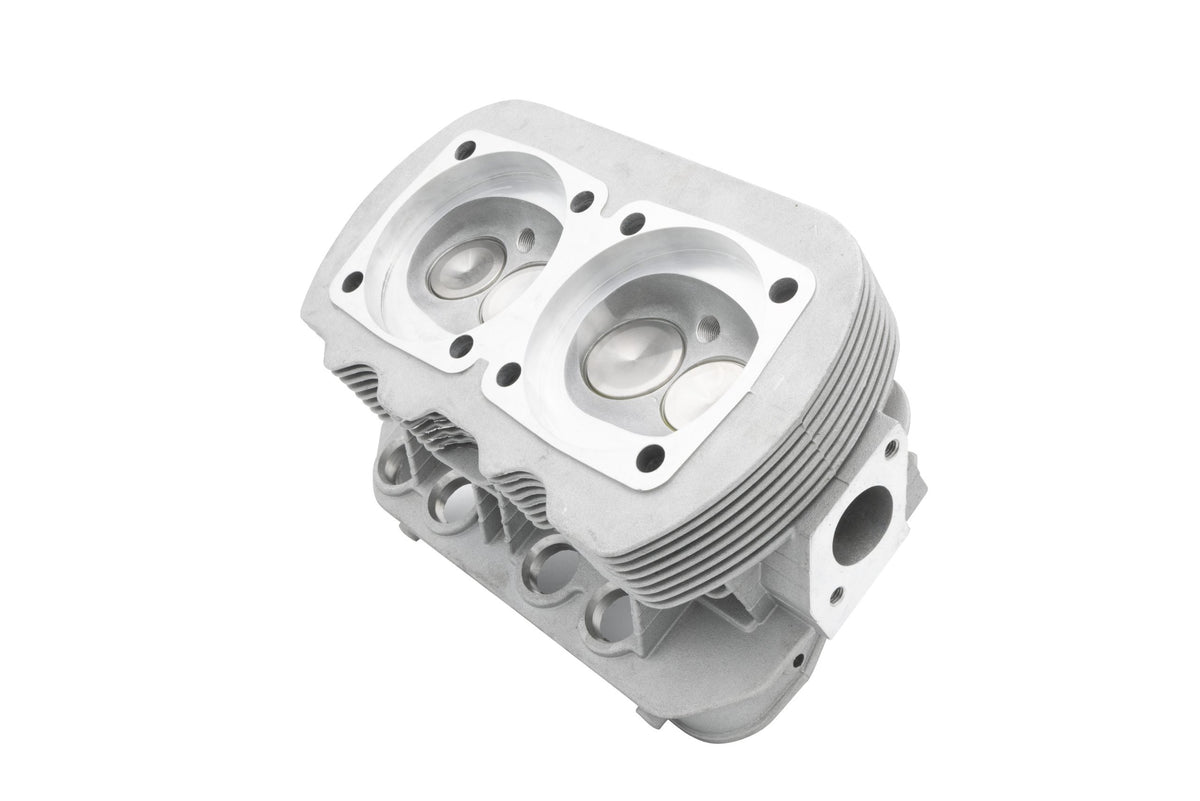

EMPI 98-1333-B - Exhaust Port
EMPI GTV-2 Dual Port 90.5/92mm Single Spring 98-1333-B
EMPI 98-1333-B - Combustion Chamber
EMPI 98-1333-B - Intake Port
EMPI 98-1333-B - Exhaust Port
EMPI

EMPI GTV-2 Dual Port Cylinder Head | VW Type 1 Aircooled | 90.5/92mm, 40/35.5mm SS Valves, Single Spring (98-1333-B)

Not currently available

Not currently available.

This part is discontinued or out at our supplier. We often have used stock, a substitute, or can fabricate an alternative.

Call (657) 438-7002 or send us your chassis number.

No reviews
Usually ships within 24 hours
$565.70
Product details
  • Vendor EMPI
  • SKU 98-1333-B
  • Barcode 707924443417
  • Fits
    • All Years|VW|Beetle (dual-port engine, 90.5/92mm bore)
    • All Years|VW|Bus (dual-port engine)
    • All Years|VW|Karmann Ghia

Not sure it fits? Call the shop: (657) 438-7002.

Ask an expert

Description Shipping information Reviews

EMPI GTV-2 Dual Port Cylinder Head — 90.5/92mm Bore, 40/35.5mm Stainless Valves, Single Spring (98-1333-B)

The GTV-2 casting is built to grow with your build, and this is the 90.5/92mm version for stroker motors. EMPI's GTV-2 dual-port head (98-1333-B) is machined for 90.5mm and 92mm pistons, with ports 20% larger than stock and extra chamber material — run it as-is for strong performance or hand/CNC port it from mild to wild. 40×35.5mm stainless Manley valves, single hi-rev springs. Sold each.

Vehicle Fitment

  • VW Beetle: dual-port performance builds, 90.5mm or 92mm bore (1776cc / 1835cc)
  • VW Bus: dual-port performance builds
  • VW Karmann Ghia: dual-port performance builds
  • VW Type 3: dual-port performance builds
  • VW Thing: dual-port performance builds

Not confirmed: stock 85.5mm or 94mm bore (use the matching-bore GTV-2 head), single-port engines, Type 4 engines.

Why Choose EMPI?

You get genuine parts backed by real support.

Key Features & Benefits

  • Port-ready GTV-2 casting: 20% larger intake and exhaust ports than stock, with added material around the combustion chamber for deep fly cutting.
  • Machined for 90.5/92mm: direct fit for 1776cc and 1835cc builds.
  • Stainless Manley valves: 40mm intake / 35.5mm exhaust.
  • Single hi-rev valve springs: with chromoly retainers and hardened keepers.
  • Bronze valve guides: for durability.
  • 3-angle performance valve job.
  • Sold each.

Technical Specifications

  • Bore: 90.5mm / 92mm, GTV-2 dual port casting
  • Valves: 40mm intake / 35.5mm exhaust, stainless Manley
  • Springs: single hi-rev
  • Ports: 20% larger than stock, port-ready
  • Spark plugs: 12mm 3/4" reach
  • Part Number: 98-1333-B (UPC 707924443417)

Important: Lash caps (P/N 00-4006-0) are required for all stainless steel valve applications — sold separately. 12mm long-reach spark plugs must be used in place of stock Bosch plugs.

Frequently Asked Questions

  • What bore are these for? 90.5mm and 92mm pistons (1776/1835cc).
  • Can I port them? Yes — the GTV-2 casting is designed for hand or CNC porting.
  • Single or dual springs? Single hi-rev springs; for high-lift cams choose the dual-spring version.
  • Do I need lash caps? Yes — required with stainless valves, sold separately (00-4006-0).
  • What's the part number? EMPI 98-1333-B (UPC 707924443417).
  • Are you an authorized dealer? Yes.
