EMPI GTV-2 Dual Port Cylinder Head | VW Type 1 94mm | 40/35.5mm SS Valves, Dual Spring (98-1336-B)

EMPI GTV-2 Dual Port Cylinder Head — 94mm Bore, 40/35.5mm SS Valves, Dual Spring (98-1336-B)

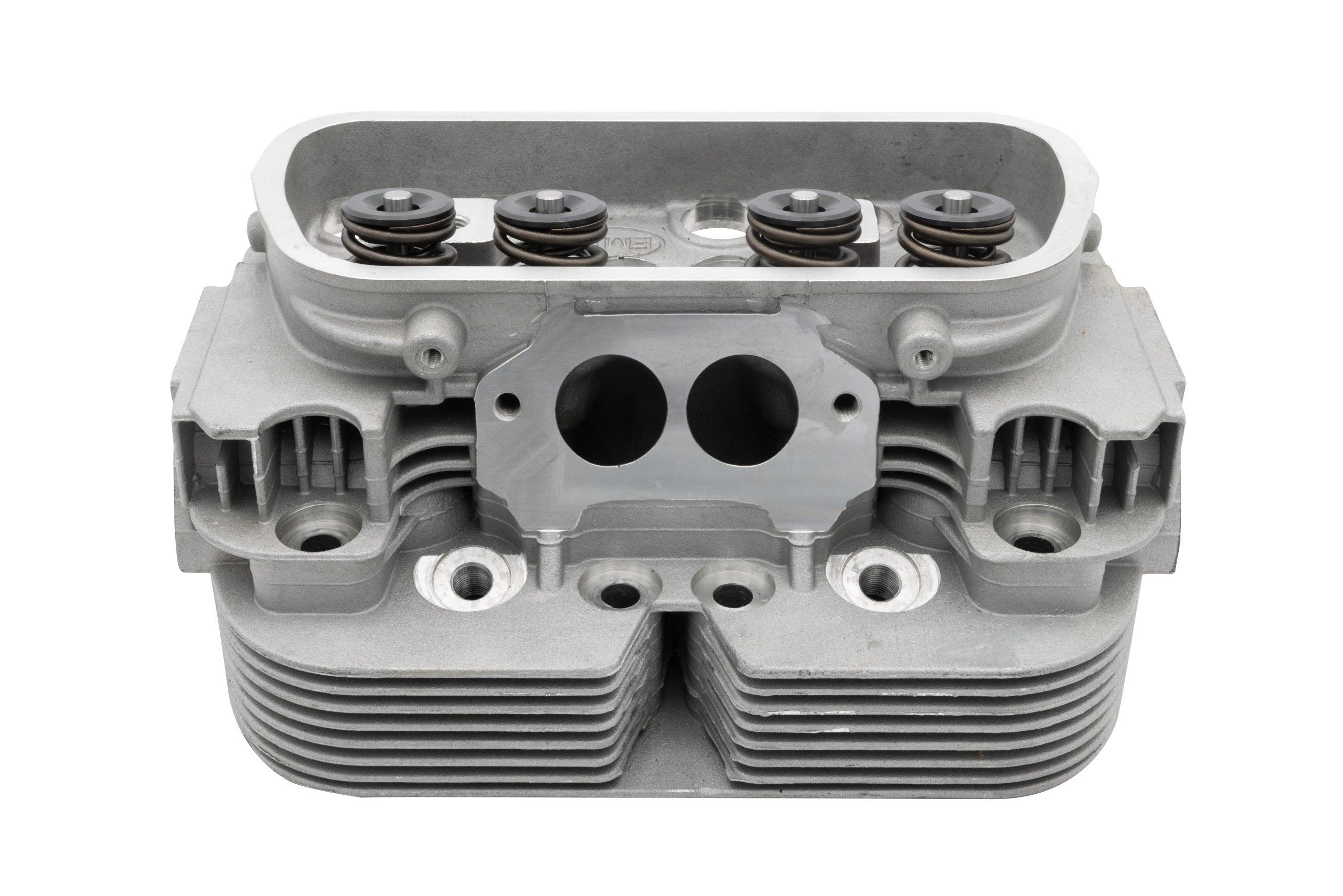

Running a high-lift cam in a 94mm big-bore? This is the GTV-2 dual-port head built for it. EMPI's GTV-2 head (98-1336-B) is machined for 94mm pistons and assembled with dual hi-rev valve springs to keep up with aggressive, high-RPM camshafts.

It runs 40×35.5mm stainless Manley valves and ports 20% larger than stock — ready to run or port further. Sold each.

Vehicle Fitment

• VW Beetle: dual-port engine, 94mm bore
• VW Bus: dual-port engine
• VW Karmann Ghia: dual-port engine

Confirmed: VW Type 1 dual-port big-bore builds running 94mm bore with high-lift / high-RPM cams — 1914cc, 2110cc, 2276cc, 2332cc (Beetle, Bus, Karmann Ghia, Type 3, Thing). Not confirmed: stock 85.5mm or 90.5/92mm bore, single-port engines, Type 4 engines.

Why Choose EMPI?

Its GTV-2 heads are a staple of big-bore Type 1 builds.

Key Features & Benefits

• 94mm bore, GTV-2 dual port casting: built for big-bore Type 1 engines.
• 40mm intake / 35.5mm exhaust stainless Manley valves.
• Dual hi-rev valve springs: for high-lift performance cams.
• Chromoly retainers and hardened keepers.
• Bronze valve guides.

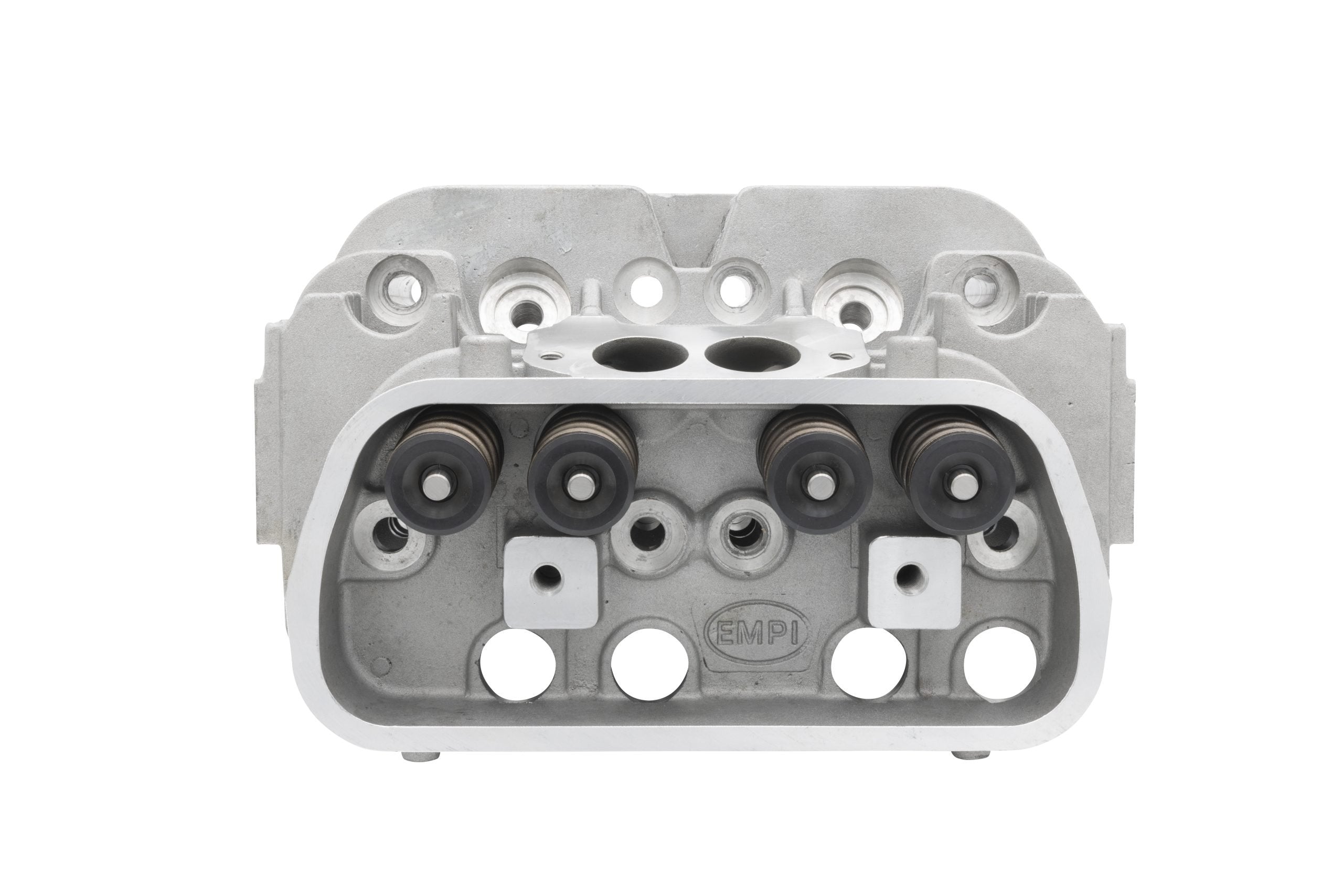

• Ports 20% larger than stock: port-ready for further flow work.

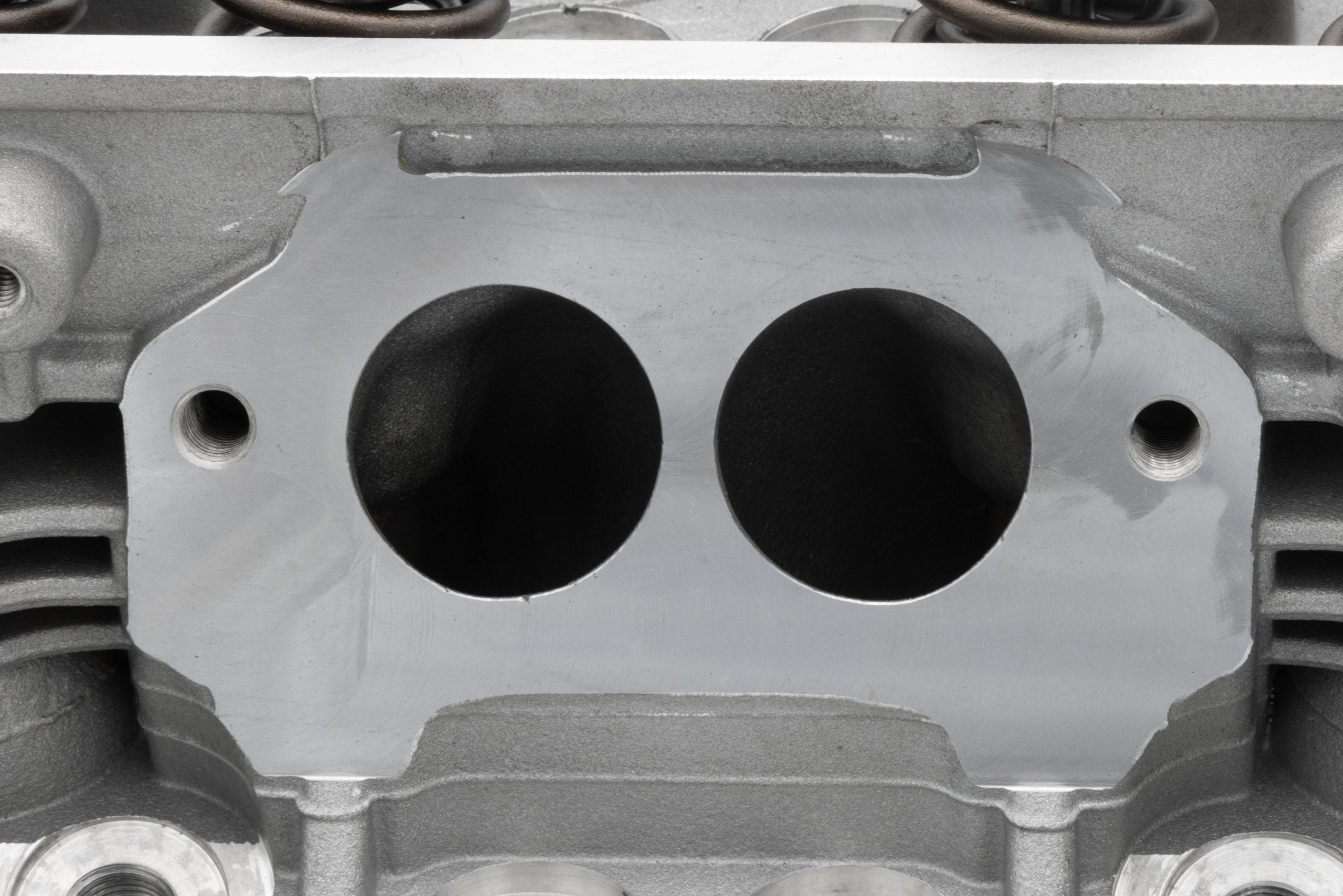

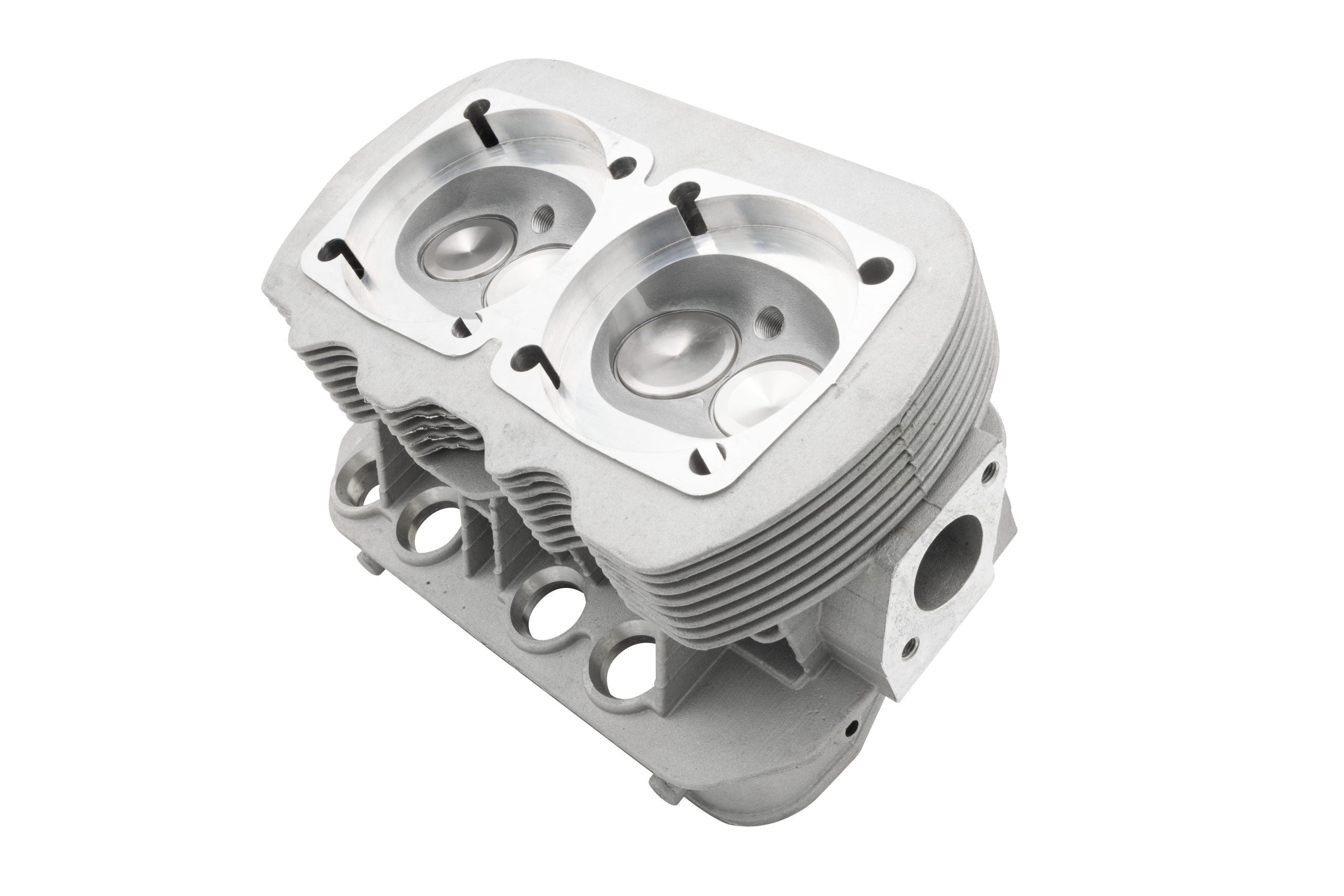

• Added material around the combustion chamber: allows deep fly cutting.
• 12mm 3/4" reach spark plug holes.
• Rocker, exhaust, and intake studs included.
• 3-angle performance valve job.
• Sold each.

Technical Specifications

• Valves: 40mm intake / 35.5mm exhaust, stainless Manley
• Springs: dual hi-rev
• Ports: 20% larger than stock, port-ready
• Spark plugs: 12mm 3/4" reach
• Part Number: 98-1336-B | UPC: 707924443448
• Sold as: each

Frequently Asked Questions

• Why dual springs? They handle high-lift, high-RPM camshafts that single springs can't keep up with.
• What bore are these for? 94mm pistons (1914-2332cc).
• Anything to check at install? Verify rocker geometry and check for coil bind with the dual springs.
• Do I need lash caps? Yes — required with stainless valves, sold separately (00-4006-0).
• What's the part number? EMPI 98-1336-B (UPC 707924443448).
• Are you an authorized dealer? Yes.

Installation

Lash caps (P/N 00-4006-0) are required for all stainless steel valve applications — sold separately. 12mm long-reach spark plugs must be used in place of stock Bosch plugs. Verify rocker arm geometry and check for coil bind with dual springs.
