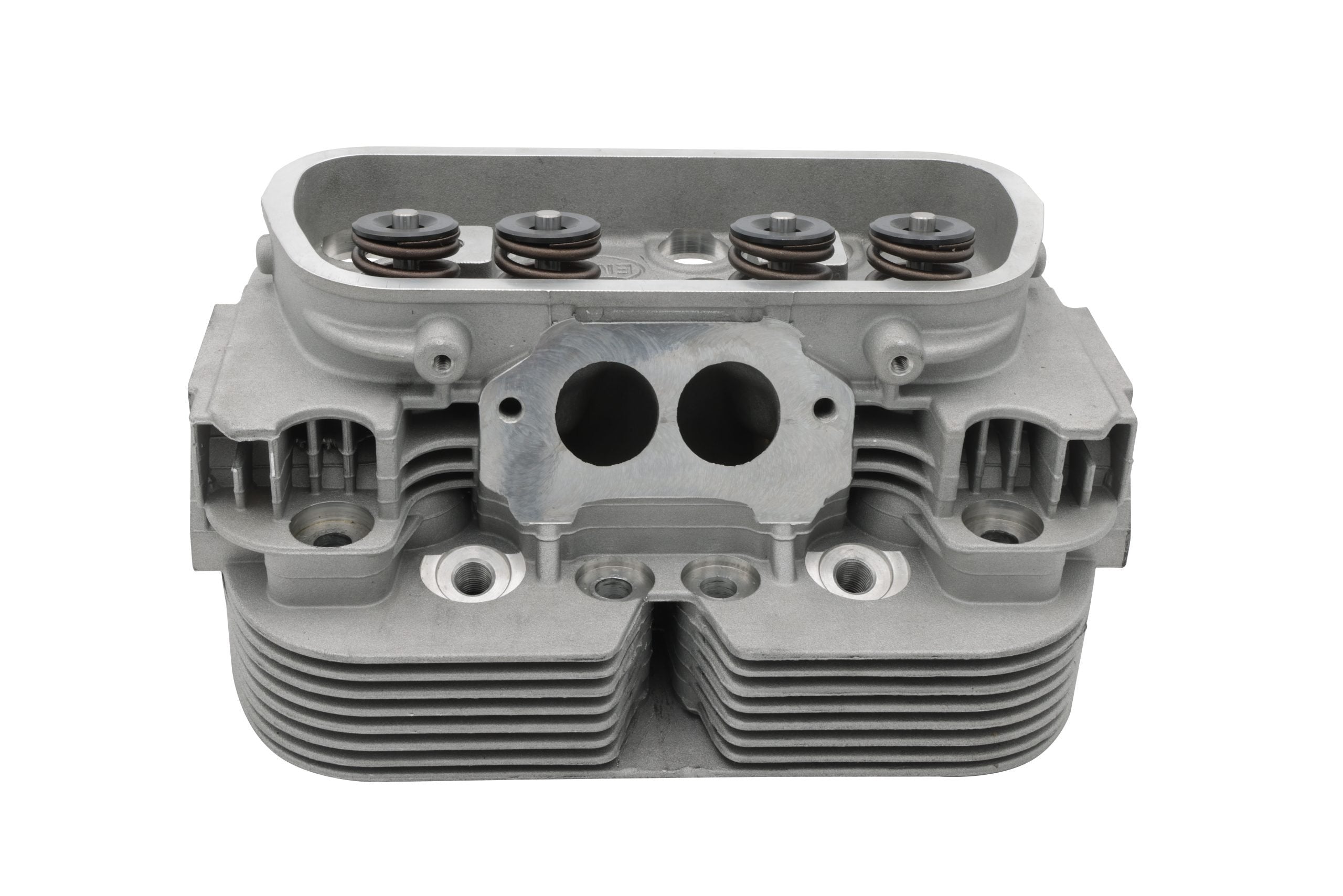

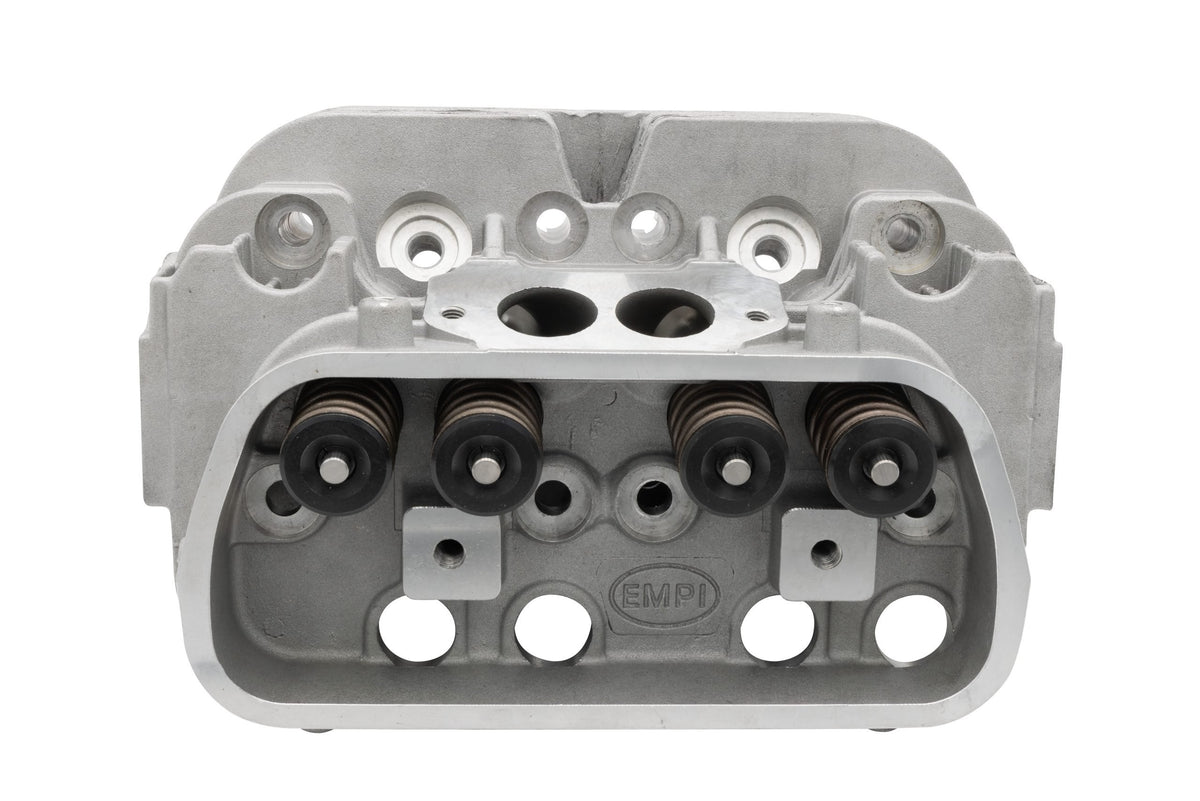

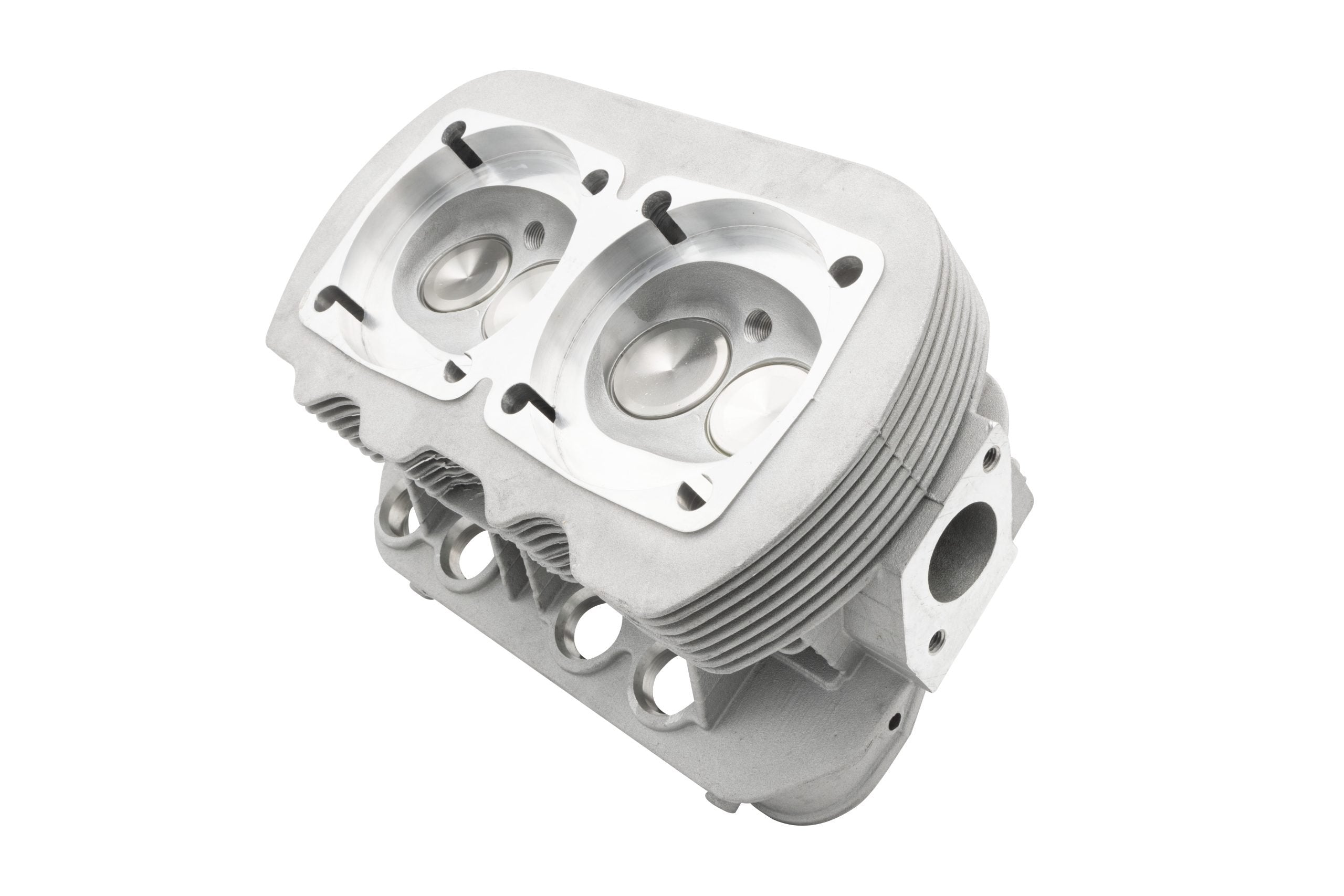

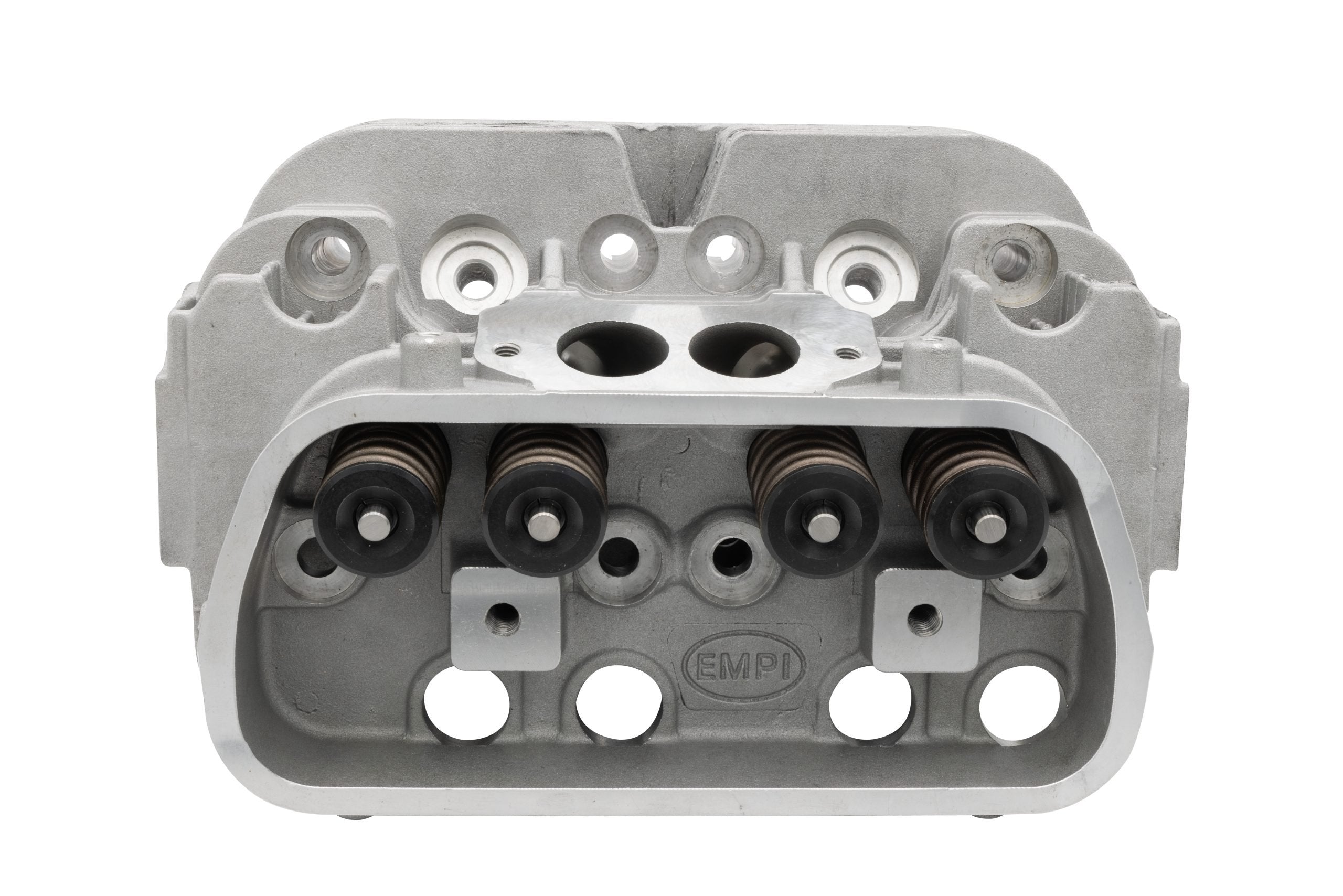

EMPI GTV-2 Dual Port Cylinder Head | VW Type 1 Aircooled | 94mm Bore, 40/35.5mm SS Valves, Single Spring

EMPI GTV-2 Dual Port Cylinder Head — 94mm Bore, 40/35.5mm Stainless Valves, Single Spring

The EMPI GTV-2 cylinder head casting out-classes the competition. Machined to fit 94mm pistons for big-displacement stroker builds, its beefed-up intake and exhaust ports allow massive porting without the need for welding. 40×35.5mm stainless Manley valves with single hi-rev springs. Sold each.

Vehicle Fitment

• VW Beetle (Type 1): dual-port performance builds, 94mm bore (1914cc / 2110cc / 2276cc)
• VW Bus (Type 2): dual-port performance builds
• VW Type 3: dual-port performance builds
• VW Karmann Ghia: dual-port performance builds
• VW Thing: dual-port performance builds

Why Choose EMPI?

The GTV-2 casting is a proven platform for high-output street and race engines.

Key Features & Benefits

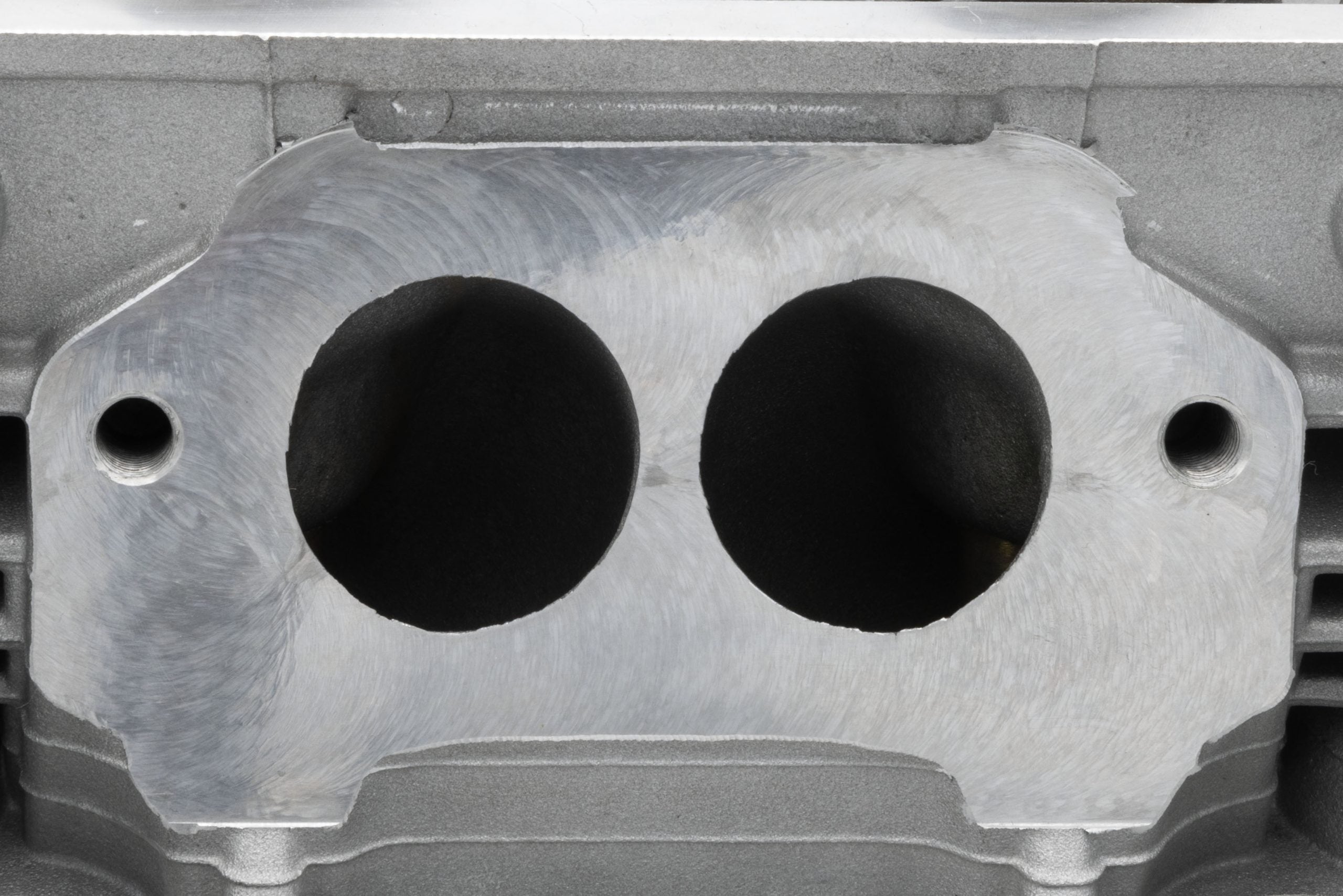

• Port-ready GTV-2 casting: 20% larger intake and exhaust ports than stock, with added material around the combustion chamber for deep fly cutting — massive porting without welding.
• Machined for 94mm: direct fit for 1914cc / 2110cc / 2276cc stroker builds.
• Stainless Manley valves: 40mm intake / 35.5mm exhaust.
• Single hi-rev valve springs: with chromoly retainers and hardened keepers.
• Bronze valve guides: for durability.
• 3-angle performance valve job.
• Studs included: rocker, exhaust, and intake studs.
• Sold each.

Technical Specifications

• Bore: 94mm, GTV-2 dual port casting
• Valves: 40mm intake / 35.5mm exhaust, stainless Manley
• Springs: single hi-rev
• Ports: 20% larger than stock
• Spark plugs: 12mm 3/4" reach

Important: Lash Caps (P/N 00-4006-0) are required for all stainless steel valve applications — sold separately. 12mm long-reach spark plugs must be used in place of stock Bosch plugs.

Frequently Asked Questions

• What bore are these machined for? 94mm pistons.
• What displacements? 1914cc, 2110cc, and 2276cc stroker builds.
• Can I port them? Yes — the GTV-2 casting has 20% larger ports and extra chamber material, allowing massive porting without welding.
• Do I need lash caps? Yes — required with stainless valves, sold separately (00-4006-0).
• What spark plugs? 12mm 3/4" long-reach, not stock Bosch.
• Are you an authorized dealer? Yes.
