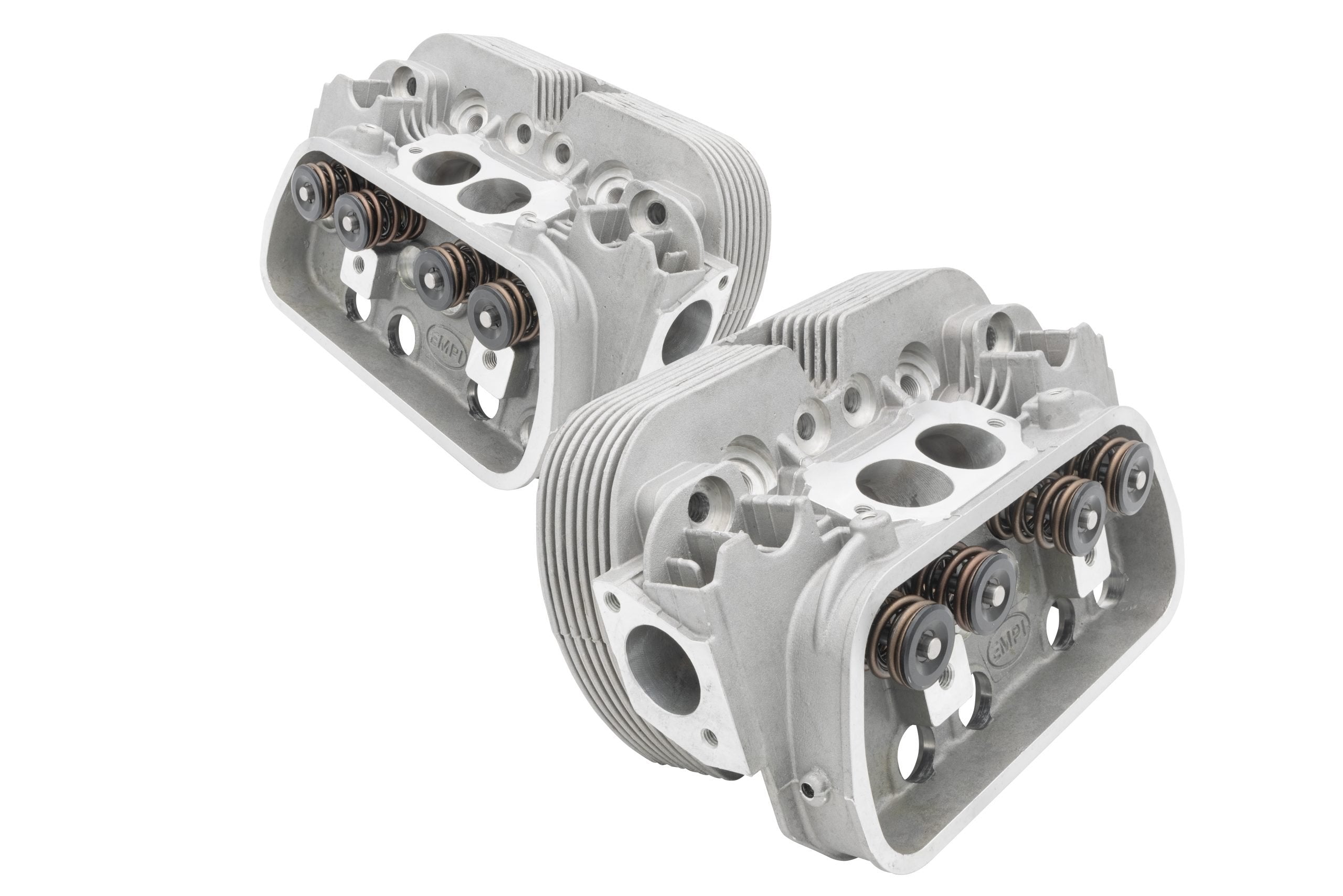

EMPI GTV-2 L7 CNC Ported Heads | VW Type 1 90.5/92mm | 44/37.5mm SS Valves, Pair (98-1554-B)

EMPI GTV-2 L7 CNC Ported Heads — 90.5/92mm, 44/37.5mm SS Valves, Pair (98-1554-B)

The L7 port is part of EMPI's high-end racing head lineup — a flow profile built for serious horsepower-per-displacement on high-RPM Type 1 engines, carrying forward much of what DRD Racing Heads offered. EMPI's GTV-2 L7 CNC heads (98-1554-B) are machined for 90.5/92mm bore with 44×37.5mm stainless valves and competition dual springs.

Sold as a matched pair.

Vehicle Fitment

• VW Beetle: 1971-1979
• VW Bus: 1971-1979
• VW Karmann Ghia: 1971-1974
• VW Type 3: 1971-1973
• VW Thing: 1973-1975

Confirmed: VW Type 1 dual-port racing builds running 90.5mm or 92mm bore with high-lift / high-RPM cams — 1776cc, 1835cc, 1914cc. Not confirmed: stock 85.5mm or 94mm bore, single-port engines, Type 4 engines.

Why Choose EMPI?

The L7 is one of EMPI's high-end racing CNC ports, optimized for horsepower-per-displacement on high-RPM engines.

Key Features & Benefits

• 90.5mm / 92mm bore, GTV-2 dual port casting.
• L7 CNC port profile: cut on a 5-axis CNC mill.
• 44mm intake / 37.5mm exhaust stainless valves.
• Competition dual valve springs.
• Chromoly retainers and hardened keepers.
• Bronze valve guides.
• Custom-fit gaskets included.
• 12mm 3/4" reach spark plug holes.
• Rocker, exhaust, and intake studs included.
• Hi-Performance 3-angle valve job.
• Sold as a matched pair.

Technical Specifications

• Valves: 44mm intake / 37.5mm exhaust, stainless
• Springs: competition dual
• Port: L7 CNC
• Spark plugs: 12mm 3/4" reach
• Part Number: 98-1554-B | UPC: 707924472219
• Sold as: matched pair

Frequently Asked Questions

• What's the L7 port for? High-end racing flow optimized for horsepower-per-displacement on high-RPM engines.
• What bore are these for? 90.5mm and 92mm pistons (1776-1914cc).
• Do I need lash caps? Yes — required with stainless valves, sold separately (00-4006-0).
• Sold each or as a pair? Matched pair.
• What's the part number? EMPI 98-1554-B (UPC 707924472219).
• Are you an authorized dealer? Yes.

Installation

Lash caps (P/N 00-4006-0) are required for all stainless steel valve applications — sold separately. 12mm long-reach spark plugs must be used in place of stock Bosch plugs. Verify rocker arm geometry and check for coil bind with dual springs.
