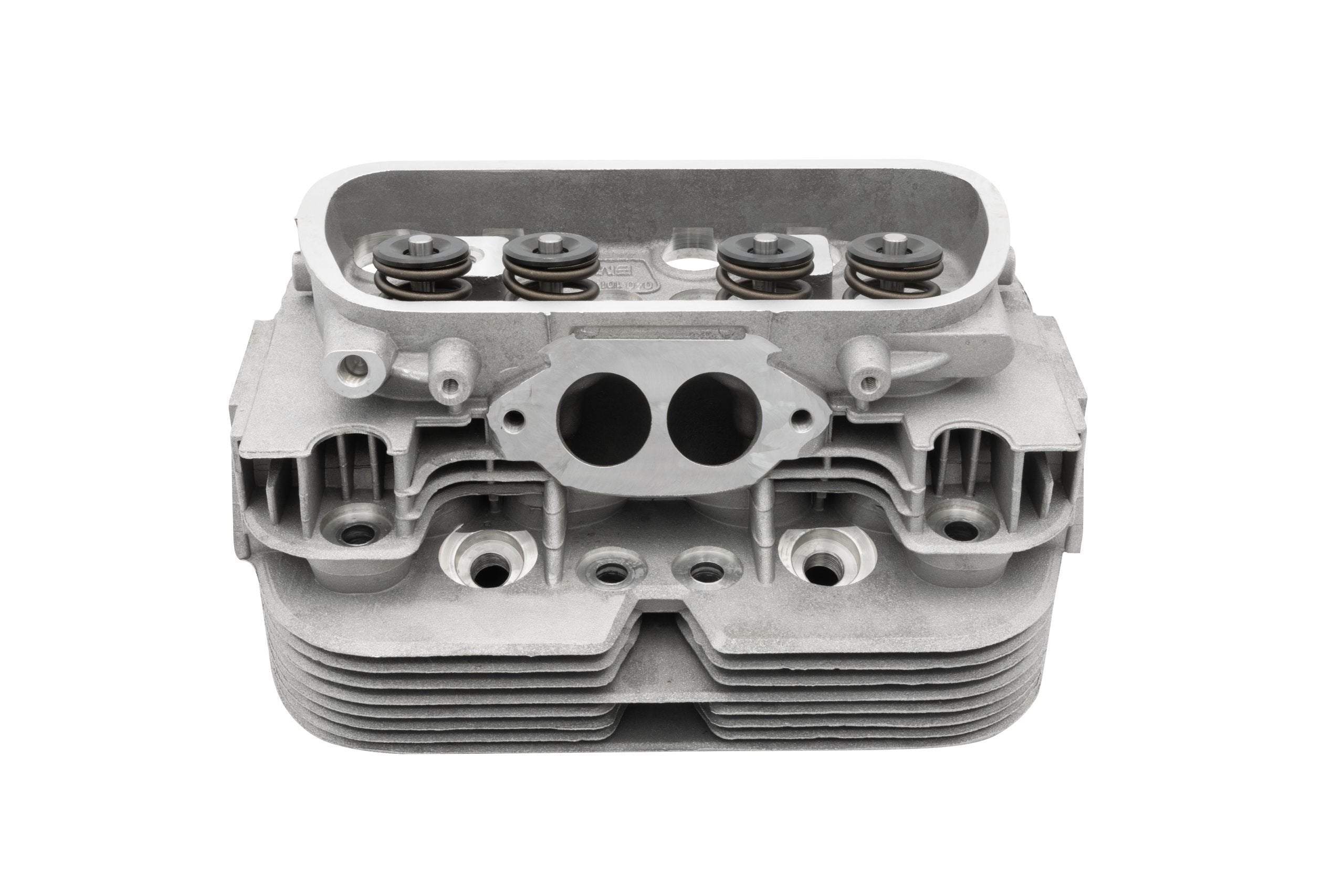

EMPI Hi-Performance Dual Port Cylinder Head 90.5/92mm 98-1374-B - Front

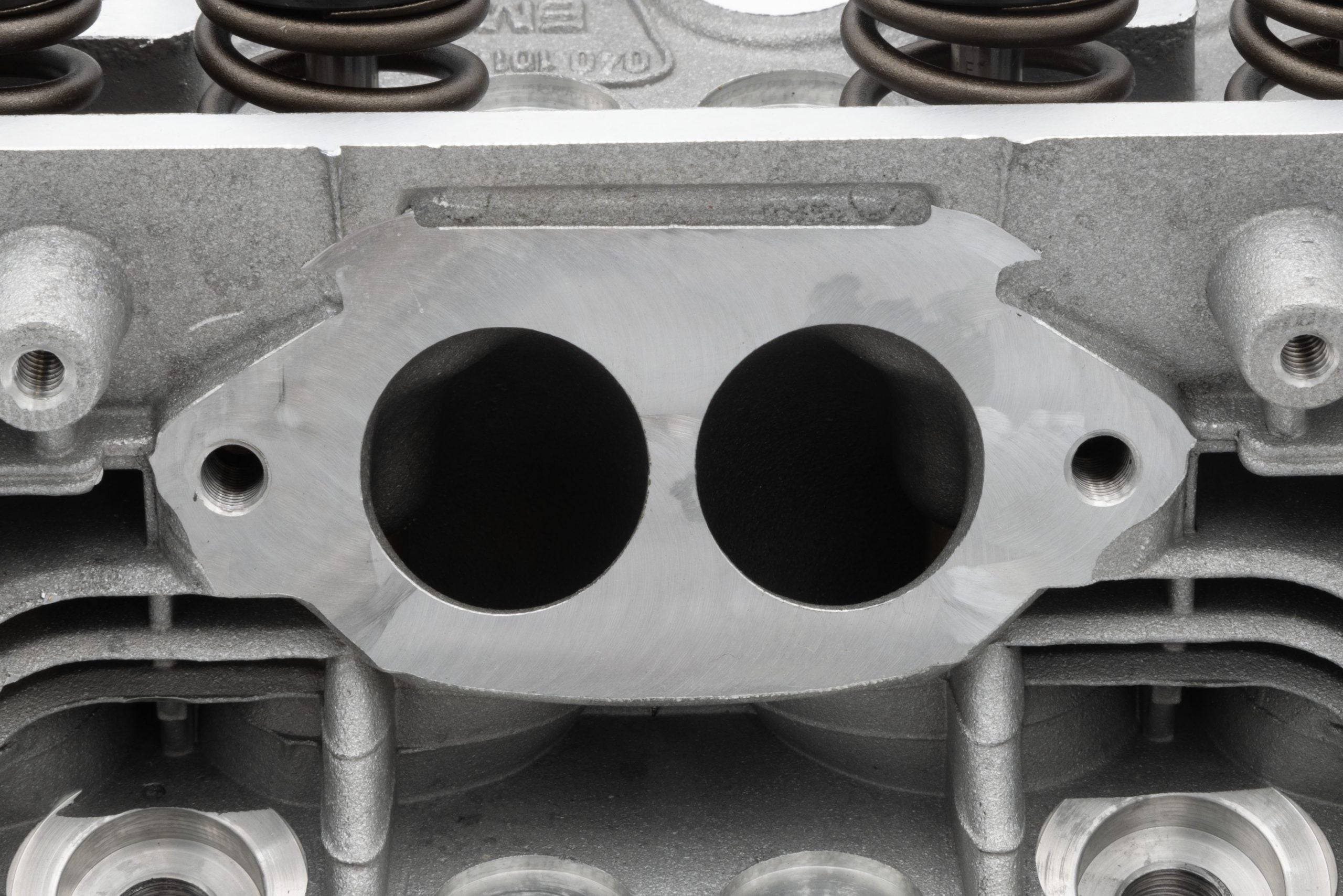

EMPI 98-1374-B - Combustion Chamber

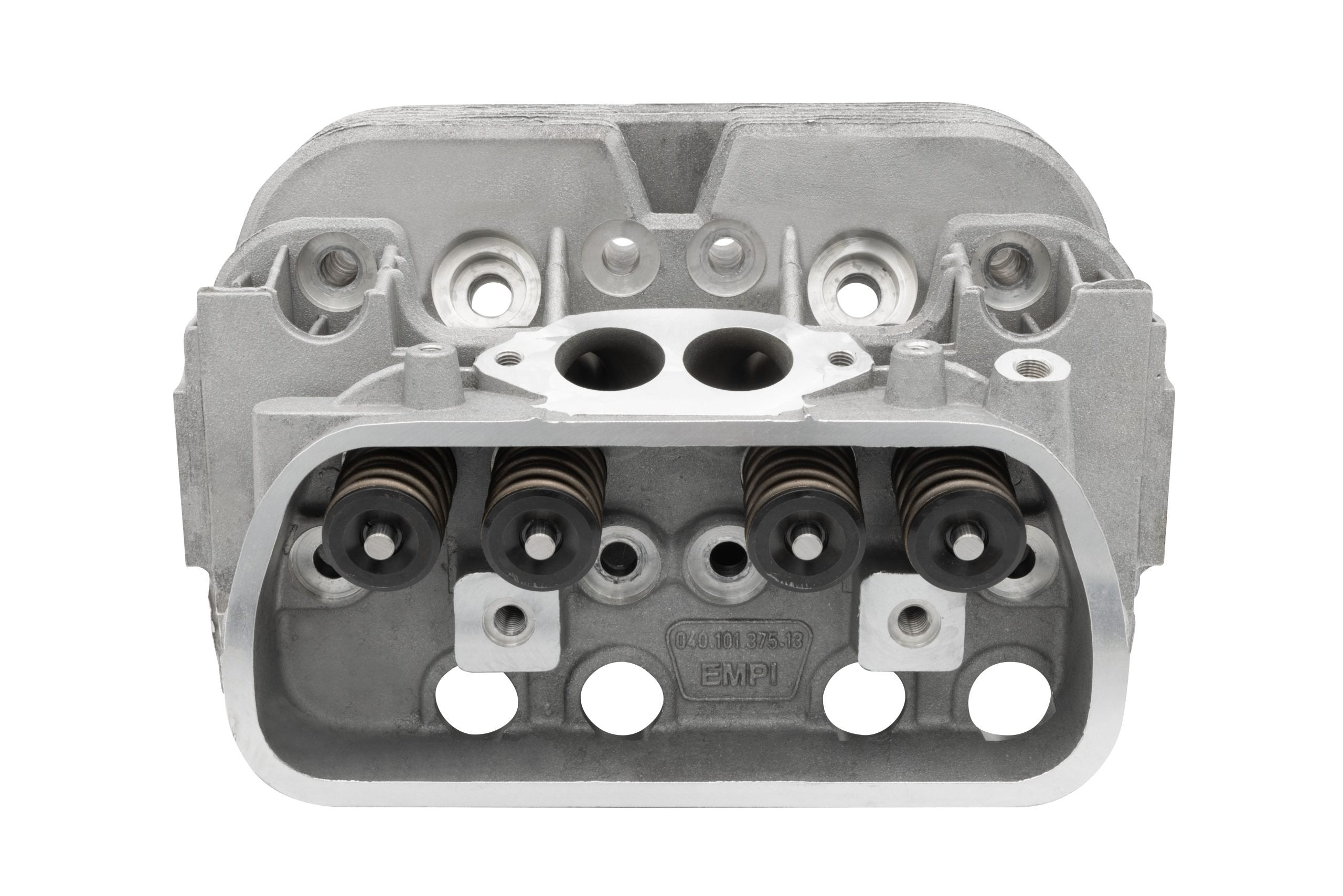

EMPI 98-1374-B - Intake Port

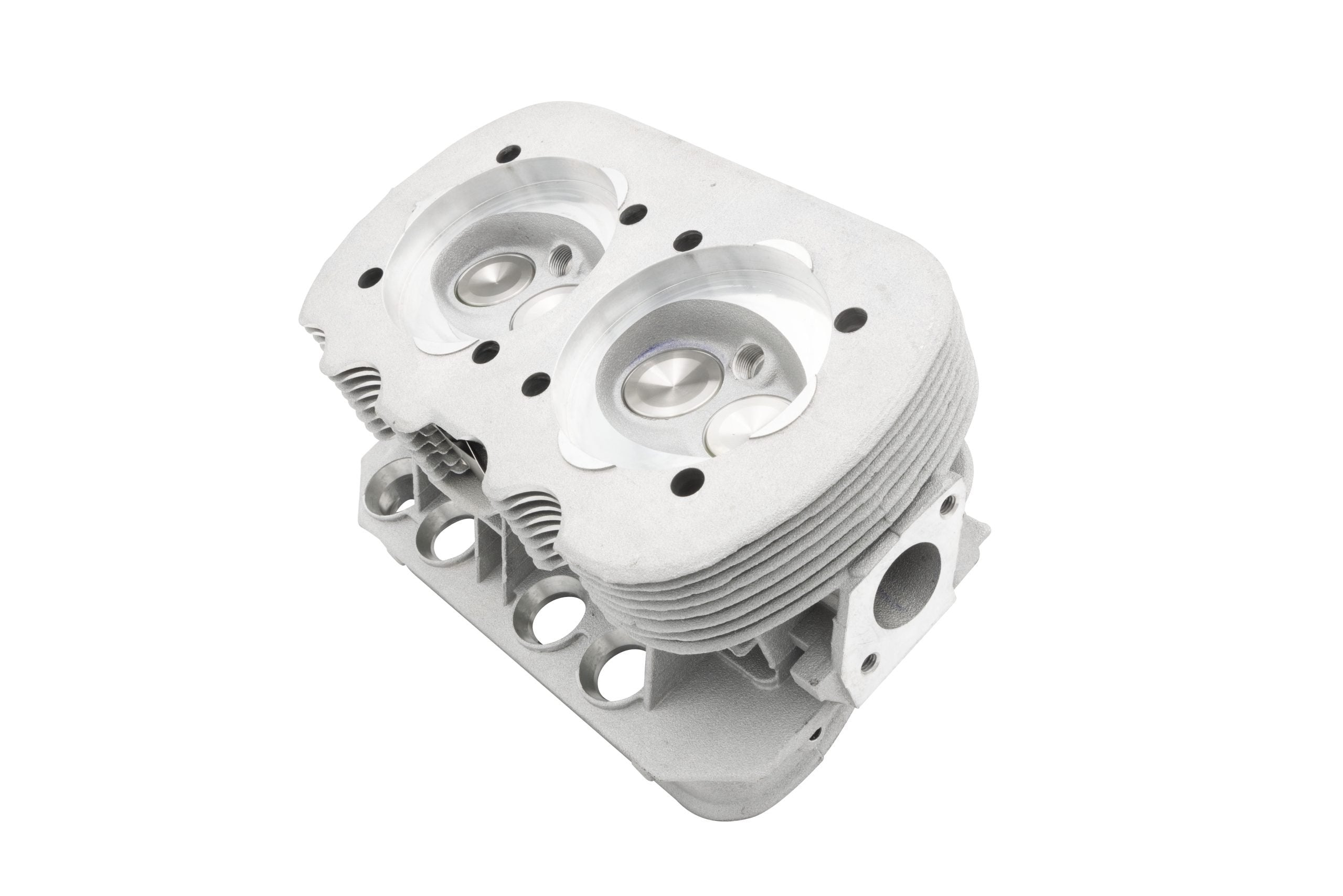

EMPI 98-1374-B - Exhaust Port
EMPI Hi-Performance Dual Port Cylinder Head 90.5/92mm 98-1374-B - Front
EMPI 98-1374-B - Combustion Chamber
EMPI 98-1374-B - Intake Port
EMPI 98-1374-B - Exhaust Port
EMPI

EMPI Hi-Performance Dual Port Cylinder Head | VW Type 1 Aircooled | 90.5/92mm, SS Valves, 3-Angle (98-1374-B)

Not currently available

Not currently available.

This part is discontinued or out at our supplier. We often have used stock, a substitute, or can fabricate an alternative.

Call (657) 438-7002 or send us your chassis number.

No reviews
Usually ships within 24 hours
$452.55
Product details
  • Vendor EMPI
  • SKU 98-1374-B
  • Barcode 707924472356
  • Fits
    • All Years|VW|Beetle (dual-port engine, 90.5/92mm bore)
    • All Years|VW|Bus (dual-port engine)
    • All Years|VW|Karmann Ghia

Not sure it fits? Call the shop: (657) 438-7002.

Ask an expert

Description Shipping information Reviews

EMPI Hi-Performance Dual Port Cylinder Head — 90.5/92mm Bore, Stainless Valves, 3-Angle Valve Job (98-1374-B)

Building a 1776, 1835, or 1914 and want stainless valves without going to a full race head? This is the one. EMPI's Hi-Performance dual-port head (98-1374-B) is the proven 98-1355-B casting machined to fit 90.5mm and 92mm pistons, upgraded with stainless Manley valves, hi-rev springs, chromoly retainers, bronze guides, and a 3-angle valve job. SCORE-approved, sold each.

Vehicle Fitment

  • VW Beetle: dual-port performance builds, 90.5mm or 92mm bore (1776cc / 1835cc)
  • VW Bus: dual-port performance builds
  • VW Karmann Ghia: dual-port performance builds
  • VW Type 3: dual-port performance builds
  • VW Thing: dual-port performance builds

Not confirmed: stock 85.5mm or 94mm bore (use the matching-bore head), single-port engines, Type 4 engines.

Why Choose EMPI?

You get genuine parts backed by real support.

Key Features & Benefits

  • Machined for 90.5/92mm: direct fit for 1776cc and 1835cc builds.
  • Stainless Manley valves: 35.5mm intake / 32mm exhaust.
  • Upgraded valvetrain: hi-rev single valve springs, chromoly retainers, and hardened keepers.
  • Bronze valve guides: for durability.
  • 3-angle performance valve job: improved flow.
  • Special aluminum alloy: fully repairable.
  • Race-ready: SCORE approved for Class 11 competition.
  • Sold each.

Technical Specifications

  • Bore: 90.5mm / 92mm, dual port casting (98-1355-B based)
  • Valves: 35.5mm intake / 32mm exhaust, stainless Manley
  • Chamber Volume: 51cc
  • Intake Port Volume: 53cc
  • Exhaust Port Volume: 56.5cc
  • Spark plugs: 14mm x 1/2"
  • Part Number: 98-1374-B (UPC 707924472356)

Important: Lash caps (P/N 00-4006-0) are required for all stainless steel valve applications — sold separately.

Frequently Asked Questions

  • What bore are these machined for? 90.5mm and 92mm pistons.
  • What displacements? 1776cc (90.5mm) and 1835cc (92mm) builds.
  • Do I need lash caps? Yes — required with stainless valves, sold separately (00-4006-0).
  • Sold each or as a pair? Each.
  • What's the part number? EMPI 98-1374-B (UPC 707924472356).
