EMPI 40mm HPMX Dual Carburetor Kit — Chrome Air Cleaners, Hex Bar Linkage | VW Beetle, Super Beetle, Ghia, Bus & Thing, Type 1 Dual-Port (47-7317-0)

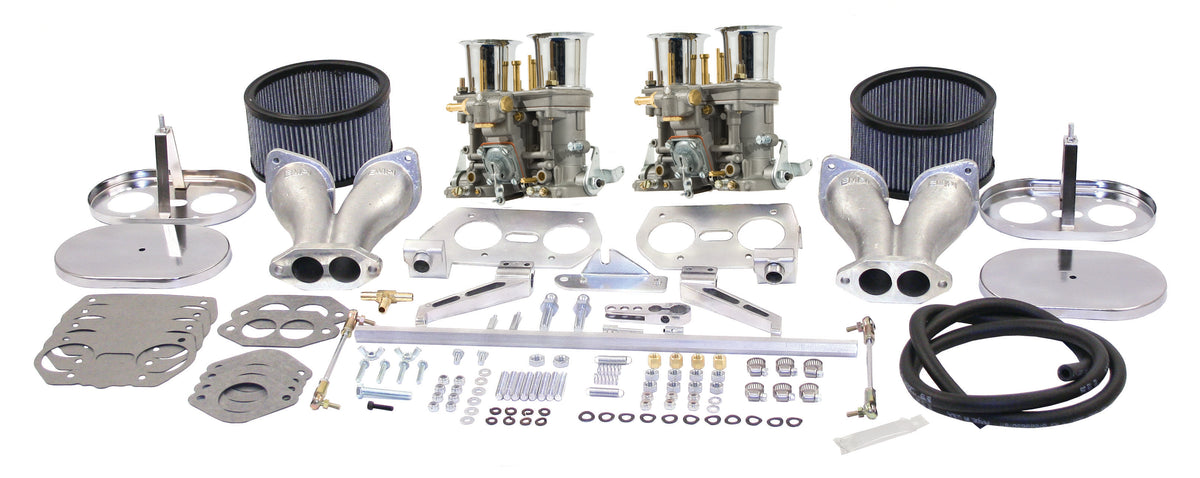

EMPI 40mm HPMX Dual Carburetor Kit — Chrome Air Cleaners, Hex Bar Linkage (47-7317-0)

A single stock carburetor is the biggest thing holding back a healthy dual-port Type 1 engine: long intake runners, uneven mixture between the cylinders, and a flat spot everywhere past the middle of the rev range. EMPI 47-7317-0 puts a 40mm HPMX carburetor on each head, with short manifolds, a hex bar linkage and chrome air cleaners. It is the complete box for converting a dual-port Beetle, Super Beetle, Ghia, Thing or Type 1-engine Bus to dual carbs.

Key Features & Benefits

• Matched pair of 40 HPMX carbs: test-run as a pair and set up for the left and right sides, with velocity stacks.
• Hex bar linkage: an aluminum alloy hex bar with steel ball ends and sealed aircraft heim rod ends for a flex-free throttle connection.
• Aluminum intake manifolds: ball-burnished/polished manifolds, one per head, with brass manifold nuts.
• Chrome air cleaners: solid aluminum base and top assemblies with high-flow gauze elements.
• Complete kit: fuel line with brass tee and filter, coil relocation mount, hardware and gaskets.
• Genuine EMPI: sold by an authorized EMPI dealer.

Fitment

This kit fits air-cooled VW upright Type 1 engines with dual-port cylinder heads.

• CONFIRMED (EMPI, dual-port heads required): VW Beetle 1950–1979, Super Beetle 1971–1980, Karmann Ghia 1970–1974, Thing 1973–1974, and Type 2 Bus and Pickup 1968–1974 with the 1.6L Type 1 engine.
• NOT CONFIRMED: single-port engines (they need dual-port heads first), 1975-on fuel-injected Beetles unless converted to carburetors, dune buggies and sand rails (not in EMPI's list, although they use the same engine), and cars with a stock fan shroud that the manifold offset does not clear.
• DOES NOT FIT: Type 3 pancake engines, Type 4 engines (1972–1979 Bus 1.7–2.0L, 914) and Porsche engines.

Technical Specifications

• Part Number: EMPI 47-7317-0
• Carburetors: Dual 40mm EMPI HPMX, matched left/right pair, with velocity stacks
• Linkage: Aluminum alloy hex bar, steel ball ends, sealed heim rod ends
• Manifolds: Ball-burnished/polished aluminum, Type 1 dual-port
• Air Cleaners: Chrome, solid aluminum base/top, high-flow gauze elements
• Also Included: Fuel line, brass fuel tee, fuel filter, brass manifold nuts, coil relocation mount, hardware and gaskets
• Not Included: Fuel pump, pressure regulator, distributor, throttle cable, extra jets
• UPC: 707924278293
• Country of Origin: Taiwan
• Shipping Weight: 20.95 lb
• Package Dimensions: 31 x 11 x 9 in

Installation Notes

• Read the job first: EMPI's Type 1 dual HPMX/IDF instruction sheet assumes a stock, healthy engine. The fuel and ignition come off first, then the old manifold, and the carbs and linkage are bench-assembled before they go on.
• Torque limits (EMPI sheet 99-4098-0): case nut/bolt 15 ft-lbs; throttle shaft nuts 4–5 ft-lbs maximum; carburetor hold-down nuts 12–14 ft-lbs maximum.
• Fuel pressure: HPMX carbs want low, regulated fuel pressure. Fit a regulator if you run an electric pump.
• Before the first start: check that the linkage moves freely through full travel and that plug wires are clear. Then synchronize the carbs with a Syncrometer and set idle mixture with a tachometer.
• Jetting: plan on a jetting check for your displacement, cam, ignition and altitude. EMPI's baseline for 40 and 44 HPMX is a 130 main, 160 air corrector, 55 idle and F7 emulsion tube (sheet 99-4125-0).

Official EMPI instruction sheets (PDF): Type 1 dual HPMX/IDF kit installation — 99-4098-0 · Synchronizing & idle mixture — 99-4100-0 · 40 & 44 HPMX/IDF tuning & jetting — 99-4125-0 · Linkage assembly & lubrication — 99-4332-0

Frequently Asked Questions

• Does this fit a 1971 VW Super Beetle? Yes, if the engine has dual-port heads, which every US Super Beetle had from the factory. EMPI lists 1971–1980 Super Beetles with dual-port heads.
• Will it fit my single-port engine? No. The manifolds are for dual-port Type 1 heads. A single-port engine needs dual-port heads first.
• Will it clear my stock fan shroud? Not always. Dealers note that the manifold offset may need an aftermarket or 36hp-style fan shroud, or shroud modification. Check before you commit.
• Does it fit a Type 3 or a Type 4 Bus? No. It is for the upright Type 1 engine only. Type 3 pancake engines and the 1.7-2.0L Type 4 engine need different kits.
• 40mm or 44mm? The 40mm HPMX suits most street engines from a stock 1600 up to mild big-bore builds. The 44mm (EMPI 47-7319-0) is for larger, higher-revving engines.
• Is it jetted out of the box? It ships jetted as a matched, test-run pair, but EMPI says no single jet set covers every engine, so plan on a jetting check. EMPI's tuning sheet 99-4125-0 gives the baseline.
• What is not included? Fuel pump, fuel pressure regulator, distributor, throttle cable and extra jets are not included.
• What is the part number? EMPI 47-7317-0 (often listed as 47-7317). UPC 707924278293.
• How does it ship? As a boxed parcel, about 21 lb in a 31 x 11 x 9 in carton, by ground service. It is not hazmat. It is set up as backorder-OK: if it is not on our shelf, we order it from EMPI and ship when it arrives.
• Are you an authorized EMPI dealer? Yes. Washburn's Metal is an authorized EMPI dealer, and this is a genuine EMPI part shipped in EMPI's packaging.
