EMPI Complete Wiring Harness | VW Beetle Sedan 1962–1964 | German-Style Reproduction, LHD (98-9482-0)

EMPI Complete Wiring Harness — VW Beetle Sedan 1962–1964 (98-9482-0)

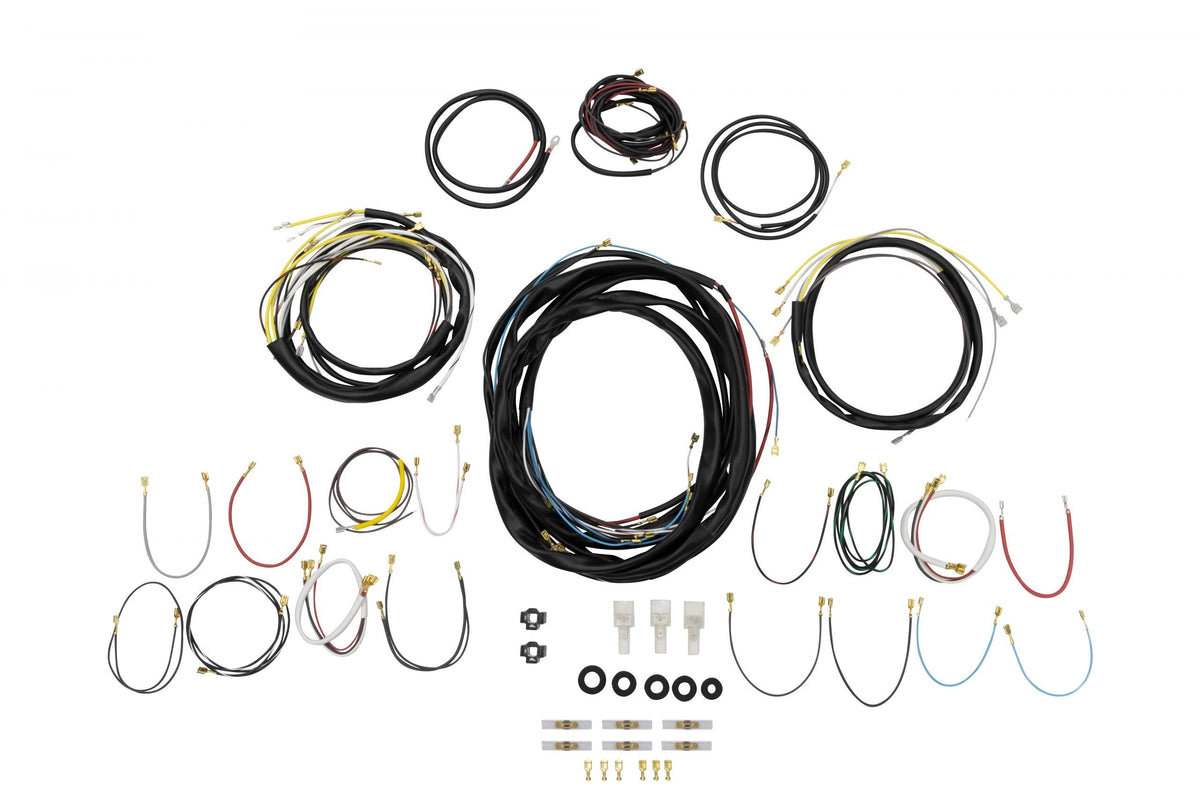

Forty-plus years of heat cycles turn original VW wiring into a fire risk. The cloth and PVC insulation goes hard and cracks, the copper corrodes green under the jacket, and somewhere along the way a previous owner spliced in a headlight relay with a twist and a piece of tape. This is EMPI's complete reproduction wiring harness for the 1962–1964 Beetle sedan — an all-new loom built to the factory German pattern, with correct gauges, correct colors and factory-style connectors, so you can pull the old wiring out in one piece and rewire the car properly. EMPI part #98-9482-0.

What Makes a Reproduction Harness Worth It

Rewiring with a universal kit means inventing your own circuits and cutting your own lengths — then explaining it to the next person who works on the car. A year-correct harness arrives with every branch already the right length, routed the way the factory routed it, and color-coded to match the wiring diagram in your Bentley or Haynes manual. Every connection you make is a push-on terminal at the component, not a butt splice in the middle of a run. That is the difference between a car that is a pleasure to troubleshoot and one you dread opening the front hood on.

What's Included

• Main harness plus front harness section and dash wiring
• Individually packaged, numbered branch wires so each leg is identified before you start
• Factory-style connectors, terminal ends and grommets
• Correct wire gauge and German-spec color coding with tracer stripes
• Printed installation instructions

Not included: fuse box, switches, bulb holders and battery cables are separate parts. If the car is being rewired from scratch, plan on replacing the fuse box and the battery-to-body ground strap at the same time — they are the two most common sources of voltage drop on a freshly wired car.

Vehicle Fitment

• VW Beetle sedan — 1962, 1963, 1964 (including sunroof sedans)
• Left-hand drive only. RHD cars use a different loom.
• Works with the car's original 6-volt system or after a 12-volt conversion — the harness layout is the same, the wire sizing is generous enough for either

Not for convertibles. EMPI lists this harness as a sedan part. Cabriolet bodies of these years route the rear section differently. EMPI's 1965 and later harnesses (98-9484-0, 98-9485-0, 98-9486-0) cover sedan and convertible together.

Technical Specifications

Before You Start

• Photograph the old harness in place before removing it, especially behind the dash and at the light housings
• Pull the old loom out as one piece and lay it next to the new one to confirm branch routing
• Disconnect the battery ground first, and leave it disconnected until the last connection is made
• Clean every ground point back to bright metal — a new harness will not fix a rusty ground bracket
• Budget a weekend. It is not difficult work, but it is slow, patient work with the seats and dash trim out

Related Parts

• EMPI Universal Wire Harness with Fuse Box (00-9466-0) — for buggies, rails and custom builds where a year-correct loom does not apply
• EMPI 14" Braided Copper Battery Ground Strap (00-9469-0) — replace the ground while the interior is out
• Electrical & Ignition — coils, switches, connectors and cables

Frequently Asked Questions

Will this fit my 1965 Beetle?
No. VW changed the harness in 1965. Use EMPI 98-9484-0 for 1965, 98-9485-0 for 1966 and 98-9486-0 for 1967.

Is this for 6-volt or 12-volt cars?
Both. 1962–1964 Beetles left the factory 6-volt, and the same harness serves the car after a 12-volt conversion. Voltage does not change the routing, and the wire gauges are sized for the higher current of the 6-volt system.

Does it come with a fuse box?
No. The fuse box, switches and battery cables are sold separately.

Are the wires labeled?
Yes. Branch wires are individually packaged and numbered, and the colors and tracer stripes follow the factory German scheme so they match a period wiring diagram.

Will it work on a right-hand-drive car?
No. This is a left-hand-drive harness.

Can I use it on a convertible?
EMPI lists it as a sedan harness. For a 1962–1964 cabriolet, check the rear section routing against your car before ordering, or use a convertible-specific loom.

Do I need to rewire the whole car at once?
It is far easier than doing it in pieces. Because the harness is one assembly, splitting the job means running the new loom alongside the old one, which usually takes longer than doing it properly in one go.
