EMPI Universal Throttle Cable Kit — 15 Ft Cut-to-Length, 1.5mm with Adapter | VW Bug, Bus, Ghia & Dune Buggy (00-4863-0)

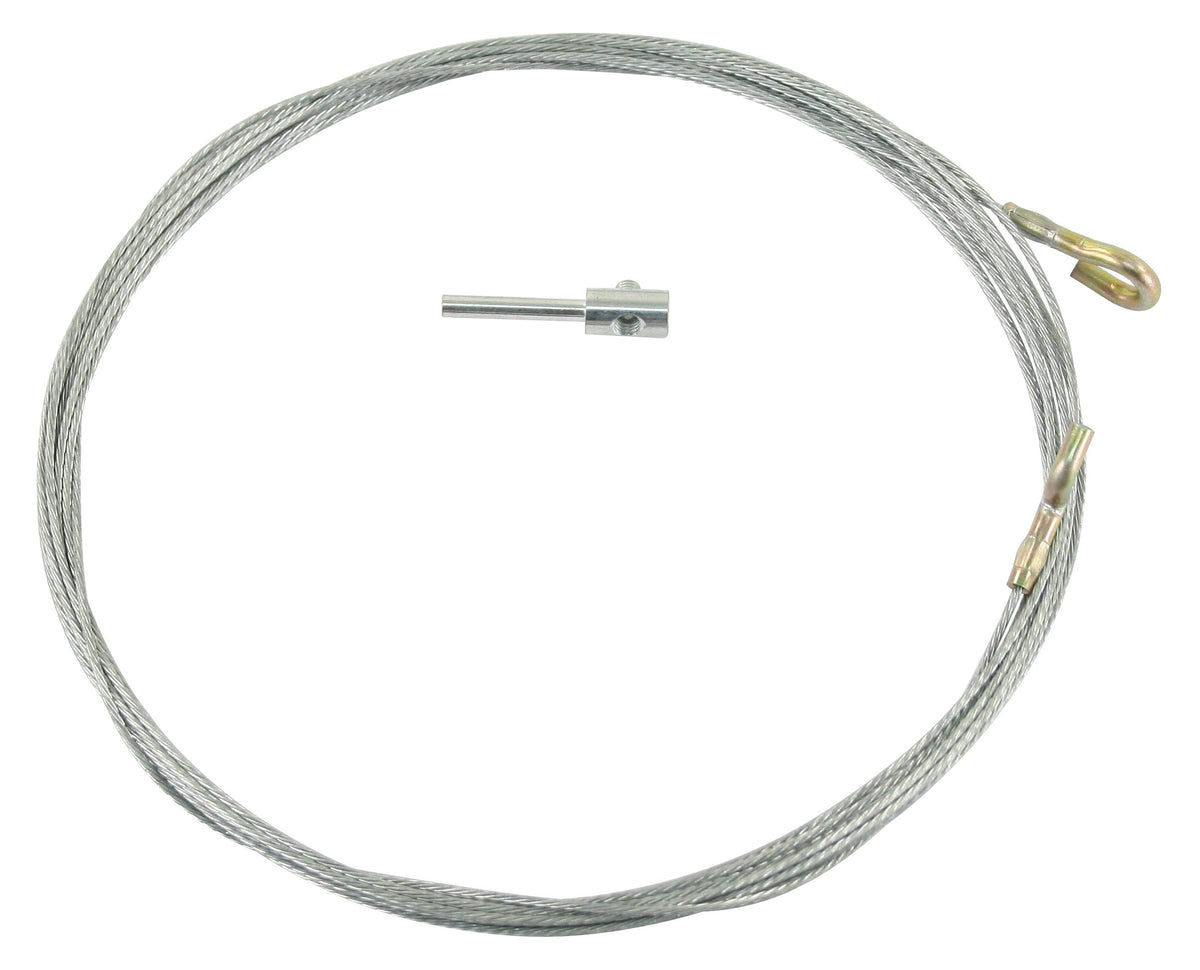

EMPI Universal Throttle Cable Kit — 15 Ft, Cut-to-Length (00-4863-0)

This is the throttle cable to use when the stock one doesn't fit, or when there is no stock cable length for your build. EMPI 00-4863-0 is a 15-foot, 1.5mm O.D. throttle cable. It has the factory loop on one end and the factory dog leg on the other, and it comes with a cable adapter. You pick the end that suits your pedal, cut off the other, run the cable to the carburetor and trim it to length.

Buggy builders, rail builders and anyone who has shortened a pan knows the problem. A factory cable is either too short or too long, and it's the wrong length at the wrong end. Fifteen feet covers any air-cooled layout we have ever seen, including a rear-engine sand rail with the pedal cluster well forward. At 1.5mm O.D. it still slides through the stock guide tube, so a Bug or Bus that needs a new cable can have one today. You don't have to wait on a year-specific part.

Key Features & Benefits

• 15 ft of cable: enough for long, custom or rear-engine routing, with plenty left to trim.

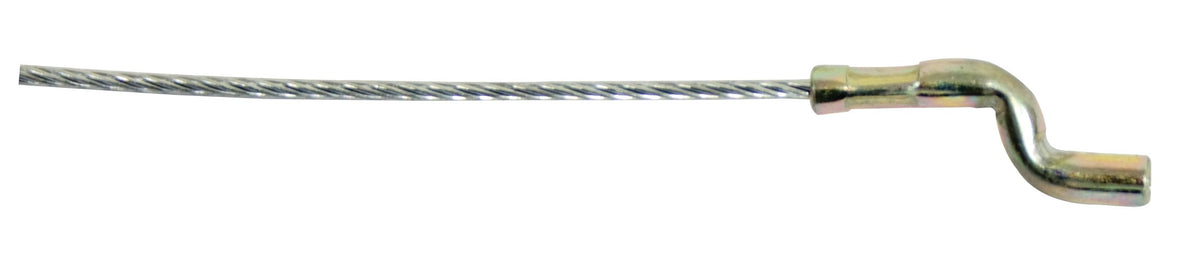

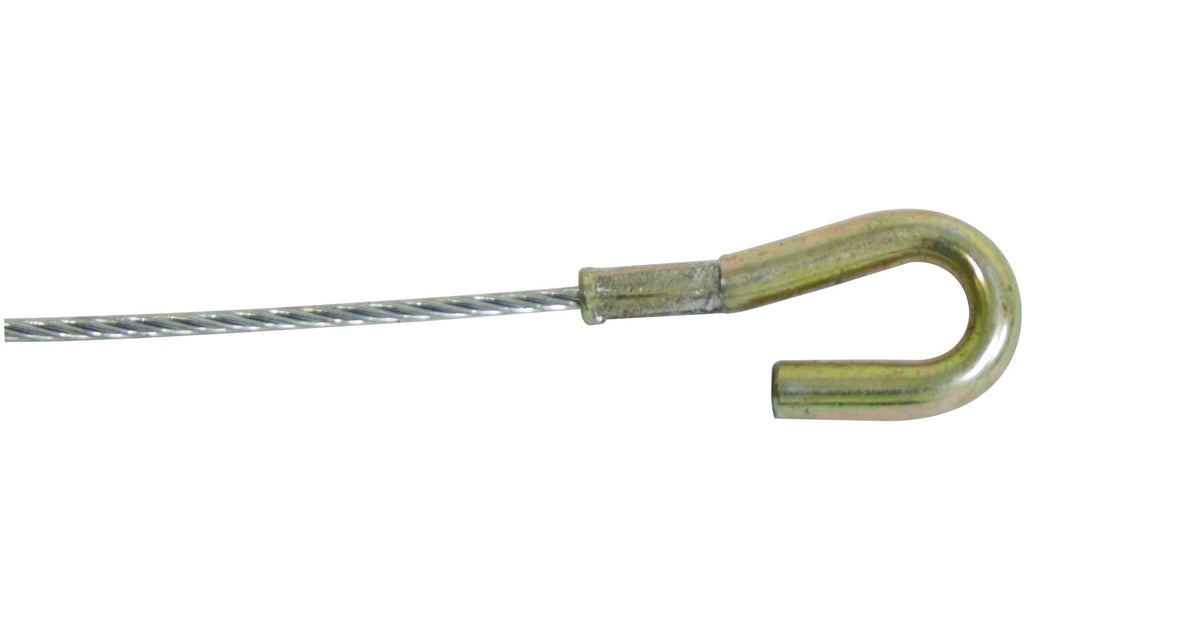

• Both factory pedal ends: an early-style loop on one end and a late-style dog leg on the other. Keep the one that matches your pedal.
• 1.5mm O.D.: small enough to pass through the stock VW cable guide tube.
• Cable adapter included: finishes the cut end at the carburetor linkage.
• Genuine EMPI: sold by an authorized EMPI dealer.

Fitment

Universal cut-to-length throttle cable for carbureted air-cooled VWs and VW-based buggies. It works with any setup that uses a stock-style guide tube, or an open run, and either the early loop or the late dog-leg pedal hookup.

• CONFIRMED (by design): custom and shortened-chassis VW builds, dune buggies, Manx-style kit cars, Bajas and sand rails with Type 1 style pedal assemblies.
• Dealer-listed applications: VW Beetle 1954–1974, Super Beetle 1971–1974, Karmann Ghia 1956–1974, Bus (Type 2) 1955–1974, Thing 1973–1974, all carbureted.
• NOT CONFIRMED: fuel-injected cars (1975-and-later US Beetles and Buses, fuel-injected Type 3 and Type 4) and engines with non-VW throttle linkages. Check your throttle-body or carb linkage end first, or call us with your year and setup.

Technical Specifications

• Part Number: EMPI 00-4863-0
• Cable length: 15 ft (cut to length)
• Cable O.D.: 1.5mm
• Pedal ends: loop (early) and dog leg (late), one on each end
• Includes: cable and cable adapter
• Sold As: Kit
• UPC: 707924328318
• Country of Origin: India
• Shipping Weight: 0.28 lb
• Package Dimensions: 8 x 6 x 1 in

Installation Notes

• Decide which pedal end you need before you cut. Look at your accelerator pedal: the early style takes the loop and the late style takes the dog leg.
• Feed the cable from the pedal end, through the tunnel guide tube and the engine-bay tube, to the carburetor.
• With the pedal on the floor, set the carburetor to wide-open throttle, then fix the cable in the adapter. Make sure it returns cleanly to idle before you cut the excess.
• Leave an inch or two of extra cable past the adapter until you've road-tested it. You can cut it shorter later, but you can't add length back.
• Inspect the engine-bay guide tube. A kinked or dry tube will wear through a new cable quickly.

Frequently Asked Questions

• Does this fit a 1967 VW Beetle? Yes. A 1967 Beetle is carbureted and uses the stock guide tube, and this 1.5mm cable passes through that tube; cut it to length and use the end that matches your pedal.
• What is the part number? EMPI 00-4863-0 (often listed as EMPI 4863). UPC 707924328318.
• Which end do I use, the loop or the dog leg? Both come on the cable. Keep the one that matches your accelerator pedal hookup, cut off the other, and finish the cut end at the carburetor with the supplied adapter.
• Will it fit my dune buggy or sand rail? Yes. Buggies and rails are what a 15 ft cut-to-length cable is for: long or custom routing, shortened pans and rear-engine rails with pedal assemblies nowhere near the stock location.
• Is this the same as a stock-length Beetle throttle cable? No. A stock cable such as EMPI 98-7501-B comes pre-cut to the factory length. This is a universal 15 ft kit you cut to length yourself.
• How does it ship? As a normal small parcel (0.28 lb, 8 x 6 x 1 in box). It is not hazmat and has no ground-only restriction.
• Are you an authorized EMPI dealer? Yes. Washburn's Metal is an authorized EMPI dealer, and this is a genuine EMPI part.

Explore Related Categories

Sorting out cables on a build? Browse Drivetrain & Transmission, Dune Buggy & Manx Parts, the full EMPI Parts catalog, and everything for the VW Beetle. Need a stock-length cable instead? See the EMPI stock-replacement accelerator cable (98-7501-B).
