JP Group Heater Boxes for Air-Cooled VW Vanagon 1980–1983 | 2.0 Type 4 Engine (USA) | Left, Right or Pair (JP-8227-0 / JP-8228-0)
Couldn't load pickup availability
JP Group Heater Boxes for the Air-Cooled VW Vanagon, 1980–1983 (JP-8227-0 / JP-8228-0)

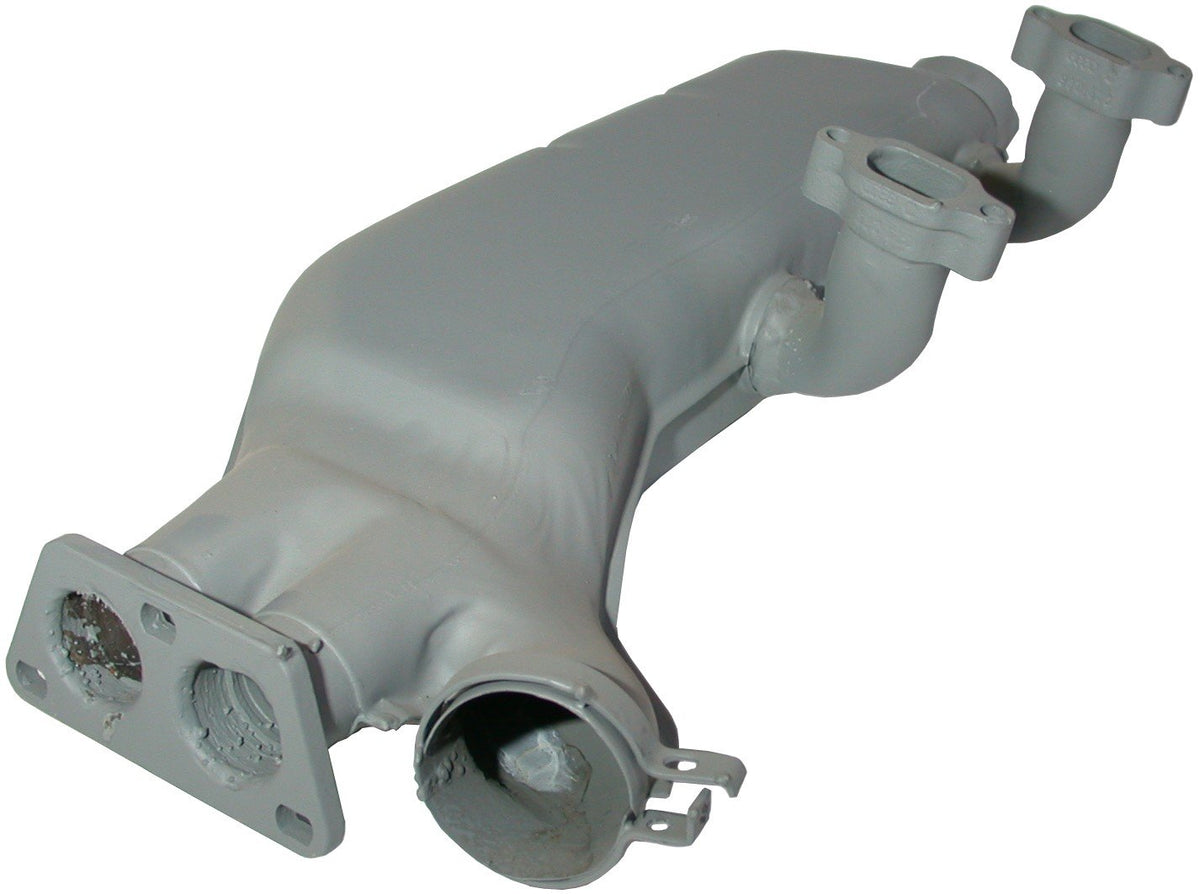

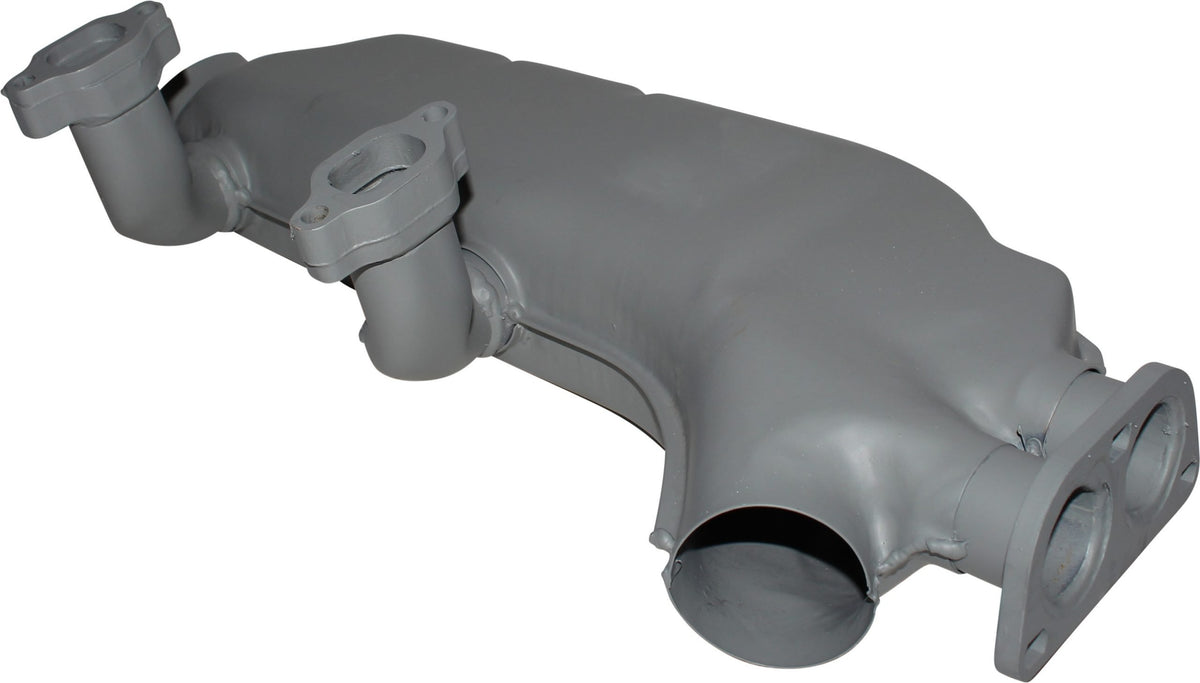

JP Group JP-8227-0 (left) and JP-8228-0 (right) are OE-pattern heater boxes (heat exchangers) for the 2.0 litre Type 4 engine in the US-market 1980–1983 air-cooled VW Vanagon. They restore cabin heat and defrost and seal exhaust away from the fresh-air path. They do not fit the water-cooled Vanagon or Bay Window Buses. Sold left, right or as a pair.
Part numbers: Left JP-8227-0 · OE ref. 22.181 · JP 8123101570 · UPC 707924525625 — Right JP-8228-0 · OE ref. 22.182 · JP 8123101580 · UPC 707924525632
Fitment
| Years | Vehicle | Notes |
|---|---|---|
| 1980–1983 | VW Vanagon, air-cooled 2.0 litre (USA) | Type 4 engine |
| 1983½ on | Does not fit: water-cooled Vanagon | No heat exchangers of this type |
| 1972–1978 | Does not fit: Bay Window Bus (Type 4) | Uses different heat exchangers |
US air-cooled Vanagons were built from 1980 to early 1983. Quick check: water-cooled Vanagons have a radiator behind a second, lower grille at the front, and air-cooled ones don't. If you're unsure, send us your VIN or engine code.
Specifications
| Spec | Detail |
|---|---|
| Brand | JP Group (Denmark), distributed by EMPI |
| Engine | Type 4, 2.0 litre, air-cooled (USA) |
| Left | JP-8227-0 — OE ref. 22.181 — JP 8123101570 — UPC 707924525625 — 16.76 lb |
| Right | JP-8228-0 — OE ref. 22.182 — JP 8123101580 — UPC 707924525632 — 15.87 lb |
| Pair | 32.63 lb (ships as two boxes) |
| Box size | 28 x 16 x 10 in (estimated) |
Why it matters
The air-cooled Vanagon had only four model years before VW switched to the water-cooled Wasserboxer, and its heat exchangers are hard to find. The originals are forty years old now, and a rusted-through box on a van means no heat and a real risk of exhaust in the cabin.
Installation notes
- Soak the exhaust studs well ahead of time and have a stud kit ready. Type 4 studs are known for breaking.
- Use new gaskets throughout, and check that the heater flaps and cables move freely before the tin goes back on.
Frequently Asked Questions
Is my Vanagon air-cooled?
US air-cooled Vanagons were built from 1980 to early 1983. The quick check: water-cooled Vanagons have a radiator behind a second, lower grille at the front, and air-cooled ones don't. If you're unsure, send us your VIN or engine code.
Will air-cooled Vanagon heater boxes fit a Bay Window Bus?
No. The 1972-1978 Type 4 Bus uses different heat exchangers.
Can I buy just one side?
Yes. Choose Left or Right, or the Pair.
Who makes the JP-8227-0 / JP-8228-0 Vanagon heat exchangers?
JP Group of Denmark.
