JP Group Heater Boxes for VW Bus 1972–1978 | Type 4 1700, 1800 & 2.0 Engine | Left, Right or Pair (JP-8221-0 / JP-8222-0)
Couldn't load pickup availability
JP Group Heater Boxes for the 1972–1978 VW Bus, Type 4 Engine (JP-8221-0 / JP-8222-0)

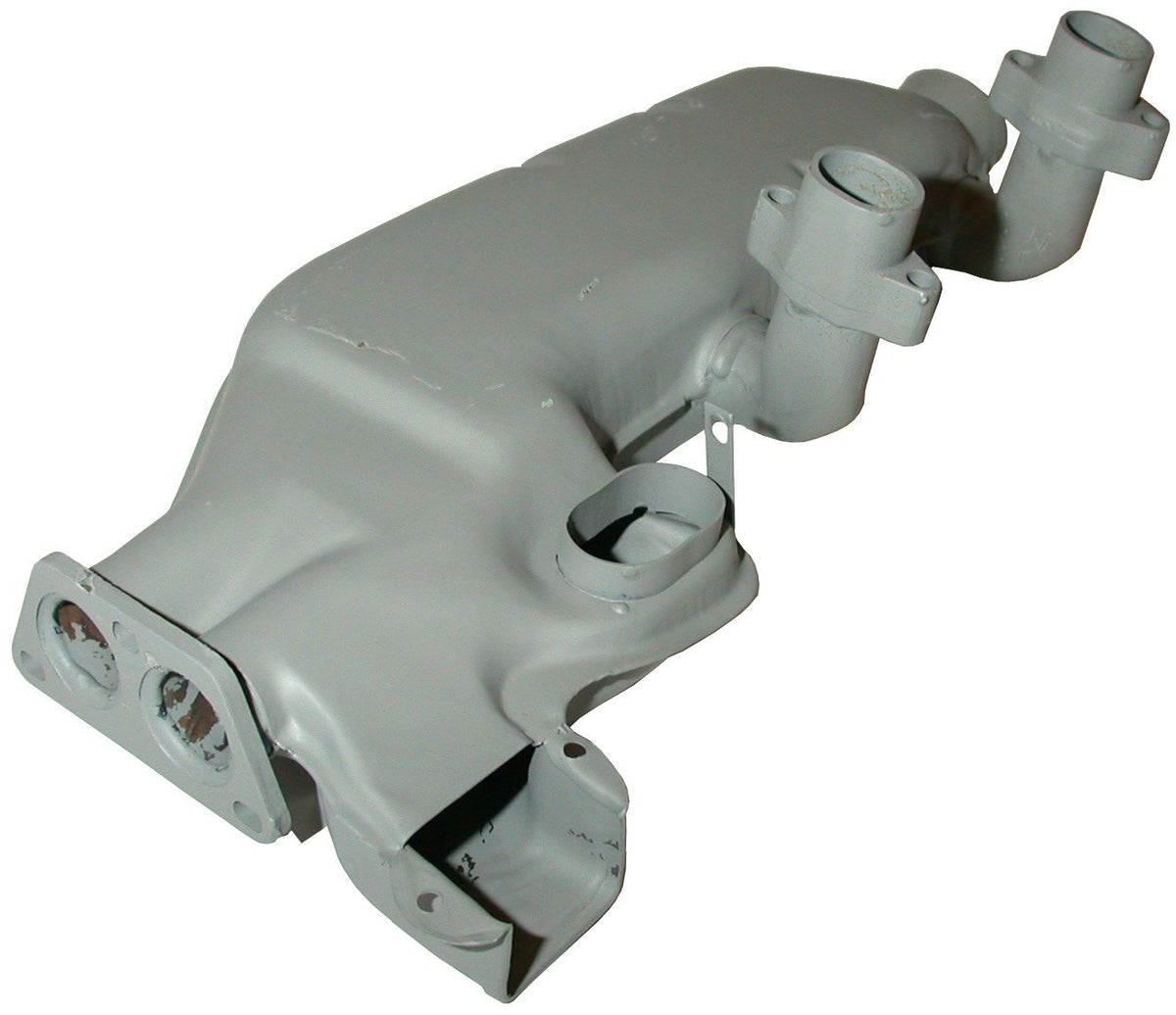

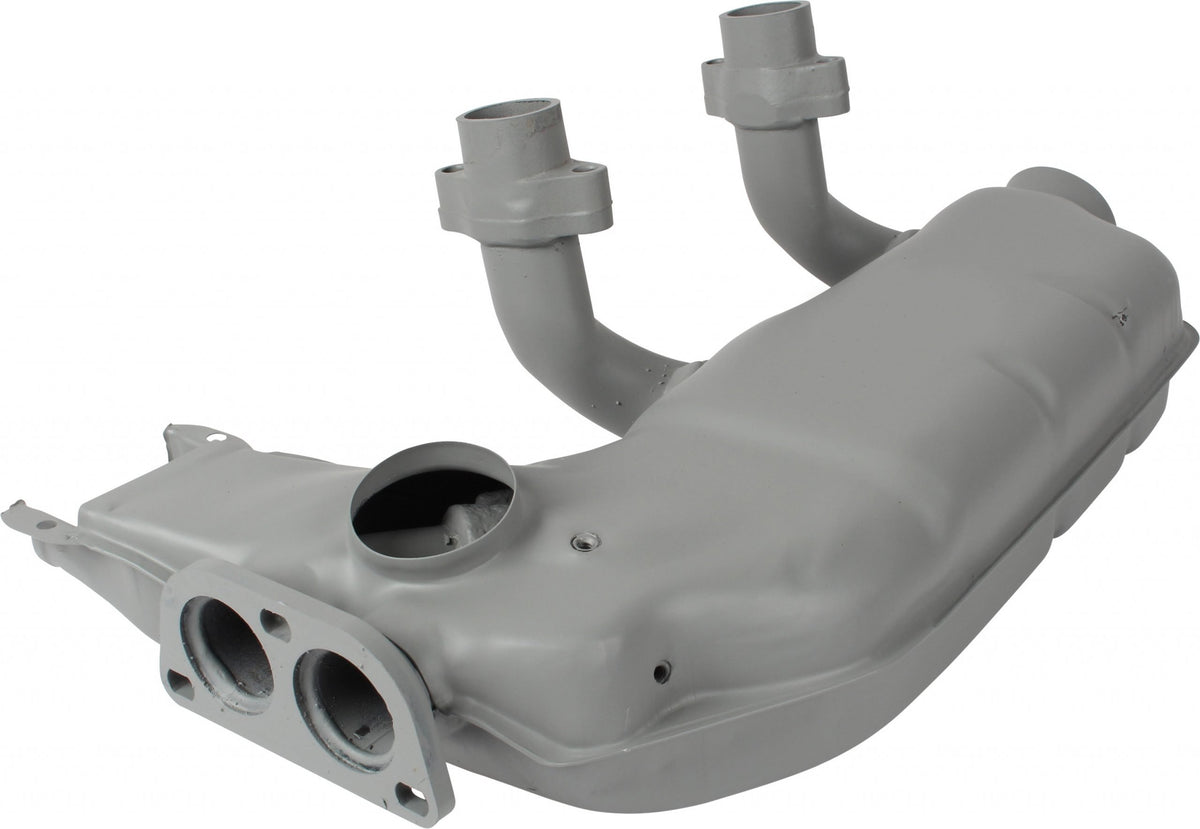

These are JP Group OE-pattern heater boxes (heat exchangers) for the 1972–1978 VW Bus / Transporter with the Type 4 “pancake” engine in 1.7, 1.8 or 2.0 litre form. They restore cabin heat and defrost and keep exhaust out of the fresh-air path. Sold as a left (JP-8221-0), a right (JP-8222-0) or a pair.
Part numbers: Left JP-8221-0 · OE ref. 21.121 · JP 8123101070 · UPC 707924525564. Right JP-8222-0 · OE ref. 21.122 · JP 8123101080 · UPC 707924525571. Pair: JP-8221-0 + JP-8222-0.
Fitment
| Years | Vehicle | Notes |
|---|---|---|
| 1972–1978 | VW Bus / Transporter (Bay Window) | Type 4 engine: 1.7, 1.8 or 2.0 litre |
| Does not fit | Bus with the upright 1600 Type 1 engine | Takes the Type 1 & 2 upright box, such as the Dansk Heavy-Duty |
| 1979 | VW Bus | JP Group lists 1972–1978 only. Contact us with your engine code |
Specifications
| Item | Detail |
|---|---|
| Brand | JP Group (Denmark), distributed by EMPI |
| Type | OE-pattern replacement heater box / heat exchanger |
| Engine | Type 4: 1.7 / 1.8 / 2.0 litre |
| Left | JP-8221-0, OE ref. 21.121, JP 8123101070, UPC 707924525564 |
| Right | JP-8222-0, OE ref. 21.122, JP 8123101080, UPC 707924525571 |
| Shipping weight | Left 16.81 lb · Right 16.76 lb · Pair 33.57 lb (ships as two boxes) |
| Options | Left, Right or Pair |
Why the right heater box matters
A Bay Window Bus is a big box of cold air, and on the Type 4 engine the heat exchangers are the only real source of cabin heat. When they rust through you lose that heat, and you can end up with exhaust fumes in the cabin, which is dangerous in a van. Type 4 boxes are larger and heavier than Type 1 boxes, so the engine type decides which part you need.
Installation notes
- Type 4 exhaust studs are known for breaking. Soak them for days, heat them if you can, and have a stud kit on hand.
- Use new port and muffler gaskets. Check the heater flaps and cables work before the tin goes back on.
- Replace cracked heater hoses and check the fresh-air fan ducting while you're in there.
Frequently asked questions
Which heater boxes fit a 1972-1978 VW Bus with a Type 4 engine?
JP Group JP-8221-0 (left) and JP-8222-0 (right) fit the 1972-1978 VW Bus with the Type 4 1.7, 1.8 or 2.0 litre engine. They are OE-pattern replacements sold singly or as a pair.
How do I know if my Bus has a Type 4 engine?
The Type 4 is the flat pancake engine with the cooling fan on the front of the crank, in 1.7, 1.8 and 2.0 litre sizes. The upright Type 1 engine has a tall fan shroud on top.
Will these heater boxes fit a Bus with the upright 1600 engine?
No. A Bus with the upright 1600 Type 1 engine takes the Type 1 and 2 upright box, such as the Dansk Heavy-Duty.
Will these fit a 1979 Bus?
JP Group lists them for 1972-1978. Contact us with your engine code for a 1979.
Can I buy just one side?
Yes. Choose Left or Right, or the Pair. The pair ships as two boxes.
Why is the right side priced higher?
That reflects the manufacturer's list pricing for each side.
