King Performance Billet Air Cleaner King Nut 1/4"-20 | Air-Cooled VW, Buggy & Carb Air Cleaners | Tool-Free, Knurled 6061 | Black or Polished
Couldn't load pickup availability
King Performance Billet Air Cleaner King Nut, 1/4"-20

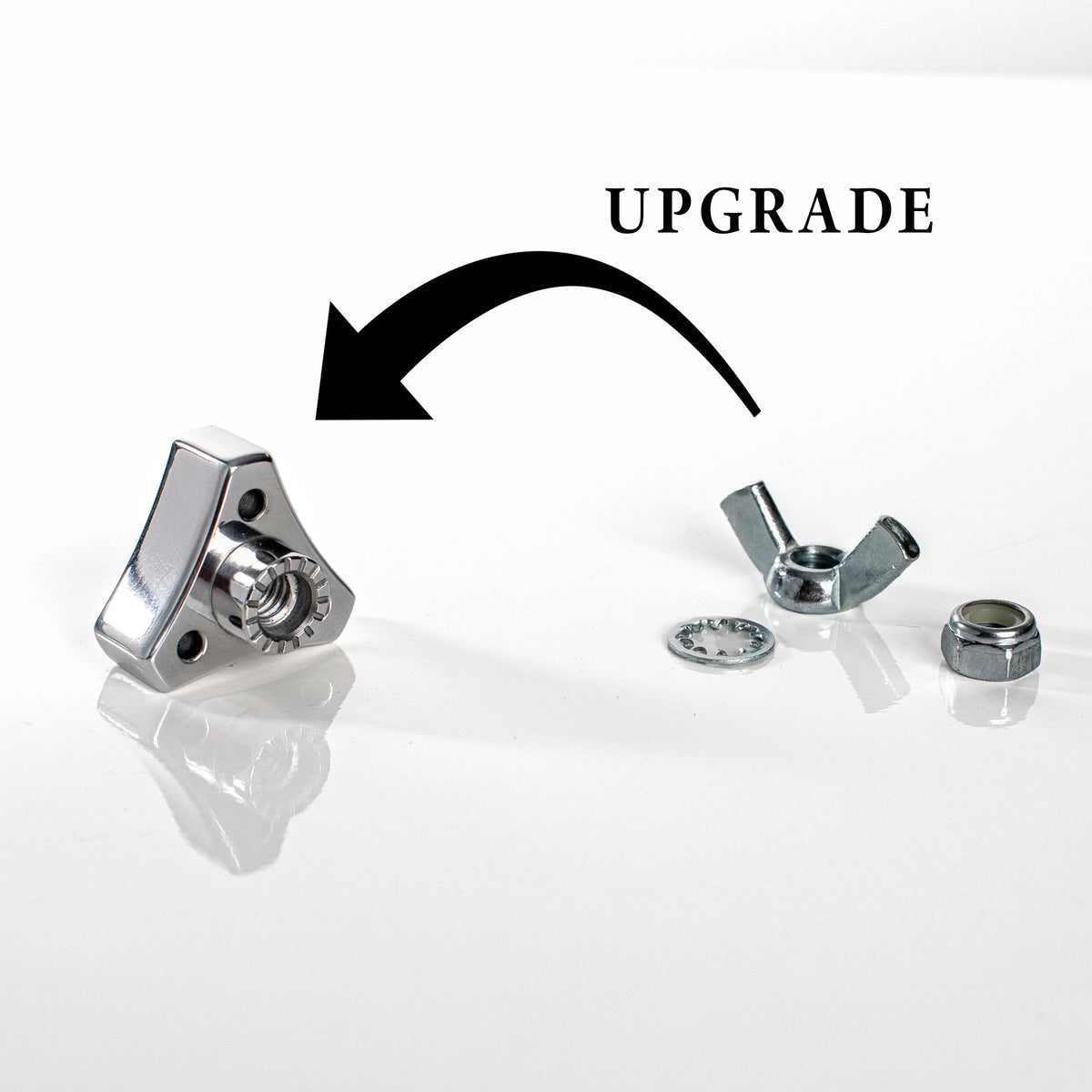

The wing nut that holds your air cleaner lid on is one of the most-handled fasteners on an air-cooled VW engine. Every time you check the filter, sync carbs or peek at the jets it comes off, and the cheap stamped or chromed-steel versions bend, rust and lose their washers in the engine bay. The King Performance Air Cleaner King Nut replaces that throwaway part with a CNC-machined billet nut that you spin on and off by hand, with a built-in knurled base that does the washer's job.
Fitment
- Air cleaners that use a 1/4"-20 (UNC) stud to retain the lid, as used on many aftermarket VW carburetor air cleaners
- Air-cooled VW Beetle, Super Beetle, Karmann Ghia, Bus, Thing and Type 3 engines, and Type 1-powered dune buggies, Baja Bugs and sand rails, wherever the air cleaner uses a 1/4"-20 stud
- Not for air cleaners with metric studs or spring-clip lids. If you are unsure of your stud thread, send us the air cleaner brand and part number and we will check
Key Features
- CNC machined from 6061 billet aluminum
- 1/4"-20 internal thread
- Integrated knurled base grips the lid, so no separate washer is needed
- Tool-free installation and removal
- Two finishes: black anodized or polished billet
- Sold individually; order one per air cleaner
Specifications
| Brand | King Performance |
|---|---|
| Product | Air Cleaner King Nut |
| Thread | 1/4"-20 |
| Material | 6061 billet aluminum, CNC machined |
| Finish | Black anodized or polished |
| Base | Integrated knurled base, replaces the washer |
| Quantity | 1 nut |
| SKU | KP-KN-AC-BLK / KP-KN-AC-POL |
Installation
Remove the old wing nut and washer from the air cleaner stud. Seat the air cleaner lid, thread the King Nut on by hand and snug it down until the knurled base bites the lid. Hand-tight is all it needs; do not use pliers or a wrench on billet aluminum, and do not over-tighten, which can distort the lid or strip the stud. Check the stud length first: it needs enough exposed thread to engage the nut fully.
Pairs Well With
Dressing up the top end? Pair the King Nut with the Fuel & Intake Components range, King's KING NUT clutch adjustment wing nut, and the King spark plug wire holders.
Frequently Asked Questions
What thread is the Air Cleaner King Nut?
1/4"-20 (quarter-inch, 20 threads per inch). It fits air cleaners that use a 1/4"-20 stud to hold the lid on.
Do I still need a washer?
No. The nut has an integrated knurled base that bears on the lid and grips it, so the separate washer is eliminated.
Do I need tools to install it?
No. It is designed to go on and come off by hand, which makes filter checks and carb tuning quicker.
What is it made of?
CNC-machined 6061 billet aluminum, finished in black anodize or polished.
Is it sold as a pair?
It is sold individually. Dual-carb engines with two air cleaners need two.
Will it fit my stock VW air cleaner?
Only if the air cleaner uses a 1/4"-20 stud. Many factory oil-bath air cleaners use clips instead of a stud. Send us a photo or part number and we will confirm.
