EMPI Complete Wiring Harness — VW Beetle Sedan 1958–1959 (98-9476-0)

The wiring in a late-fifties Beetle has had sixty-five years to go bad, and it usually has. Insulation that was flexible in 1959 is now brittle enough to flake off when you tug a wire behind the dash, the copper has gone dull and green where moisture wicked under the jacket, and the original color coding has faded to the point that three different browns all look the same under a shop light. Add the repairs — a headlight fed off a wire that was never meant to carry it, a horn grounded to a screw in the trunk floor — and you have a car that works until it doesn't. This is EMPI's complete reproduction wiring harness for the 1958 and 1959 Beetle sedan: a brand-new loom built on the German factory pattern, so you can strip the old wiring out and rewire the car the way it left Wolfsburg. EMPI part #98-9476-0.

What Makes a Reproduction Harness Worth It

A 6-volt car has no margin for bad wiring. Half the voltage means twice the current for the same job, and every corroded terminal, undersized splice and marginal ground eats into what actually reaches the headlight or the starter. That is why an otherwise healthy 36-horse Beetle can crank slowly and run dim lights with a good battery and a good generator — the loss is in the wiring, spread over forty connections, and no single one of them looks like the problem. Replacing the harness as an assembly fixes all of it at once. The other reason is simpler: a year-correct loom is color-coded and gauged to match the wiring diagram in your manual, so the next time something goes wrong you trace it with a diagram instead of a guess. That is worth more over the life of the car than the price difference between this and a generic kit.

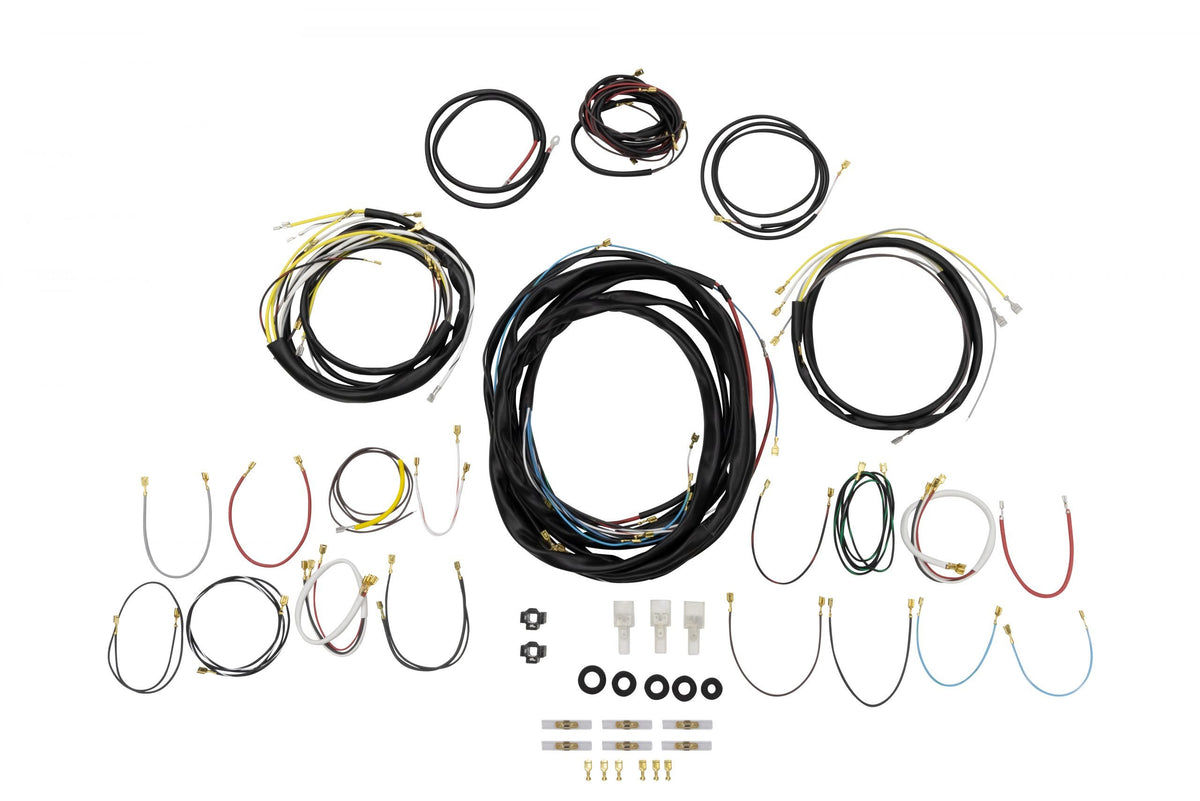

What's Included

• Main harness, front harness section and dash wiring
• Branch wires packaged individually and numbered so every leg is identified before it goes in the car
• Factory-style connectors, terminal ends and grommets
• Correct wire gauge and German-spec color coding with tracer stripes, matched to the period wiring diagram
• EMPI's printed installation manual (kit K6-1958-1959)

Not included: fuse box, switches, bulb holders and battery cables are separate parts. On a 6-volt car especially, plan on replacing the fuse box and the battery ground strap while the interior is out — old fuse clips and a tired ground strap will cost you more voltage than the harness ever did.

Vehicle Fitment

• VW Beetle sedan — 1958 and 1959, including sunroof sedans
• Left-hand drive only. RHD cars use a different loom and this harness will not reach correctly.
• Works on the car's original 6-volt system, and works unchanged after a 12-volt conversion — the routing is identical and the wire gauges were sized for the higher current of a 6-volt system, so they are generous at 12 volts

Not for convertibles. EMPI catalogs this as a sedan harness. Not for 1960 or later — VW revised the loom year by year through this period. Use 98-9478-0 for 1960, 98-9480-0 for 1961 and 98-9482-0 for 1962–1964.

One thing to check before you order: confirm what your car has for front turn signals and for its dash layout. Cars of this vintage were built in market-specific variations, and the matching reproduction loom is catalogued as the US-market pattern. If your car has been changed from original, lay the new harness alongside the old one before you cut anything loose.

Technical Specifications

Before You Start

• Take photographs before you take anything apart — behind the dash, at both headlight buckets, at the tail lights and at every ground point
• Pull the old loom out in one piece if you can, then lay it beside the new one and confirm branch-for-branch that the routing matches
• Disconnect the battery ground first and leave it off until the last terminal is crimped
• Clean every ground point back to bright metal and use a star washer. On a 6-volt car this step is not optional
• Read EMPI's manual all the way through once before you start, and keep your wiring diagram out on the bench
• Give it a weekend. The work is straightforward but slow, and it goes much better with the seats and dash trim out of the way

Related Parts

• EMPI Complete Wiring Harness, Beetle Sedan 1960 (98-9478-0) — the next year's loom, if yours is a 1960 car
• EMPI 14" Braided Copper Battery Ground Strap (00-9469-0) — the cheapest voltage you will ever get back on a 6-volt car
• EMPI Universal Wire Harness with Fuse Box (00-9466-0) — for buggies, rails and customs where a year-correct loom does not apply
• Electrical & Ignition — coils, switches, connectors and cables

Frequently Asked Questions

Will this fit a 1960 Beetle?
No. 1960 is its own harness — use EMPI 98-9478-0. For 1961 use 98-9480-0, and for 1962 through 1964 use 98-9482-0.

Will it fit a 1956 or 1957 oval-window car?
No. This loom starts at 1958. The earlier cars use a different harness.

My car has been converted to 12 volts. Can I still use this?
Yes. The harness routes the same either way, and the wire gauges were chosen for the higher current a 6-volt system draws, so they are more than adequate at 12 volts.

Does it include a fuse box?
No. Fuse box, switches, bulb holders and battery cables are sold separately.

Are the wires marked so I know which is which?
Yes. Branch wires come packaged individually and numbered, and the colors and tracer stripes follow the German factory scheme so they read straight off a period wiring diagram.

Can I use it on a right-hand-drive car?
No. This is a left-hand-drive harness only.

Will it work in a 1958–1959 cabriolet?
EMPI lists it as a sedan harness. Convertible bodies of these years route the rear section differently, so compare against your car before ordering or source a convertible-specific loom.
