EMPI Complete Wiring Harness — VW Beetle Sedan 1960 (98-9478-0)

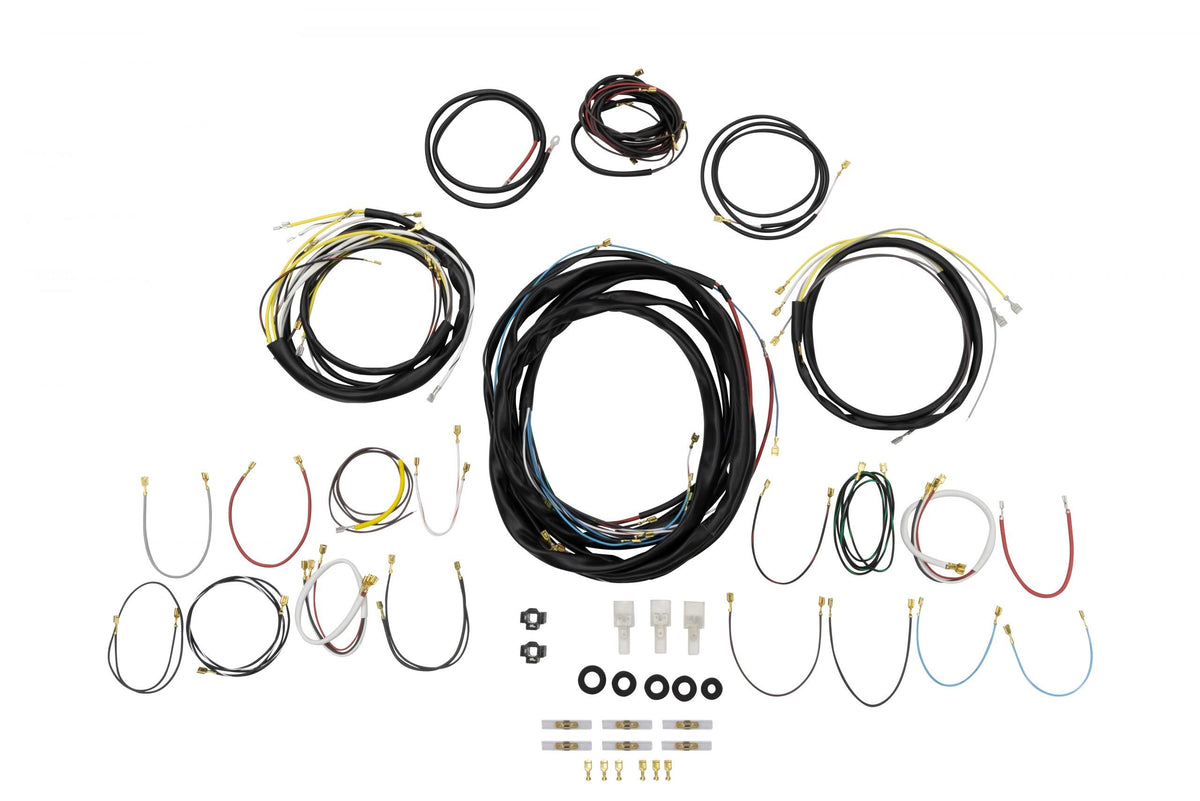

Ask anyone who has owned a six-volt Beetle what finally pushed them into rewiring it, and the answer is rarely a fire. It is usually the accumulation: the brake light that works when it feels like it, the wiper that slows down when the headlights are on, the connector behind the dash that you have re-crimped twice and still do not trust. Sixty-plus years of heat cycling, vibration and roadside repairs leaves a 1960 loom in a condition no amount of careful splicing will bring back. This is EMPI's complete reproduction wiring harness for the 1960 Beetle sedan — a new loom built to the German factory pattern with the correct gauges, correct colors and factory-style connectors, so the whole electrical system starts over at once. EMPI part #98-9478-0.

What Makes a Reproduction Harness Worth It

A wiring harness is the cheapest safety part you will ever buy for a car like this. The failure mode of old wiring is not an open circuit that leaves you stranded — it is a high-resistance connection that gets warm, then hot, inside a wrapped bundle you cannot see, tucked behind a painted panel and a fuel line. Replacing the whole loom removes every one of those from the car in one job. The second argument is about the years after the install. Because this harness is cut to the factory branch lengths and color-coded to the factory scheme, it matches the wiring diagram in your Bentley or Haynes manual exactly. Troubleshooting becomes a five-minute job with a test light instead of an afternoon of pulling wires and hoping. A universal kit will power the car, but it will never do that, because the diagram for it lives only in the head of whoever installed it.

What's Included

• Main harness, front harness section and dash wiring
• Branch wires packaged individually and numbered for identification before installation
• Factory-style connectors, push-on terminal ends and grommets
• Correct wire gauge and German-spec color coding with coded tracer stripes
• EMPI's printed installation manual (kit K13-1960)

Not included: fuse box, switches, bulb holders and battery cables are sold separately. Replace the fuse box and the battery-to-body ground strap at the same time — those two are the most common reason a freshly rewired six-volt car still has dim lights.

Vehicle Fitment

• VW Beetle sedan — 1960 model year only, including sunroof sedans
• Left-hand drive only. Right-hand-drive cars use a different loom.
• Correct for the car's original 6-volt system, and usable as-is on a car that has been converted to 12 volts — the layout does not change and the wire sizing is generous for 12V service

Not for convertibles. EMPI catalogs this as a sedan harness; cabriolet bodies route the rear section differently.

Why 1960 is a single-year part: VW revised the Beetle's wiring almost yearly through this period, and the 1960 car sits between two different looms. EMPI does not group it with either neighbor. If your car is a 1958 or 1959, use 98-9476-0; if it is a 1961, use 98-9480-0; 1962 through 1964 share 98-9482-0. Check the chassis number rather than the title year if the car is close to a model-year changeover, since VW started each model year in August of the prior calendar year.

Technical Specifications

Before You Start

• Photograph everything first — behind the dash, inside both headlight buckets, at the tail lights, and every place a wire touches the body
• Remove the old loom as one piece and lay it next to the new harness to verify branch routing before you feed anything through a grommet
• Disconnect the battery ground and leave it disconnected until the very last connection
• Take every ground point back to bare metal. A new harness will not compensate for a rusty ground bracket, and on 6 volts it shows up immediately
• Keep the installation manual and a period wiring diagram side by side on the bench
• Set aside a weekend. It is patient work, not difficult work, and rushing it defeats the purpose of doing it at all

Related Parts

• EMPI Complete Wiring Harness, Beetle Sedan 1958–1959 (98-9476-0) — the previous loom, for 1958 and 1959 cars
• EMPI 14" Braided Copper Battery Ground Strap (00-9469-0) — do this while the interior is already out
• EMPI Universal Wire Harness with Fuse Box (00-9466-0) — for buggies, rails and custom builds instead of a year-correct loom
• Electrical & Ignition — coils, switches, connectors and cables

Frequently Asked Questions

Does this cover 1959 or 1961 as well?
No. It is a 1960-only harness. Use EMPI 98-9476-0 for 1958–1959 and 98-9480-0 for 1961.

What if my car is right on the model-year line?
Go by the chassis number, not the registration year. VW began each model year in August of the previous calendar year, so a car titled 1960 may be built to 1959 or 1961 specification.

Is it for 6-volt or 12-volt?
Either. 1960 Beetles were 6-volt from the factory, and the same harness serves the car after a 12-volt conversion. Voltage does not change the routing, and the gauges are sized for the heavier current of a 6-volt system.

Does a fuse box come with it?
No. Fuse box, switches and battery cables are separate parts.

How are the wires identified?
Branch wires are packaged individually and numbered, and the insulation colors and tracer stripes follow the German factory scheme so they match a period wiring diagram.

Will it fit a right-hand-drive Beetle?
No. This is a left-hand-drive harness.

Can I install it a section at a time?
You can, but it is harder. The harness is one assembly, so partial installation means running the new loom alongside the old one and living with both — most people find doing it in a single weekend faster than stretching it over a month.
