EMPI Complete Wiring Harness — VW Beetle Sedan 1961 (98-9480-0)

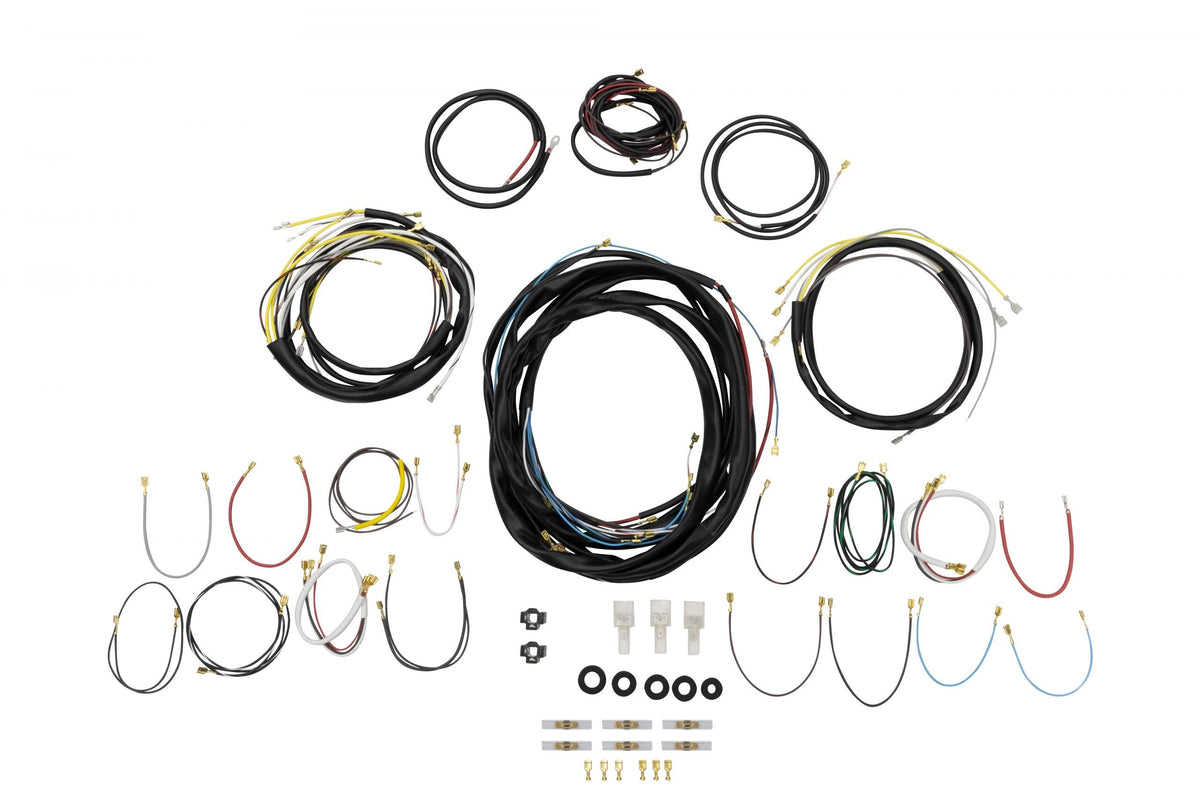

A 1961 Beetle is now past sixty years old, and its wiring shows it. Insulation that was flexible when the car left Wolfsburg has gone brittle and flakes off at the bend behind the dash. Copper that used to be bright is green and powdery where moisture wicked up under the jacket. And somewhere in the car there is a repair — a wire nut, a length of lamp cord, a headlight feed run outside the loom entirely. This is EMPI's complete reproduction wiring harness for the 1961 Beetle sedan, an all-new loom built to the German factory pattern with correct gauges, correct color coding and period-style connectors. Pull the old wiring out in one piece and put the car back on new wire. EMPI part #98-9480-0.

What Makes a Reproduction Harness Worth It

1961 is a one-year harness. VW did not carry the same loom forward, which is exactly why a year-correct reproduction matters more here than on a longer-running car — a generic kit will not have the branch lengths or the routing your body was built around. Universal harnesses leave you inventing circuits, measuring your own runs and crimping splices mid-loom, and every one of those splices is a future problem: a voltage drop, a hot joint, a fault the next owner has to chase. A correct harness arrives with every leg already the right length, routed where the factory routed it, and colored to match a period wiring diagram. Connections happen at the component with a push-on terminal, not in the middle of a run with tape. The car becomes something you can troubleshoot with a diagram and a test light instead of guesswork.

What's Included

• Main harness with front section and dash wiring for the 1961 sedan
• Individually packaged, numbered branch wires so every leg is identified before the first connection
• Factory-style connectors, terminal ends and grommets
• Correct wire gauge with German-spec color coding and tracer stripes
• Printed installation instructions (EMPI K12-1961 manual)

Not included: fuse box, switches, bulb holders and battery cables are separate parts. On a car of this age, plan on a new fuse box and a fresh battery-to-body ground strap while the interior is out — those two items cause more mystery electrical faults on a freshly wired Beetle than the harness ever will.

Vehicle Fitment

• VW Beetle sedan — 1961 only, steel roof or sliding sunroof
• Left-hand drive only. RHD cars use a different loom and this harness will not reach correctly.
• Works on the car's original 6-volt system or after a 12-volt conversion — routing is identical either way, and the gauges are sized for 6-volt current draw

Single-year fitment. Do not order this for a 1960 or a 1962 car. VW revised Beetle wiring for 1962, and EMPI covers 1962–1964 with part 98-9482-0. Not a convertible harness — EMPI lists 98-9480-0 as a sedan part; a 1961 cabriolet routes its rear section differently.

Technical Specifications

Before You Start

• Disconnect the battery ground first and leave it off until the last terminal is on
• Photograph the old loom before you touch it — behind the dash, at the light housings and at every grommet
• Remove the old harness as one piece and lay it alongside the new one to confirm branch routing
• Clean every ground point back to bright metal; new wire will not fix a rusty ground bracket
• Have a 1961-specific wiring diagram open. Early-sixties Beetle circuits are simple but they are not the same as a late Bug's
• Set aside a weekend. The work is patient rather than difficult, with the seats and dash trim out

Related Parts

• EMPI Complete Wiring Harness, Beetle Sedan 1962–1964 (98-9482-0) — the correct loom if your car is a 1962, 1963 or 1964
• EMPI Universal Wire Harness with Fuse Box (00-9466-0) — for buggies, rails and custom builds where a year-correct loom does not apply
• EMPI 14" Braided Copper Battery Ground Strap (00-9469-0) — replace the ground while the interior is out
• Electrical & Ignition — coils, switches, connectors and cables

Frequently Asked Questions

Will this fit a 1960 or a 1962 Beetle?
No. 1961 is a single-year harness. VW revised Beetle wiring for 1962 — use EMPI 98-9482-0 for 1962 through 1964. A 1960 car needs its own year-specific loom.

Is a 1961 Beetle 6-volt or 12-volt?
6-volt from the factory. US-market Beetles did not go to 12 volts until 1967. This harness serves the car either way: voltage does not change the routing, and the wire gauges are sized for the higher current a 6-volt system draws.

Does it come with a fuse box?
No. The fuse box, switches, bulb holders and battery cables are sold separately.

What VW part number does this replace?
113-971-011-C, also written 113971011C and catalogued as WK-113-1961.

Are the wires labeled?
Yes. Branch wires are individually packaged and numbered, and the colors and tracer stripes follow the German factory scheme so they read against a period wiring diagram.

Can I use it on a 1961 convertible?
EMPI lists this as a sedan harness. A cabriolet body routes the rear section differently, so check your car against the loom before ordering or source a convertible-specific harness.

Will it work on a right-hand-drive car?
No. This is a left-hand-drive harness only.
