EMPI Complete Wiring Harness — VW Beetle Sedan & Convertible 1967 (98-9486-0)

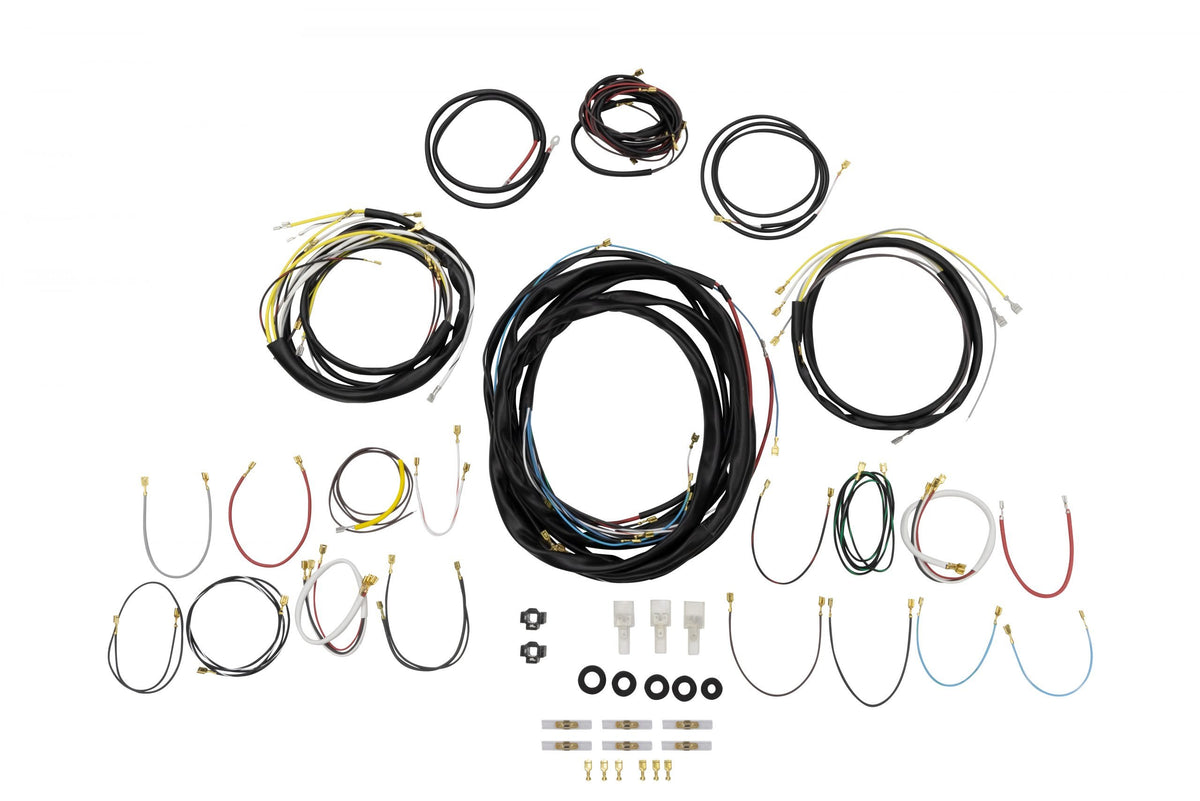

The 1967 Beetle is the car everybody wants and the car nobody can find parts for. It sits in a single model year of its own, and the wiring is a big part of why: VW moved the US cars to a 12-volt system for 1967 and reworked the electrics to match, then changed direction again for 1968. That makes the 1967 loom a one-year-only part — not a 1966 harness, not a 1968 harness, and not something you can fudge with a universal kit and a good afternoon. This is EMPI's complete reproduction harness for the 1967 Beetle sedan and convertible, built to the factory German pattern with correct gauges, correct colors and factory-style terminals. EMPI part #98-9486-0.

What Makes a Reproduction Harness Worth It

On a one-year car, correctness stops being a matter of pride and becomes a matter of whether the job is even finishable. Cut your own lengths from a generic kit and you are guessing at branch routing that no diagram in print describes. A year-correct loom removes all of that: every leg is already the right length, already routed the way it left Wolfsburg, and already colored to match the 1967 wiring diagram in your Bentley or Haynes manual. Connections happen at push-on terminals where the components actually live, not at butt splices hidden under the rear seat. Fifty years of accumulated repairs come out of the car in one pull, and what goes back in is something you — or the next owner — can still troubleshoot with a book and a test light.

What's Included

• Complete loom — main harness, front section and dash wiring
• Individually packaged, numbered branch wires so every leg is identified before the old harness comes out
• Factory-style connectors, terminal ends and grommets
• Correct wire gauge with German-spec color coding and tracer stripes
• Printed installation instructions

Not included: fuse box, ignition and light switches, bulb holders and battery cables are separate parts. A 1967 rewire is also the right moment to replace the fuse box and the battery ground strap — both are common sources of voltage drop that will get blamed on a new harness.

Vehicle Fitment

• VW Beetle sedan and convertible — 1967 only (sedan, sunroof sedan and cabriolet)
• Left-hand drive only. RHD cars use a different loom.
• Built for the 1967 car's 12-volt system; the routing and branch layout do not change with system voltage

Because 1967 stands alone, this harness does not interchange with its neighbors. A 1966 car takes 98-9485-0; 1968 and 1969 cars take 98-9487-0. If you are not certain which model year your car actually is, check the chassis number against a year-identification chart before ordering — plenty of "1967" Beetles turn out to be late 1966 or early 1968 bodies.

Technical Specifications

Before You Start

• Disconnect the battery ground before anything else and leave it disconnected until the final connection is made
• Photograph the car as found — behind the dash, at both light housings, at the tunnel grommets — before a single connector comes apart
• Remove the old loom in one piece if possible and lay it alongside the new one to verify branch routing
• Take every ground point back to bright metal. On a 12-volt car a marginal ground shows up as flicker and slow cranking, and it will look exactly like a harness fault
• Plan for a weekend with the seats and dash trim out. It is patient work, not difficult work, and going slowly is what keeps it a one-time job

Related Parts

• EMPI Complete Wiring Harness, 1966 Beetle (98-9485-0) — the 1966 sedan and convertible loom
• EMPI Complete Wiring Harness, 1962–1964 Beetle Sedan (98-9482-0) — for earlier cars
• EMPI 14" Braided Copper Battery Ground Strap (00-9469-0) — replace the ground while the interior is out
• EMPI Universal Wire Harness with Fuse Box (00-9466-0) — for buggies and customs where a year-correct loom does not apply
• Electrical & Ignition — coils, switches, connectors and cables

Frequently Asked Questions

Why is the 1967 harness its own part number?
Because 1967 is a one-year-only model year for Beetle wiring. US cars moved to a 12-volt system for 1967 and the electrics were laid out to suit, and the arrangement changed again for 1968. Neither the 1966 nor the 1968–69 loom substitutes for it.

Will this fit a 1966 or a 1968 Beetle?
No. Use 98-9485-0 for a 1966 car and 98-9487-0 for 1968–1969.

Does it fit a 1967 convertible?
Yes. EMPI lists 98-9486-0 for the 1967 sedan and convertible together, so cabriolet bodies use this same part number.

Does it come with a fuse box or switches?
No. The fuse box, ignition and light switches, bulb holders and battery cables are all sold separately.

Are the wires identified?
Yes. Branch wires are individually packaged and numbered, and the colors and tracer stripes follow the factory German scheme so they match a period 1967 diagram.

Can I use it on a right-hand-drive car?
No. This is a left-hand-drive harness only.

How do I confirm my car is really a 1967?
Check the chassis number rather than the title. 1967 bodies are frequently misidentified in both directions, and ordering the wrong year harness is an expensive way to find out.
