EMPI Sprintstar Wheel Set of 4 — 15x5 & 15x8 5-Spoke Black or Chrome, 5x205 | VW Beetle 1949–1967 (00-9689-0)
Couldn't load pickup availability
EMPI Sprintstar 5-Spoke Wheel Set of 4 — 15" Black/Polished or Chrome, 5x205
Short answer: A set of four EMPI Sprintstar 5-spoke 15" cast aluminum wheels in the 5x205 wide-5 pattern for the 1949–1967 VW Beetle, 1956–1966 Karmann Ghia, 1962–1965 Type 3 and 1973–74 Thing. Choose four 15x5 gloss black/polished (ET+20), four 15x5 all-chrome (ET+20), or two black 15x5 fronts with two 15x8 (ET−18) rears. Caps and valve stems included; add the 20 matching 60° lug bolts in the Mounting Hardware option.
Part numbers: EMPI 00-9689-0 (009689-0, 0096890) 15x5 black · EMPI 00-9725-0 (009725-0, 0097250) 15x5 chrome · EMPI 00-2321-0 (002321-0, 0023210) 15x8 black
Choose your set
| Configuration | Wheels in the box | SKU | Set price | Ship weight |
|---|---|---|---|---|
| Square 15x5 — Gloss Black/Polished | 4× 00-9689-0 | SET4-00-9689-0 | $777.95 | 65.4 lb |
| Square 15x5 — All Chrome | 4× 00-9725-0 | SET4-00-9725-0 | $1176.95 | 71.4 lb |
| Staggered 2× 15x5 + 2× 15x8 — Gloss Black/Polished | 2× 00-9689-0 + 2× 00-2321-0 | SET4S-00-9689-0-2321-0 | $820.95 | 74.1 lb |
The wide-5 Sprintstar keeps the classic five-spoke design on an early Bug, Ghia or Thing. Pick the gloss black and polished set, the all-chrome set, or the wide stagger for buggies and flared cars.
Vehicle Fitment
| Years | Vehicle | Notes |
|---|---|---|
| 1949–1967 | VW Beetle (Type 1) | 5x205 wide-5 hubs. 1967 is the last 5-lug Beetle. |
| 1956–1966 | VW Karmann Ghia | 5x205. EMPI lists the 1967 Ghia as 4x130 (disc-brake front) — count your lugs. |
| 1962–1965 | VW Type 3 (Notch, Square, Fastback) | 5x205 through the 1965 model year. |
| 1973–1974 | VW Thing (Type 181) | US Things use 5x205. |
| 1964–1967 | Dune buggy on a 5x205 pan | Any pan or front beam still on 5x205 drums. |
| 1950–1970 | VW Bus (Split and 1968–70 Bay) | EMPI lists Transporter fitment for the black 15x5 Sprintstar (00-9689-0) only, not the chrome 00-9725-0, and publishes no load rating. The Bus uses M14x1.5 lug bolts with a 60° seat; the M12 kit in the Mounting Hardware option does not fit a Bus. We do not recommend these for a loaded Bus or camper — ask us first. |
| Does not fit | 1968–1979 Beetle, 1971–79 Super Beetle, 1967–74 Ghia, 1966–73 Type 3 | Those cars are 4x130. See our 4x130 sets. |
| Does not fit | 1971–1979 Bay Bus, Vanagon | 5x112 pattern. |
| Does not fit | Porsche 5x130 hubs / 5x130-converted VWs | Different pattern; no adapter makes a wide-5 wheel bolt to 5x130. |
Technical Specifications (per wheel)
| EMPI # | Size | Offset (ET) | Backspacing | Finish | Ship wt |
|---|---|---|---|---|---|

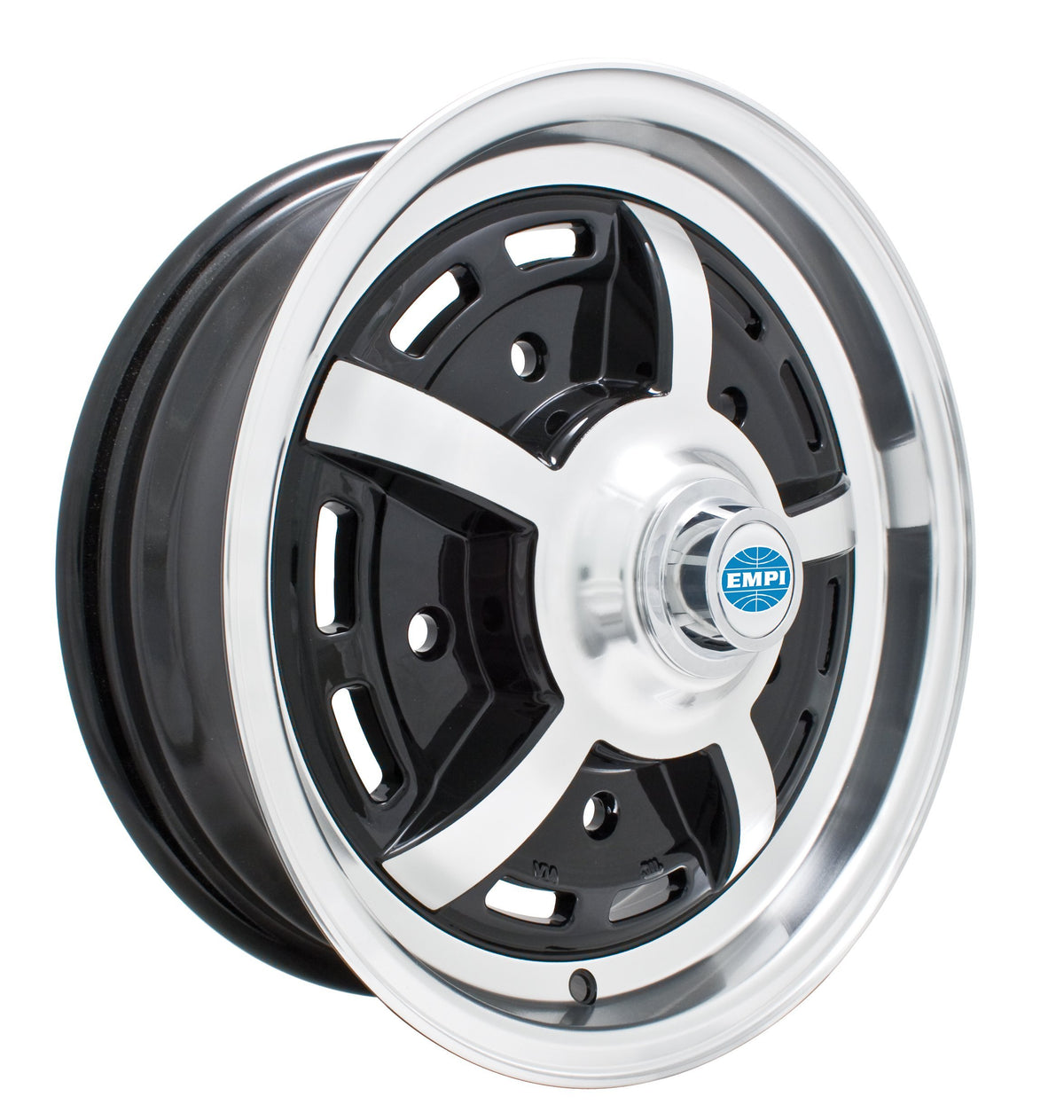

| 00-9689-0 | 15x5 | +20mm | 3-3/4" | Gloss black, polished lip & spokes | 16.35 lb |

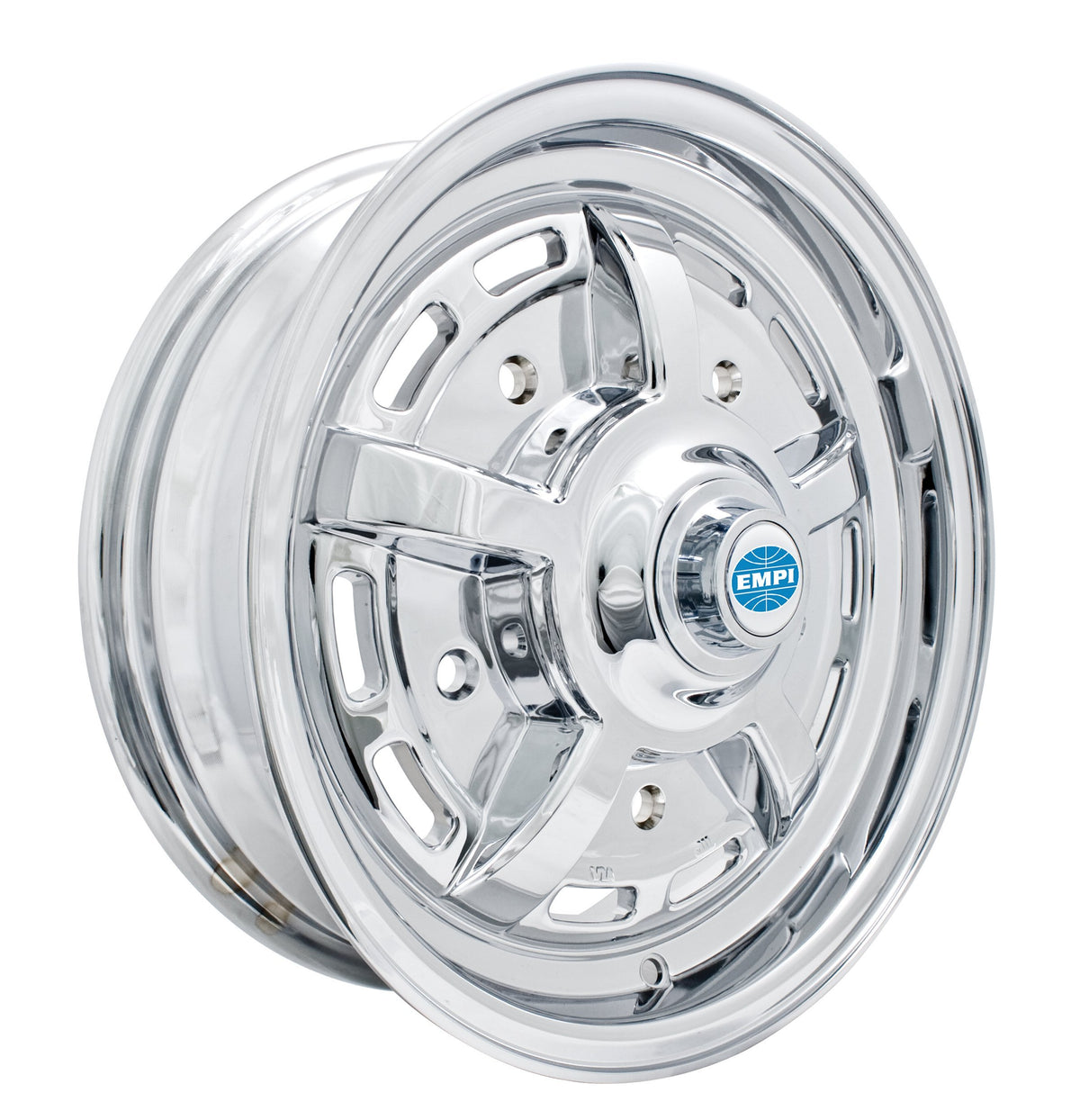

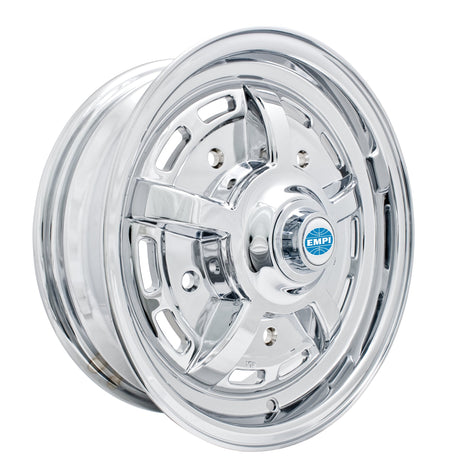

| 00-9725-0 | 15x5 | +20mm | 3-3/4" | All chrome | 17.85 lb |

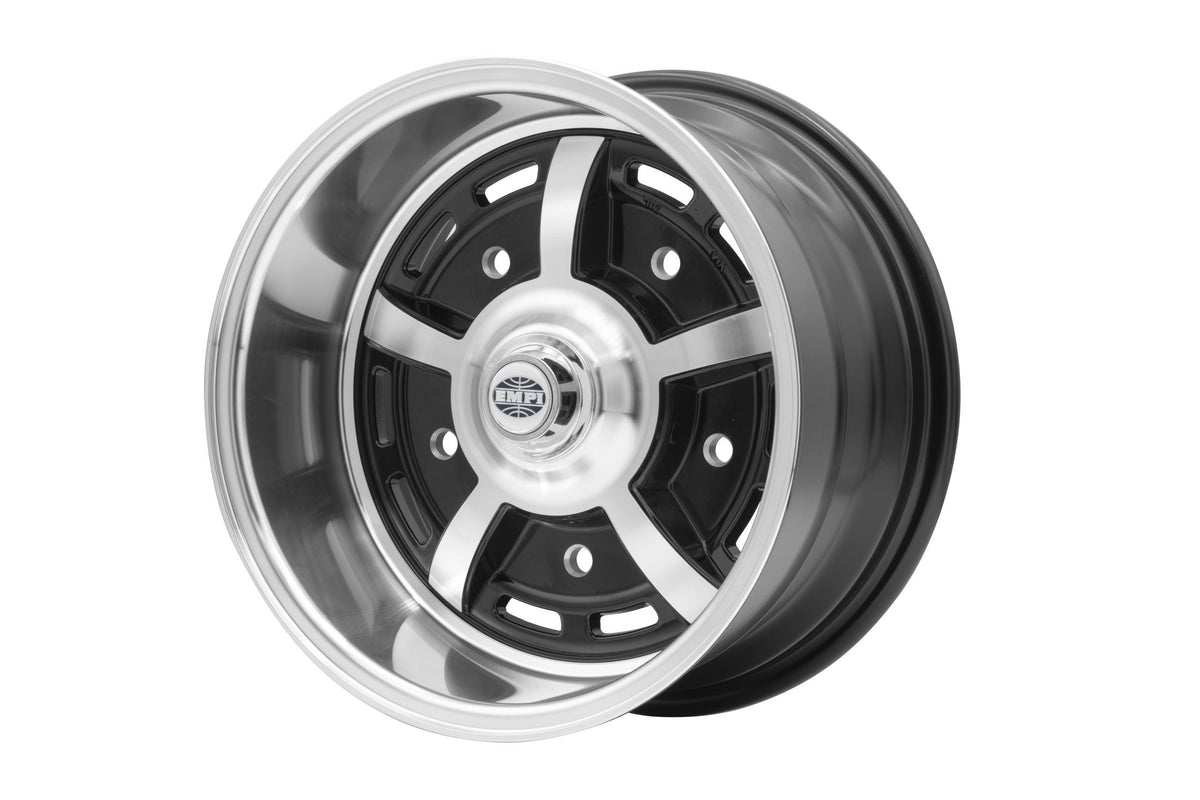

| 00-2321-0 | 15x8 | −18mm (negative) | 3-3/4" | Gloss black, polished lip & spokes | 20.7 lb |
- Bolt pattern: 5x205 (VW wide-5)
- Lug seat: 60° conical (taper) seat — not the ball (radius) seat used by stock VW steel wheels
- Lug thread: M12x1.5 lug bolts, 5 per wheel (20 for the set), on Beetle, Ghia, Type 3, Thing and buggies; the Bus uses M14x1.5
- Optional: 20 × M12x1.5 60° chrome lug bolts (KIT20-00-9711-0), + $89.95 in the Mounting Hardware option (not for Bus)
- Construction: Cast aluminum, 15" diameter
- Center bore: Not published by EMPI (hub-centering is by the 60° lug seats)
- Recommended tires: 15x5: 165R15 is the common front. 15x8 rear: tire size depends on your fenders — ask us before ordering.
- Sold as: Set of 4 wheels (shipped as 4 boxes, about 17 x 17 x 7–9.6 in each)
What's included / not included
- Included: 4 EMPI Sprintstar 5-spoke wheels in the configuration you choose, an EMPI center cap and a valve stem with each wheel. Lug bolts are included only if you choose them in the Mounting Hardware option.
- Not included: lug locks, tires, mounting and balancing.
Add mounting hardware
On a Beetle, Ghia, Type 3, Thing or buggy these wheels need 20 × M12x1.5 60° conical-seat lug bolts. Your stock ball-seat bolts will not work. Pick the bolts in the Mounting Hardware option above and they ship with your wheels:
| Mounting Hardware option | What it is | Price |
|---|---|---|
| No Hardware | Wheels only, for when you already have the correct 60° M12x1.5 bolts | + $0 |
| 60° Chrome Lug Bolts, Set of 20 (KIT20-00-9711-0) | 20 EMPI chrome M12x1.5 60° conical-seat lug bolts (4 × EMPI 00-9711-0), enough for all four wheels. See the kit | + $89.95 |
For theft protection, swap one bolt per wheel for EMPI 70-2706-0 12mm 60° wheel locks (set of 4 with key). On the 15x8 rear, confirm full thread engagement. EMPI lists the M12 kit for Beetle, Ghia, Type 3, Thing and buggy hubs. The M12 kit does not fit a Bus: the Split and 1968–1970 Bay Bus use M14x1.5 lug bolts — ask us for the correct Bus bolt. If you run spacers or adapters, use extended 60° bolts sized for the stack.
Why it matters — expert note
The 15x5 wheels (black 00-9689-0 and chrome 00-9725-0) share ET+20 and 3-3/4" backspacing, so they fit like a stock-width wheel. The 15x8 rear (00-2321-0) has a −18mm offset and EMPI says to check for clearance restrictions before installation — it is for buggies, Bajas and flared cars, not stock fenders. The staggered set is black/polished only; there is no chrome 15x8.
Install notes
- Test-fit one bare wheel on each axle before mounting tires: check brake drum/caliper clearance, the inner wheel well and the fender lip; on the 15x8 rear, check the tire sidewall against the fender lip and confirm the lug bolts have full thread engagement.
- Use only 60° conical lug bolts. Ball-seat bolts will not seat and can work loose.
- Tighten in a star pattern to the torque in your VW service manual or the lug maker's spec, and re-check after the first 25–50 miles — aluminum wheels settle.
Frequently Asked Questions
- Do 5-lug Sprintstars fit a 1965 VW Beetle? Yes. 1949–1967 Beetles are 5x205 wide-5, which this set matches.
- Is there a chrome staggered Sprintstar set? No. The 15x8 Sprintstar (EMPI 00-2321-0) comes only in gloss black with polished spokes and lip, so the staggered set is black/polished.
- Will the 15x8 fit under stock fenders? Usually not. It has a −18mm offset and EMPI says to check clearance before installation. It suits buggies, Bajas and flared cars.
- Do these wheels come with lug bolts? Not by default — choose "60° Chrome Lug Bolts, Set of 20 (KIT20-00-9711-0)" in the Mounting Hardware option (+$89.95) and you get all 20 M12x1.5 60° conical-seat bolts (4 × EMPI 00-9711-0) with your wheels. Each wheel already ships with a center cap and valve stem.
- Do these fit a 1973 VW Thing? Yes. The US 1973–74 Thing is 5x205. Check clearance if you choose the 15x8 rears.
- Can I buy just one wheel? Yes — EMPI 00-9689-0, 00-9725-0 and 00-2321-0 are sold individually in our store.
Need just one?
- EMPI Sprintstar 15x5 & 15x8 5x205 black (00-9689-0 / 00-2321-0), sold each
- EMPI Sprintstar 15x5 5x205 chrome (00-9725-0), sold each
