EMPI GT-5, 5-Rib & Corsa Wheel Center Cap with Stainless Hardware — Chrome or Black | VW 5-Lug (00-9709-0)
Couldn't load pickup availability
EMPI GT-5, 5-Rib & Corsa Wheel Center Cap with Stainless Hardware — Chrome or Black

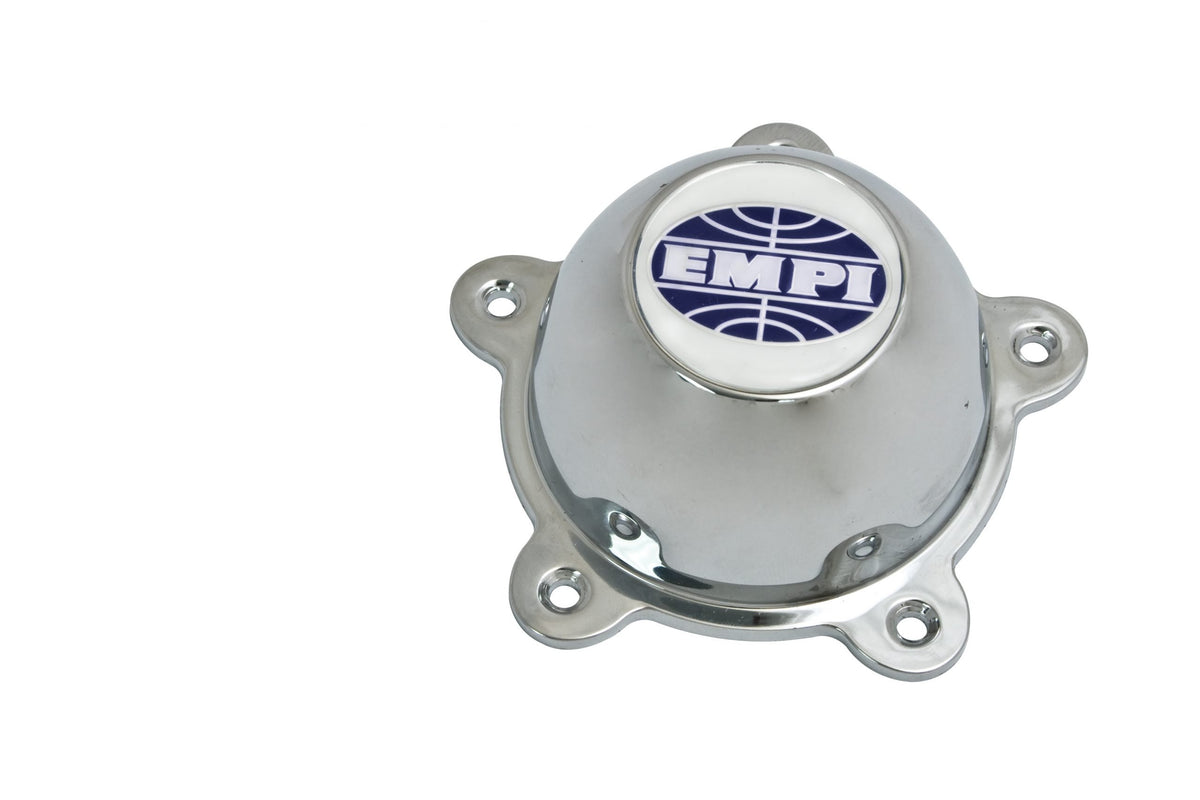

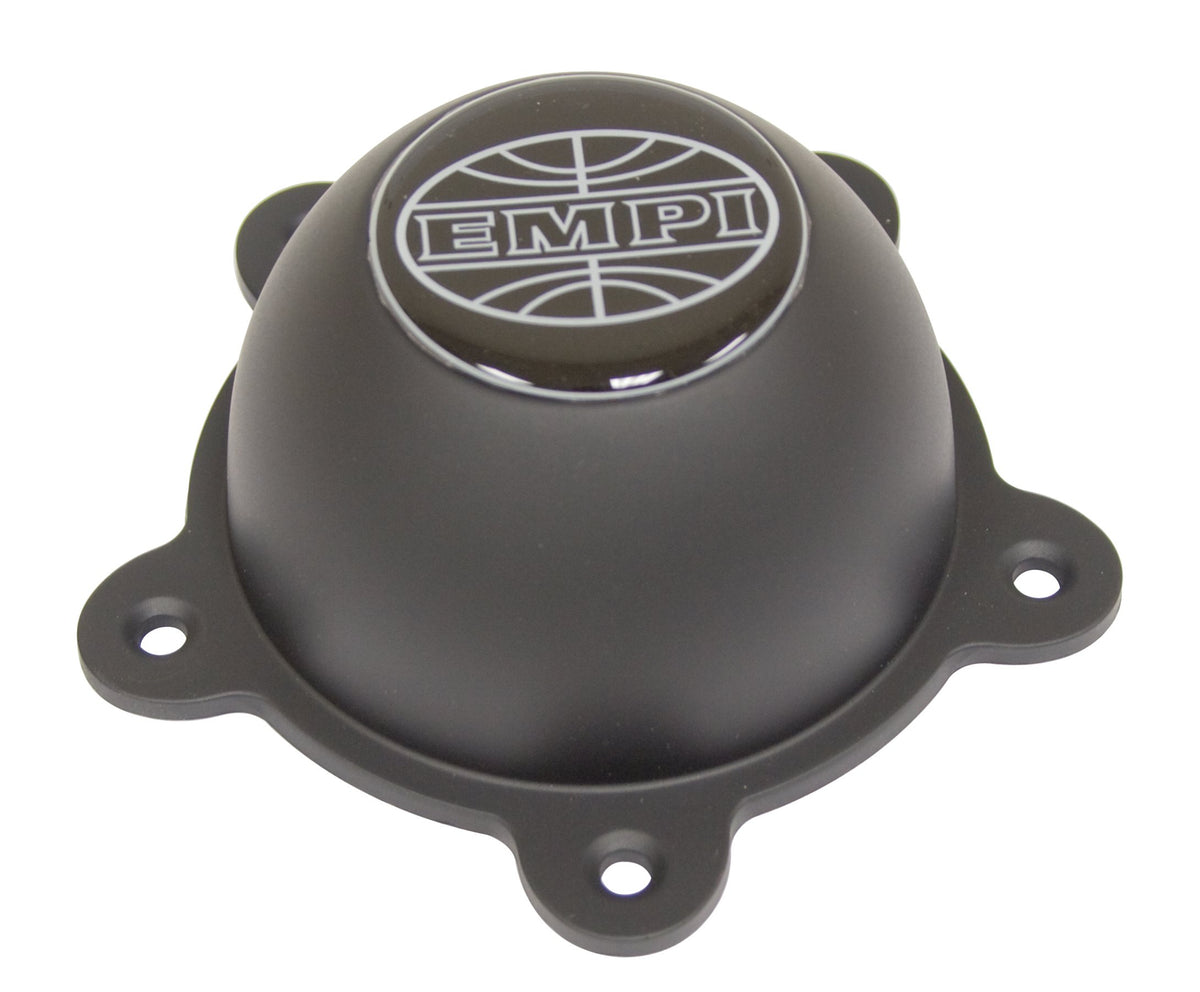

Short answer: Replacement center cap for EMPI GT-5, 5-Rib and Corsa wheels in the VW 5x205 pattern, for 1949–1967 Beetles, 1956–66 Ghias, 1961–65 Type 3s and 1950–70 Buses. Chrome-plated cap with EMPI logo (00-9709-0) or black with black logo (00-9641-0); stainless hardware included. Single cap or set of 4.
Part numbers: EMPI 00-9709-0 (0097090) chrome, 00-9641-0 (0096410) black. Set-of-4 SKUs add -X4. Spare stainless Allen bolts: 00-9698-0.
Which EMPI Center Cap Fits Your Wheel?
Find your wheel style (or the EMPI part number on your invoice or box) and order the cap in the same row.
| Your EMPI wheel | EMPI wheel part # | Cap to order | Listing |
|---|---|---|---|
| BRM (15" in 5x205, 4x130, 5x112; 17") | 00-9676-0, 00-9729-0, 00-9734-0, 00-9735-0; 00-9697-0*, 10-1121-0*, 10-1086-0* | 00-9705-0 low · 00-9715-0 chrome low · 00-9704-0 tall 1-1/4" | View caps |
| Sprintstar 5- and 8-spoke, 914 Alloy, Riviera | 00-9688-0, 00-9689-0, 00-9725-0, 00-2321-0, 00-2322-0, 00-9681-0 (914); 00-9732-0* | 00-9707-0 standard (5/8" inside height) · 10-1106-0 tall | View caps |
| GT-5, 5-Rib, Corsa | 00-9686-0, 00-9687-0, 00-9690-0, 00-9691-0, 00-9750-0 | 00-9709-0 chrome · 00-9641-0 black (hardware included; spare bolts 00-9698-0) | This listing |
| GT-8 (4x130) | 00-9682-0, 00-9683-0, 00-9684-0, 00-9685-0 | 00-9708-0 chrome | View caps |
| GTV II classic mag | 10-1125-0, 10-1126-0 | 10-1127-0 silver · 10-1129-0 black | View caps |
| 911 Alloy (Fuchs-style) and Gasser | 00-9677-0 to 00-9680-0, 00-9694-0, 00-9726-0 to 00-9728-0, 10-1102-0, 10-1103-0; 10-1108-0 to 10-1111-0* | 00-9718-0 chrome (standard) | View caps |
| 911 Alloy / Gasser, extended look | same wheels as above | 10-1107-0 billet extended caps, pair | View caps |
| Raider 15" | 10-1081-0*, 10-1082-0*, 10-1084-0*, 10-1100-0*, 10-1101-0* | 00-9721-0 chrome · 00-9642-0 black | View caps |
| Raider 17" | ask us with your wheel number | 10-1095-0 chrome | View caps |
| EMPI Dish (and original Torque Star) | 00-9747-0, 00-9748-0, 00-9749-0 | 00-9720-0 chrome | View caps |
| Earlier EMPI 8-spoke wheels coded "AE" or "RK" | by wheel code | 00-9567-0 black (AE & RK) · 00-9674-0 chrome logo (AE only) | View caps |
| Earlier EMPI Smoothie, 4-Spoke, Cosmo / Rebel wheels | by wheel style | 10-1099-0 · 10-1096-0 · 10-1097-0 | EMPI Smoothie / Cosmo caps — ask us |
| 5-lug (5x205) steel wheels | see listing | 00-9623-0 chrome steel pair · 18-1115-0 polished aluminum pair | View caps |
| 4-lug (4x130) steel wheels | see listing | 10-1062-0 chrome, each | View caps |
* Wheel family identified from EMPI's catalog title; confirming with EMPI. If your wheel number is not shown or you are unsure, send us a photo of the wheel and the old cap before you order.
Vehicle Fitment
| Years | Vehicle | Notes |
|---|---|---|
| 1949–1967 | VW Beetle | Running EMPI GT-5 / 5-Rib wheels in 5x205 (5-lug 5x205 hubs) |
| 1956–1966 | VW Karmann Ghia | Running EMPI GT-5 / 5-Rib wheels in 5x205 (5-lug). The 1967 Ghia is 4x130. |
| 1961–1965 | VW Type 3 | Running EMPI GT-5 / 5-Rib wheels in 5x205 (5-lug) |
| 1950–1970 | VW Bus (Type 2) | Running EMPI GT-5 / 5-Rib wheels in 5x205 (5x205 hubs) |
| — | Does not fit: 4-lug and 5x112 wheels | EMPI GT-5 and 5-Rib wheels are 5x205; GT-8 (4-lug) uses cap 00-9708-0. |
| — | Does not fit: Stock VW steel wheels | Use a hubcap instead. |
Specifications
| Part # | Finish | Logo | Hardware | Weight | Made in |
|---|---|---|---|---|---|
| 00-9709-0 | Chrome-plated plastic | EMPI logo | Stainless hardware included | 0.2 lb | CN |
| 00-9641-0 | Black | Black EMPI logo | Stainless hardware included | 0.2 lb | CN |
What's Included
- One cap (Single) or four caps (Set of 4).
- Stainless steel mounting hardware (EMPI lists the cap "with S/S hardware").
- Spare stainless Allen bolts are sold separately as EMPI 00-9698-0, pack of 5.
Why It Matters
Unlike push-on caps, the GT-5/5-Rib cap is held on with small stainless Allen bolts. If one of your bolts is missing, order a pack of 00-9698-0 with the cap.
The black 00-9641-0 suits black or anthracite wheels, or a stealth look on polished wheels; the chrome 00-9709-0 is the factory-look match.
Install Notes
- Clean the cap seat and bolt holes.
- Start every bolt by hand before snugging any of them, so the cap sits flat.
- Tighten the bolts gently and evenly. EMPI does not publish a torque value; over-tightening can crack the cap.
- Keep a spare pack of 00-9698-0 bolts in the glovebox.
Frequently Asked Questions
- Which cap fits an EMPI GT-5 wheel? EMPI 00-9709-0 (chrome with EMPI logo) or 00-9641-0 (black with black logo). The same cap fits EMPI 5-Rib and Corsa wheels.
- Do GT-5 center caps come with hardware? Yes. EMPI supplies these caps with stainless hardware. Spare stainless Allen bolts are EMPI 00-9698-0 (pack of 5).
- Does this cap fit the GT-8 wheel? No. The 4-lug GT-8 uses its own cap, EMPI 00-9708-0.
- Can I buy a set of four? Yes. Choose "Set of 4" in the Quantity option to get four caps (SKU 00-9709-0-X4) for 10% less than buying four singles.
- Are you an authorized EMPI dealer? Yes. Washburn's Metal is an authorized EMPI dealer, so this is genuine EMPI stock shipped from our Orange, California shop.
