EMPI Sprintstar, 914 Alloy & Riviera Wheel Center Cap — Chrome EMPI Logo, Standard or Tall | Air-Cooled VW (00-9707-0)
Couldn't load pickup availability
EMPI Sprintstar, 914 Alloy & Riviera Wheel Center Cap — Chrome EMPI Logo, Standard or Tall
Short answer: Replacement chrome center caps for EMPI Sprintstar (5- and 8-spoke), 914 Alloy and Riviera wheels. The standard 00-9707-0 is the push-on chrome-plated cap with retaining ring that EMPI packs with the wheel (5/8" inside height); the tall 10-1106-0 gives extra room behind the cap. Both carry the EMPI logo. Single cap or set of 4.
Part numbers: EMPI 00-9707-0 (0097070) standard, 10-1106-0 (1011060) tall. Set-of-4 SKUs add -X4.
Which EMPI Center Cap Fits Your Wheel?
Find your wheel style (or the EMPI part number on your invoice or box) and order the cap in the same row.
| Your EMPI wheel | EMPI wheel part # | Cap to order | Listing |
|---|---|---|---|
| BRM (15" in 5x205, 4x130, 5x112; 17") | 00-9676-0, 00-9729-0, 00-9734-0, 00-9735-0; 00-9697-0*, 10-1121-0*, 10-1086-0* | 00-9705-0 low · 00-9715-0 chrome low · 00-9704-0 tall 1-1/4" | View caps |
| Sprintstar 5- and 8-spoke, 914 Alloy, Riviera | 00-9688-0, 00-9689-0, 00-9725-0, 00-2321-0, 00-2322-0, 00-9681-0 (914); 00-9732-0* | 00-9707-0 standard (5/8" inside height) · 10-1106-0 tall | This listing |
| GT-5, 5-Rib, Corsa | 00-9686-0, 00-9687-0, 00-9690-0, 00-9691-0, 00-9750-0 | 00-9709-0 chrome · 00-9641-0 black (screws included; spare screws 00-9698-0) | View caps |
| GT-8 (4x130) | 00-9682-0, 00-9683-0, 00-9684-0, 00-9685-0 | 00-9708-0 chrome | View caps |
| GTV II classic mag | 10-1125-0, 10-1126-0 | 10-1127-0 silver · 10-1129-0 black | View caps |
| 911 Alloy (Fuchs-style) and Gasser | 00-9677-0 to 00-9680-0, 00-9694-0, 00-9726-0 to 00-9728-0, 10-1102-0, 10-1103-0; 10-1108-0 to 10-1111-0* | 00-9718-0 chrome (standard) | View caps |
| 911 Alloy / Gasser, extended look | same wheels as above | 10-1107-0 billet extended caps, pair | View caps |
| Raider 15" | 10-1081-0*, 10-1082-0*, 10-1084-0*, 10-1100-0*, 10-1101-0* | 00-9721-0 chrome · 00-9642-0 black | View caps |
| Raider 17" | ask us with your wheel number | 10-1095-0 chrome | View caps |
| EMPI Dish (and original Torque Star) | 00-9747-0, 00-9748-0, 00-9749-0 | 00-9720-0 chrome | View caps |
| Earlier EMPI 8-spoke wheels coded "AE" or "RK" | by wheel code | 00-9567-0 black (AE & RK) · 00-9674-0 chrome logo (AE only) | View caps |
| Earlier EMPI Smoothie, 4-Spoke, Cosmo / Rebel wheels | by wheel style | 10-1099-0 · 10-1096-0 · 10-1097-0 | EMPI Smoothie / Cosmo caps — ask us |
| 5-lug (5x205) steel wheels | see listing | 00-9623-0 chrome steel pair · 18-1115-0 polished aluminum pair | View caps |
| 4-lug (4x130) steel wheels | see listing | 10-1062-0 chrome, each | View caps |
* Wheel family identified from EMPI's catalog title; confirming with EMPI. If your wheel number is not shown or you are unsure, send us a photo of the wheel and the old cap before you order.
Vehicle Fitment
| Years | Vehicle | Notes |
|---|---|---|
| 1949–1967 | VW Beetle | Running EMPI Sprintstar / 914 wheels in 5x205 (5-lug 5x205 hubs) |
| 1956–1966 | VW Karmann Ghia | Running EMPI Sprintstar / 914 wheels in 5x205 (5-lug) |
| 1961–1965 | VW Type 3 | Running EMPI Sprintstar / 914 wheels in 5x205 (5-lug) |
| 1950–1970 | VW Bus (Type 2) | Running EMPI Sprintstar / 914 wheels in 5x205 (5x205 hubs) |
| 1968–1979 | VW Beetle & Super Beetle | Running EMPI Sprintstar / 914 wheels in 4x130 (4-lug 4x130 hubs) |
| 1967–1974 | VW Karmann Ghia | Running EMPI Sprintstar / 914 wheels in 4x130 (4-lug) |
| 1966–1973 | VW Type 3 | Running EMPI Sprintstar / 914 wheels in 4x130 (4-lug) |
| 1973–1974 | VW Thing (181) | Running EMPI Sprintstar / 914 wheels in 4x130 (4-lug) |
| — | Does not fit: BRM, GT-5, GT-8, 911 Alloy wheels | Different caps — see the table above. |
| — | Does not fit: Stock VW steel wheels | Use a hubcap instead. |
Specifications
| Part # | Height | Construction | Logo | Weight | Made in |
|---|---|---|---|---|---|
| 00-9707-0 | Standard; 5/8" inside height | Push-on, chrome-plated plastic with retaining ring | EMPI | 0.1 lb | MX |
| 10-1106-0 | Tall (height not published by EMPI) | Chrome-plated plastic | EMPI | 0.1 lb | CN |
What's Included
- One cap (Single) or four matching caps (Set of 4).
- 00-9707-0 includes its retaining ring.
- Cap only: no wheel, lug bolts or valve stem.
Why It Matters

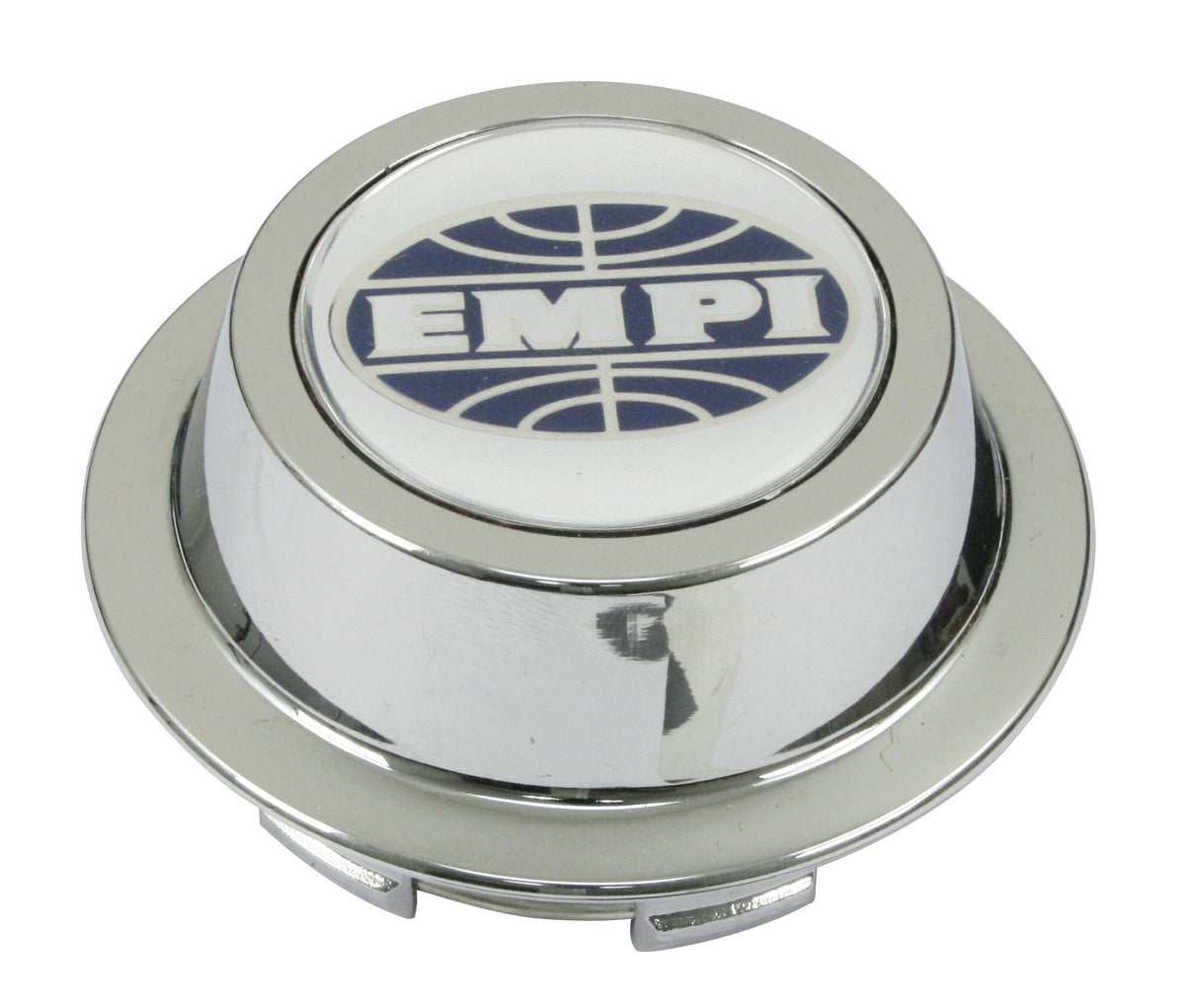

EMPI describes 00-9707-0 as the standard cap packaged with the wheel, so for Sprintstar and 914 Alloy owners it is the direct replacement for a lost, cracked or faded cap. Matching a full set of four caps makes a mixed set of wheels look new again.

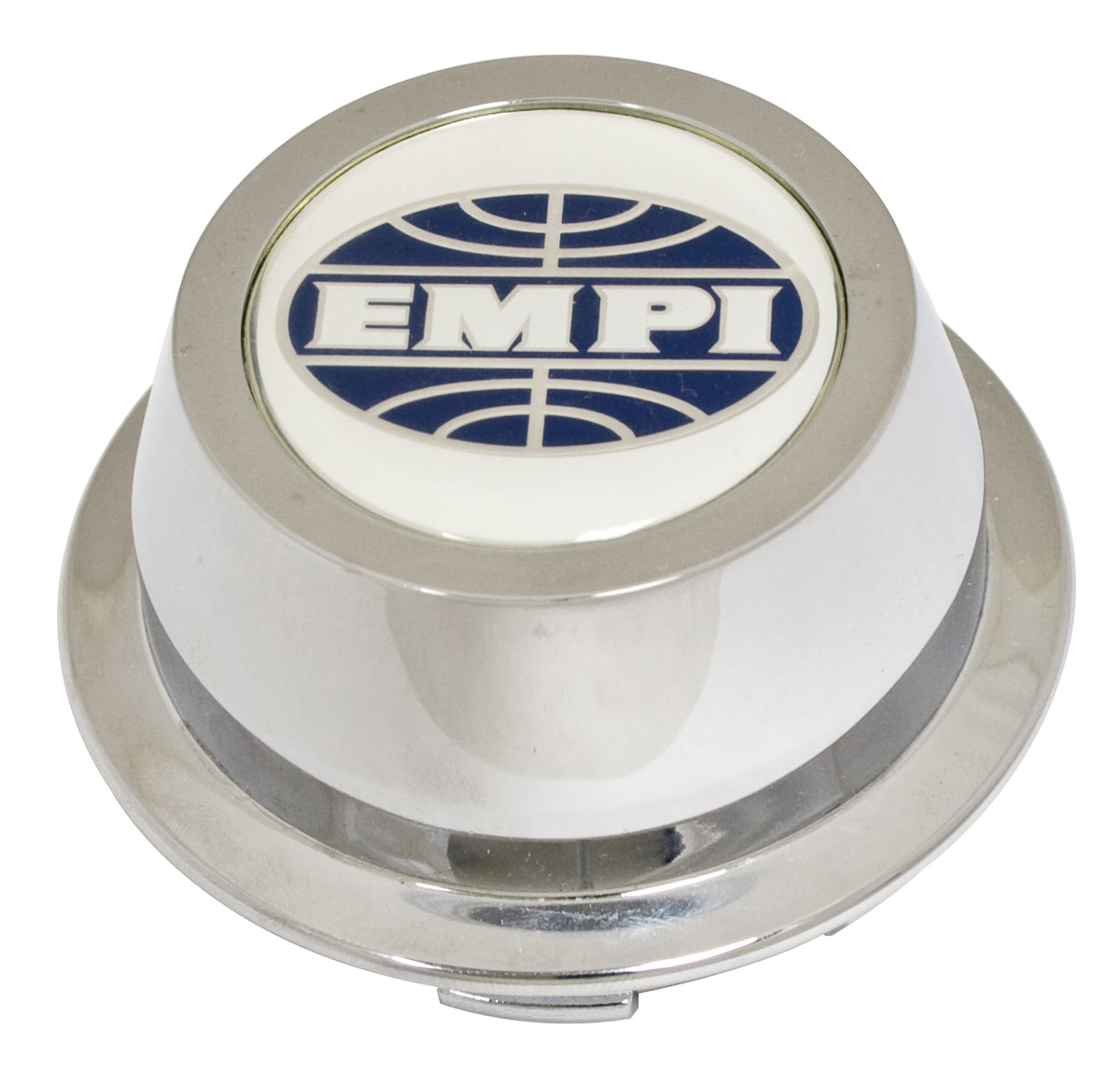

The tall 10-1106-0 is the cap to use where the standard cap sits too close to the hub, axle nut or grease cap. It is the same EMPI logo look with more depth behind it.
Install Notes
- Clean the wheel's center bore so the cap's retaining ring or clips seat evenly.
- Line the cap up square to the bore and press it in by hand with even pressure around the edge. Do not hammer a plastic cap.
- To remove, work it out evenly from the back side of the wheel or with a plastic trim tool wrapped in a rag. Prying on one edge can crack the cap or mark the wheel.
- Check that the cap clears the axle nut, grease cap or spindle before you drive. If it touches, you need a taller cap (where EMPI offers one) — see the table above.
Frequently Asked Questions
- What center cap comes on an EMPI Sprintstar wheel? EMPI packs the 00-9707-0 push-on chrome cap with ring (5/8" inside height) with the wheel. This listing sells that exact cap.
- Does the same cap fit the EMPI 914 Alloy wheel? Yes. EMPI lists the Sprintstar, Riviera and 914 Alloy wheels together for these caps.
- When do I need the tall Sprintstar cap? Choose the tall 10-1106-0 if the standard cap touches the hub, axle nut or grease cap on your car.
- Can I buy a set of four? Yes. Choose "Set of 4" in the Quantity option to get four caps (SKU 00-9707-0-X4) for 10% less than buying four singles.
- Are you an authorized EMPI dealer? Yes. Washburn's Metal is an authorized EMPI dealer, so this is genuine EMPI stock shipped from our Orange, California shop.
