Mobelwagen 520 Interceptor (Vintage 190) Wheel, Polished 15x5.5, 5x205 | VW Beetle 1949–1967 & 356 (MW-520P-55520-20)
Couldn't load pickup availability

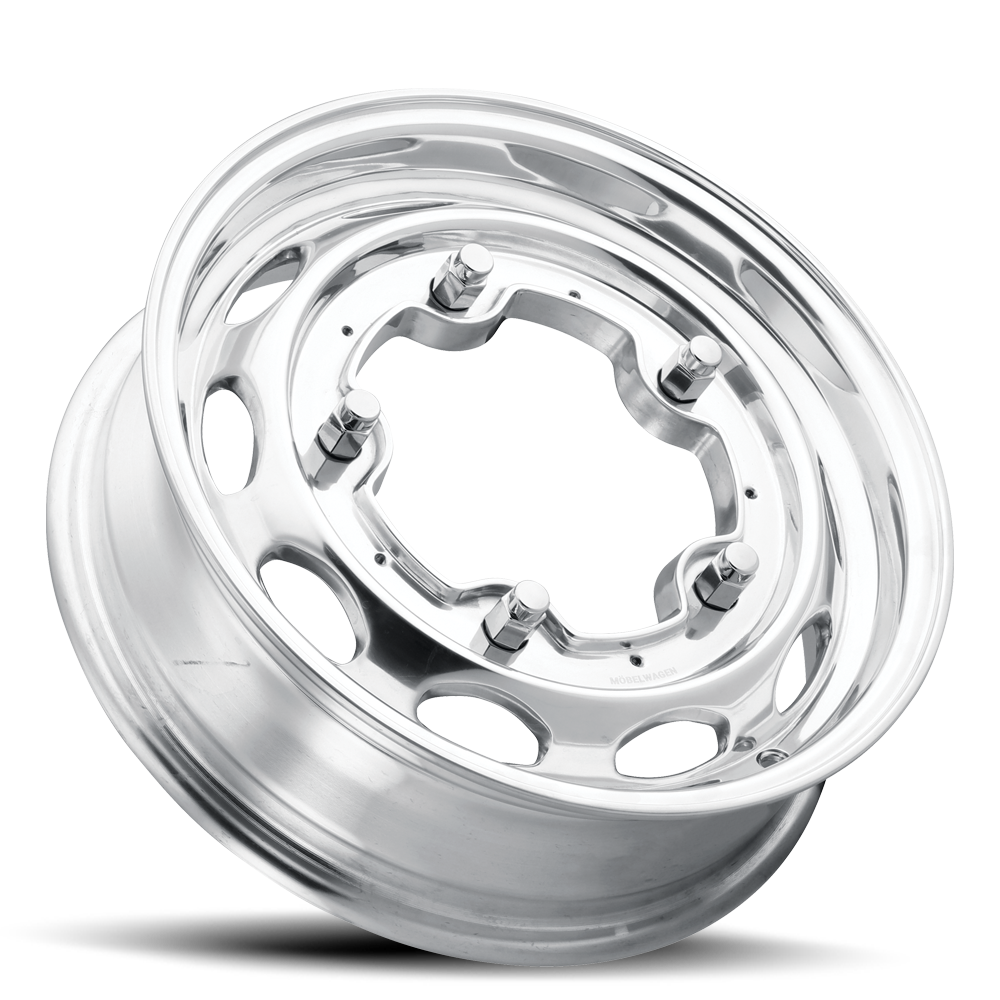

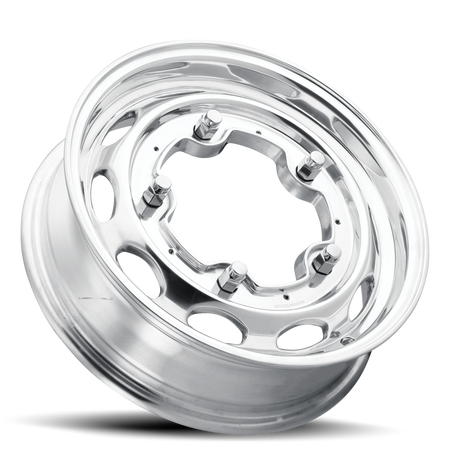

Mobelwagen 520 Interceptor (Vintage 190) Wheel — Polished, 15x5.5, 5x205
Short answer: This is the polished Mobelwagen 520 Interceptor in 15x5.5 +20mm (about 4.04 in backspacing), drilled 5x205 for 1949–1967 VW Beetle, 1956–1966 Karmann Ghia, 1950–1970 Bus, 1961–1965 Type 3, 1973–1974 Thing and the Porsche 356. It is the same 10-window A356 cast aluminum wheel EMPI sells as the Vintage 190, in the one size and finish EMPI does not stock. It uses ball-seat, OE-style hardware and takes VW moon hub caps on the clips supplied.
Availability: Special order — ships from our Mobelwagen distributor; we confirm the ship date after you order. These wheels are not stocked on our shelf; every order is placed with the distributor after you check out.
Part numbers: Mobelwagen MW-520P-55520-20 (also printed MW-520P-55520+20). Sibling sizes: Vintage 190 10-1171-0 (silver 15x5.5), 10-1172-0 (polished 15x4.5), 10-1174-0 / 10-1175-0 (black).
Pair it with the polished 15x4.5 Vintage 190 (10-1172-0) up front for a staggered polished set, or run four for a square set.
Vehicle Fitment
| Years | Vehicle | Notes |
|---|---|---|
| 1949–1967 | VW Beetle | 5x205 (wide-five) |
| 1956–1966 | VW Karmann Ghia | 5x205 |
| 1950–1970 | VW Bus (Type 2) | 5x205 — check load rating (1,180 lb per wheel) for a loaded Bus |
| 1961–1965 | VW Type 3 | 5x205 |
| 1973–1974 | VW Thing (Type 181) | 5x205 |
| 1956–1963 | Porsche 356A / 356B | 5x205 — dealer lists 356 applications; test-fit |
| 1968–1979 | VW Beetle / Super Beetle | Does not fit — 4x130 |
| 1971–1979 | VW Bay Window Bus | Does not fit — 5x112 |
| 1964–1965 | Porsche 356C / SC | Does not fit — 5x130 discs |
Specifications
| Part # | Finish | Size | Offset (ET) | Backspacing | Center bore | Load rating |
|---|---|---|---|---|---|---|
| MW-520P-55520-20 | Polished | 15x5.5 | +20mm | 4.04 in | 156mm | 1,180 lb |
- Material: A356 cast aluminum, classic 10-window heritage design, laser-engraved Mobelwagen logo (PMB Performance).
- Lug seat: ball seat, OE style (dealer: must use).
- Hubcaps: bolt-on clips for moon-style hub caps; hub caps not included.
- Drums: our Vintage 190 listings note 1966 and later OEM drums bolt on and pre-1966 drums need a 5mm spacer; ask us about your drums.
What's Included
- Single wheel, or four wheels with the Set of 4 option
- Bolt-on hub cap clips (per dealer)
Not Included
- Hub caps, tires, valve stems and lug bolts
Why It Matters
The 520 is a ball-seat wheel, so the stock-shape VW bolt works, but an alloy wheel is thicker than a steel wheel: use the longer 20mm ball-seat bolt (EMPI 00-9565-0 on a Beetle, Ghia, Type 3 or Thing) rather than the 15mm steel-wheel length.
Install Notes
- Confirm a 5x205 pattern.
- Check your drums: pre-1966 drums need a 5mm spacer per the Vintage 190 spec.
- Test-fit front and rear before mounting tires; torque in a star pattern and re-check after the first 50 miles.
Frequently Asked Questions
- Is this wheel in stock? Special order — ships from our Mobelwagen distributor; we confirm the ship date after you order. It is not on our shelf, so we order it from the distributor after you check out and email you the ship date.
- Is this the same wheel as the EMPI Vintage 190? Yes. EMPI sells the Mobelwagen 520 Interceptor as the Vintage 190; this polished 15x5.5 is the size EMPI does not stock.
- What lug bolts does it need? Ball-seat, OE-style hardware: M12x1.5 x 20mm (EMPI 00-9565-0) on a Beetle, Ghia, Type 3 or Thing; a 1950–1970 Bus takes M14x1.5 ball-seat bolts.
- Will it fit my drums? Our Vintage 190 spec says 1966 and later OEM drums bolt on and pre-1966 drums need a 5mm spacer. Ask us if you are unsure which drums you have.
- Does it include a hubcap? No. It comes with clips for moon-style VW hub caps; the caps are sold separately.
- Can I buy a set of 4? Yes. Choose "Set of 4" in the Quantity option. Orders of $250 or more ship free in the Lower 48, so a set ships free; orders under $250 pay shipping at checkout.
Explore Related Categories
Wheels, Tires & Lug Hardware · Vintage 190 polished 15x4.5 (10-1172-0) · Vintage 190 silver 15x5.5 (10-1171-0) · EMPI chrome ball-seat lug bolts (00-9565-0 M12x1.5 / 00-9568-0 M14x1.5) · EMPI Smoothie hubcaps
Prop 65 Warning
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Fitment & Hardware
- Bolt pattern: 5x205 (VW wide-five) — see all 5x205 wheels
- Lug hardware: M12x1.5 ball-seat lug bolts, 5 per wheel, on Beetle, Ghia, Type 3 and 1973–74 Thing — EMPI chrome ball-seat lug bolts (00-9565-0 M12x1.5 / 00-9568-0 M14x1.5); a 1950–70 Bus takes M14x1.5 ball-seat bolts.
- Not sure it fits? See the VW wheel fitment guide or call (657) 438-7002, weekdays 8–5 Pacific.
- Compare wheel styles in The Wheel Book
